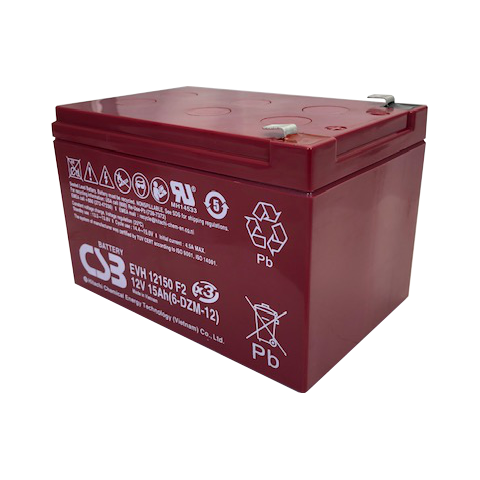

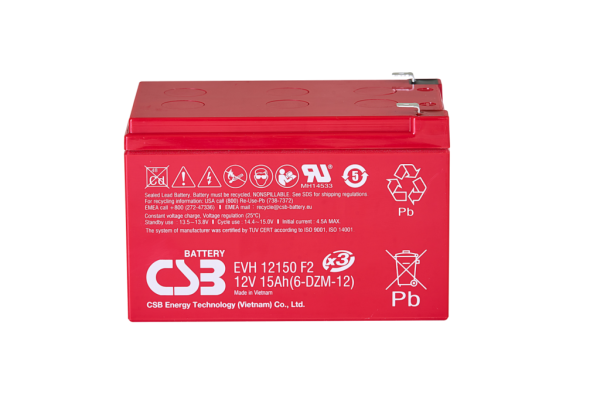

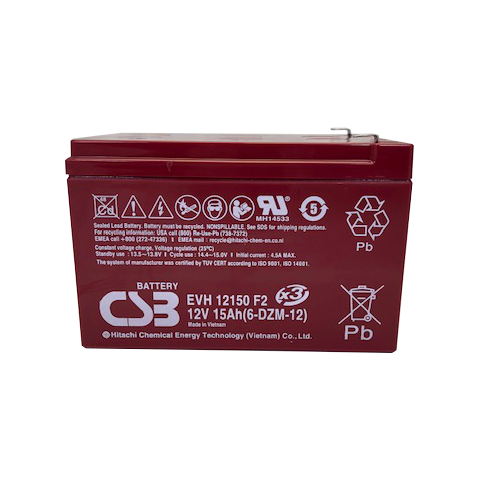

CSB EVH12150F2 SLA (AGM) Battery
As low as $42.25 each
CSB EVH12150F2 EVH Series 12 Volt / 15 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case
Loading...
Description
CSB EVH12150F2 EVH Series 12 Volt / 15 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-EVH12150F2 |
| Dimensions | 5.94″ (L) x 3.86″ (W) x 3.86″ (H) |
| Dimensions (mm) | 151 mm (L) x 98 mm (W) x 98 mm (H) |
| Weight | 10.1 lbs (4.6 kgs) |
Additional information
| Weight | 10.1 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Box/Case (4 pieces), Pallet Layer (20 pieces), Pallet (240 pieces) |
| Product Line | |
| Product Series | EVH Series |
| Model | EVH12150 |

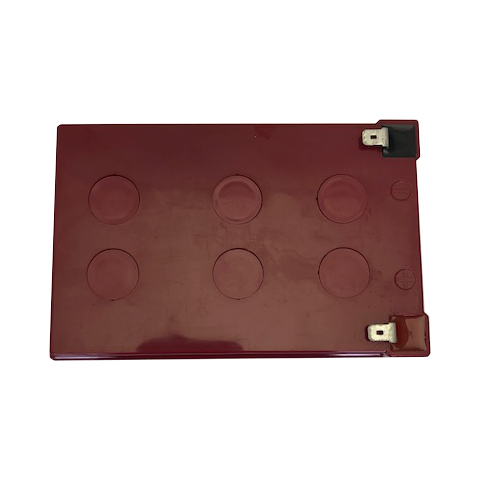

| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | EVH12150F2 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 15 Ah @20 Hr |
| Capacity @20 Hr | 15 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 5.94 |
| Width (In) | 3.86 |
| Height - Case (In) | 3.86 |
| Height - Overall (In) | 4.02 |
| Length (mm) | 151 |
| Width (mm) | 98 |
| Height - Case (mm) | 98 |
| Height - Overall (mm) | 102 |
| Weight (lb) | 10.1 |
| Weight (kg) | 4.6 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
