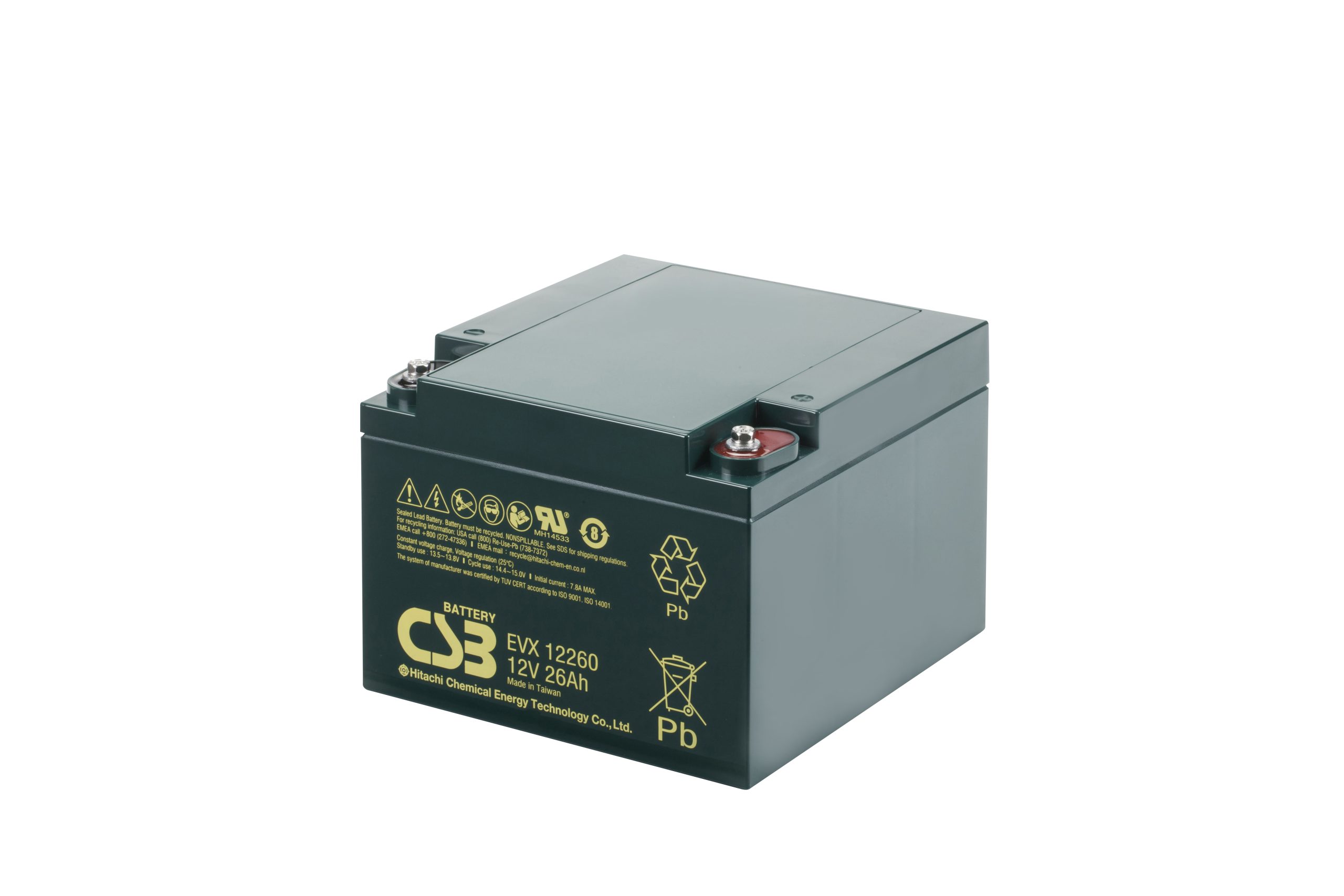

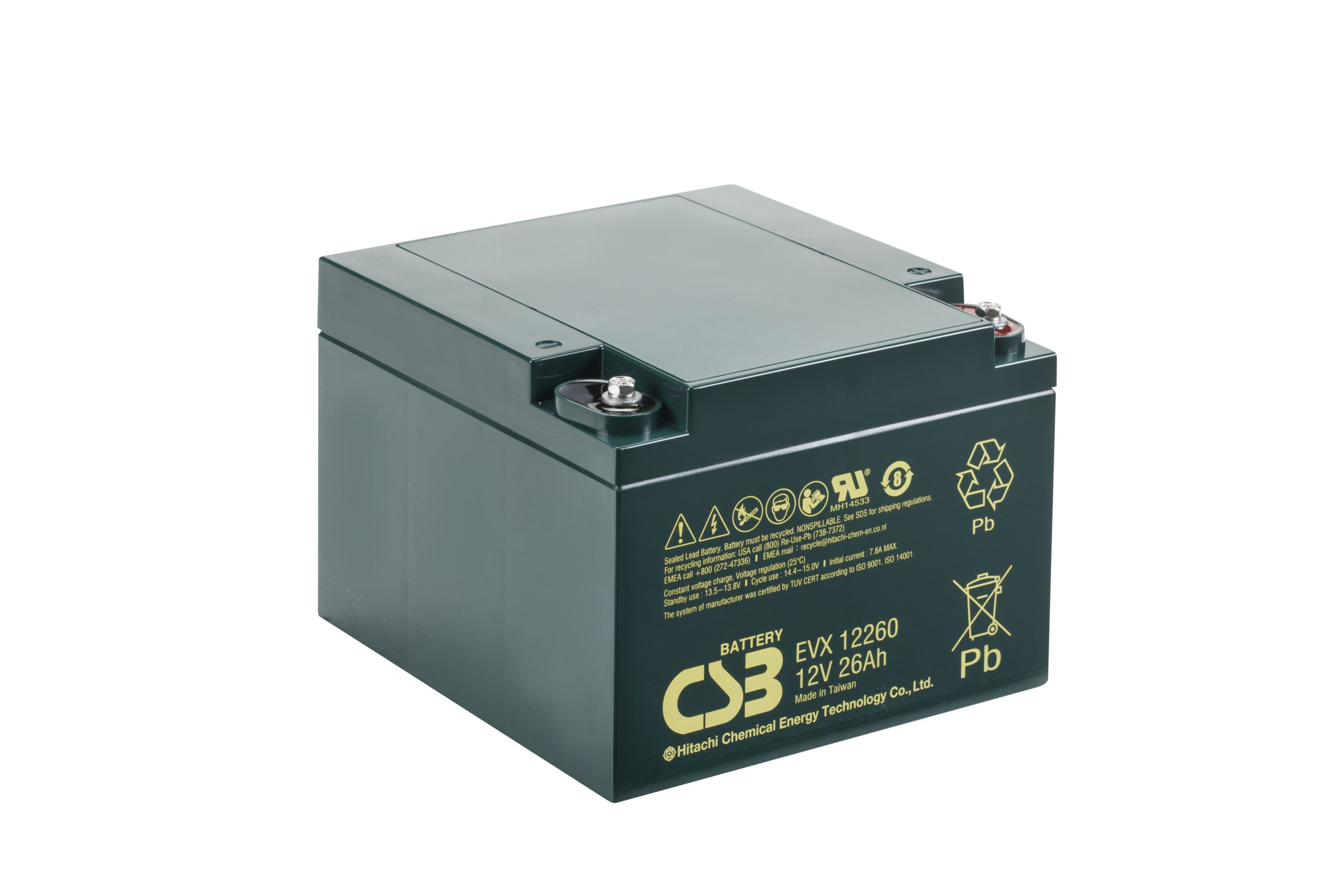

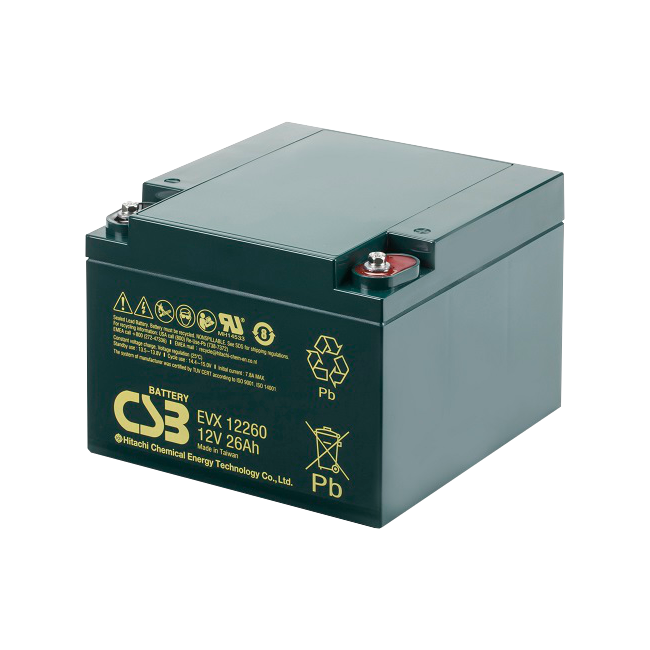

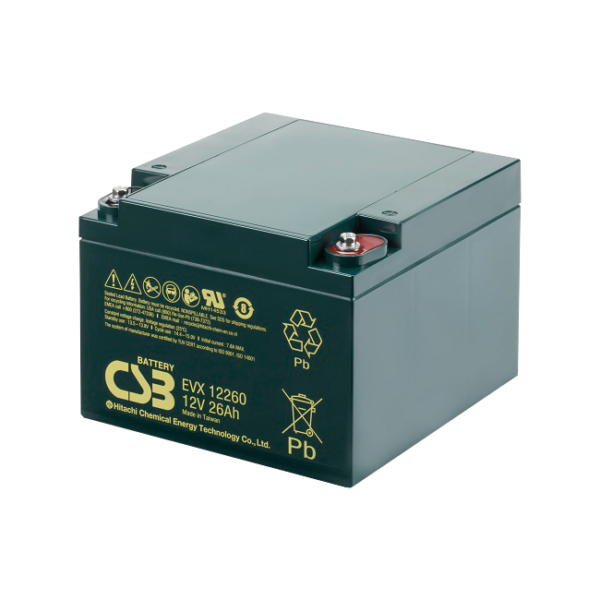

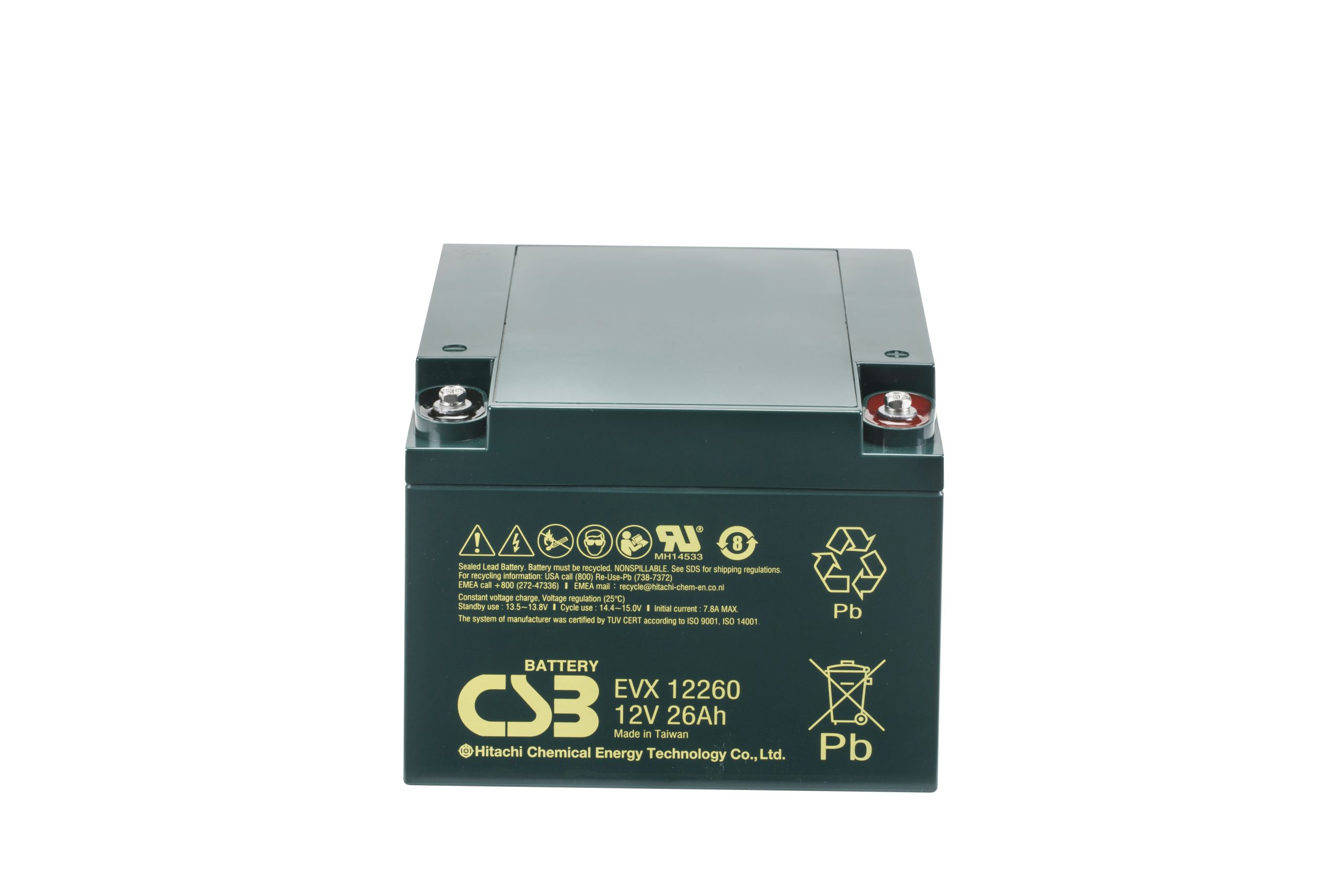

CSB EVX12260 SLA (AGM) Battery

As low as $61.75 each

CSB EVX12260 EVX Series 12 Volt / 26 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

price-discounts

Each (1 pieces) - $87.48 each

Box/Case (2 pieces) - $77.19 each

Pallet Layer (30 pieces) - $64.33 each

Pallet (90 pieces) - $61.75 each

Description

CSB EVX12260 EVX Series 12 Volt / 26 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Weight	19 lbs
Manufacturer	CSB
price-discounts	Each (1 pieces), Box/Case (2 pieces), Pallet Layer (30 pieces), Pallet (90 pieces)
Product Line
Product Series	EVX Series
Model	EVX12260
Terminal	Recessed
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	EVX12260
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	26 Ah @20 Hr
Capacity @20 Hr	26
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.4 to 15.0 VDC
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	6.54
Width (In)	6.89
Height - Case (In)	4.92
Height - Overall (In)	4.92
Length (mm)	166
Width (mm)	175
Height - Case (mm)	125
Height - Overall (mm)	125
Weight (lb)	19.0
Weight (kg)	8.65
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
