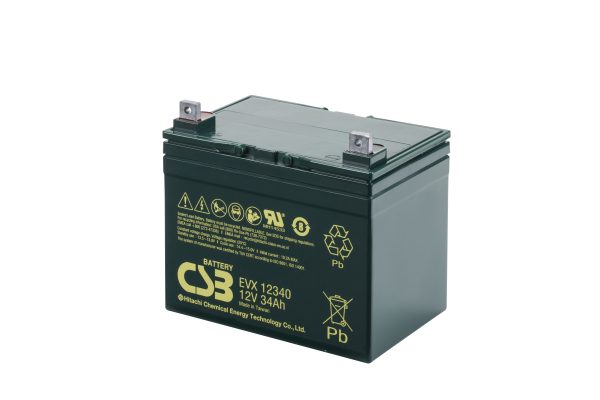

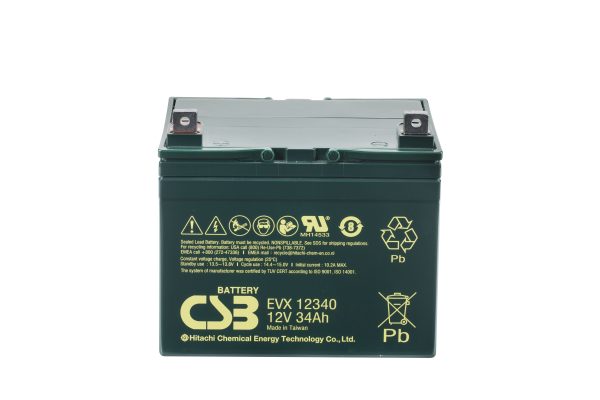

CSB EVX12340NB SLA (AGM) Battery
As low as $67.68 each
CSB EVX12340NB EVX Series 12 Volt / 34 Ah @20 Hr with Nut & Bolt Terminals and ABS Plastic Case
Loading...
Description
CSB EVX12340NB EVX Series 12 Volt / 34 Ah @20 Hr with Nut & Bolt Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-EVX12340NB |
| Dimensions | 7.72″ (L) x 5.12″ (W) x 6.10″ (H) |
| Dimensions (mm) | 196 mm (L) x 130 mm (W) x 155 mm (H) |
| Weight | 23.7 lbs (10.77 kgs) |
Additional information
| Weight | 23.7 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Pallet Layer (30 pieces), Pallet (90 pieces) |
| Product Line | |
| Product Series | EVX Series |
| Model | EVX12340 |
| Terminal | Nut & Bolt |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | EVX12340NB |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 34 Ah @20 Hr |
| Capacity @20 Hr | 34 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 7.72 |
| Width (In) | 5.12 |
| Height - Case (In) | 6.10 |
| Height - Overall (In) | 7.01 |
| Length (mm) | 196 |
| Width (mm) | 130 |
| Height - Case (mm) | 155 |
| Height - Overall (mm) | 178 |
| Weight (lb) | 23.7 |
| Weight (kg) | 10.77 |
| BCI Group | Group U1 |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
