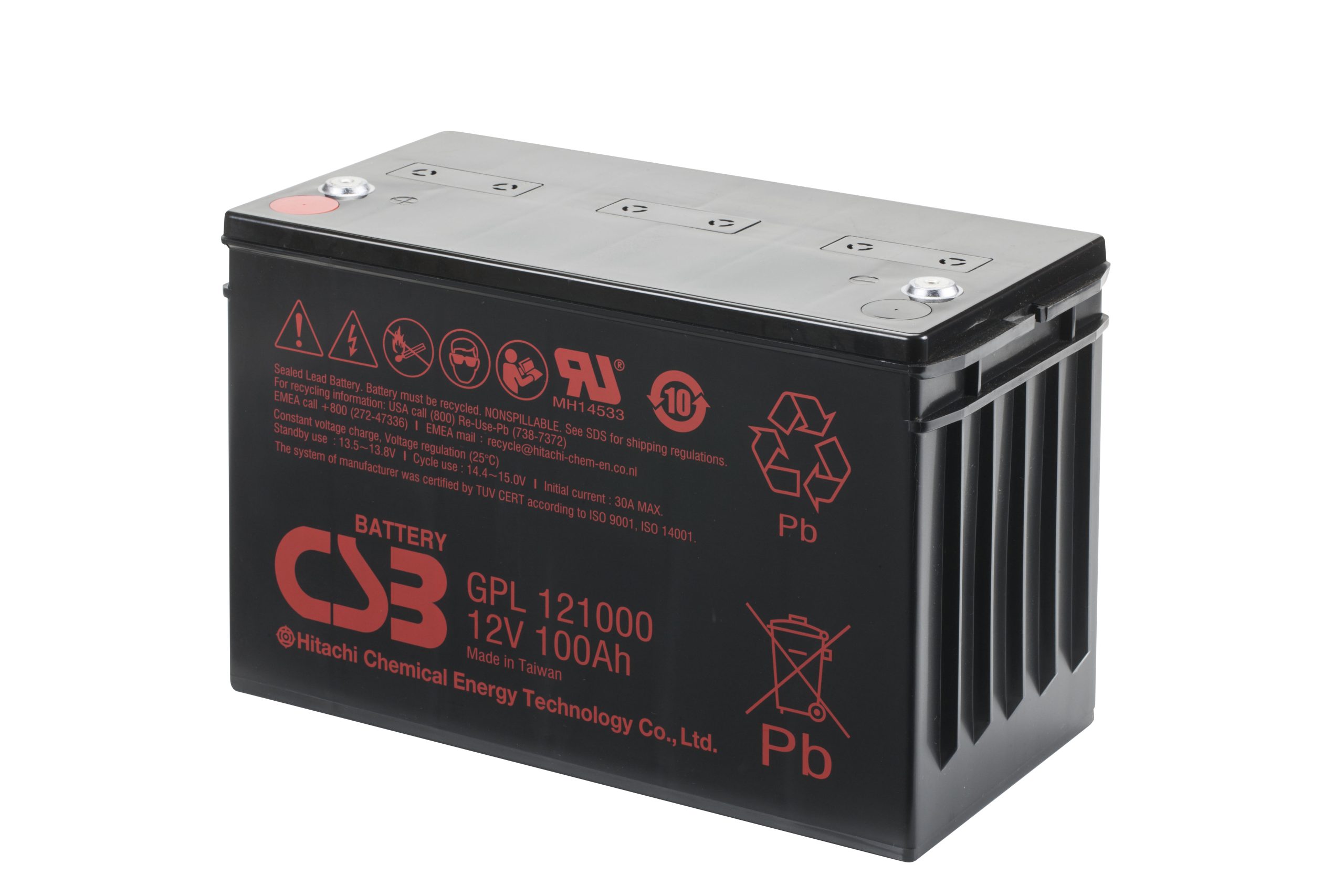

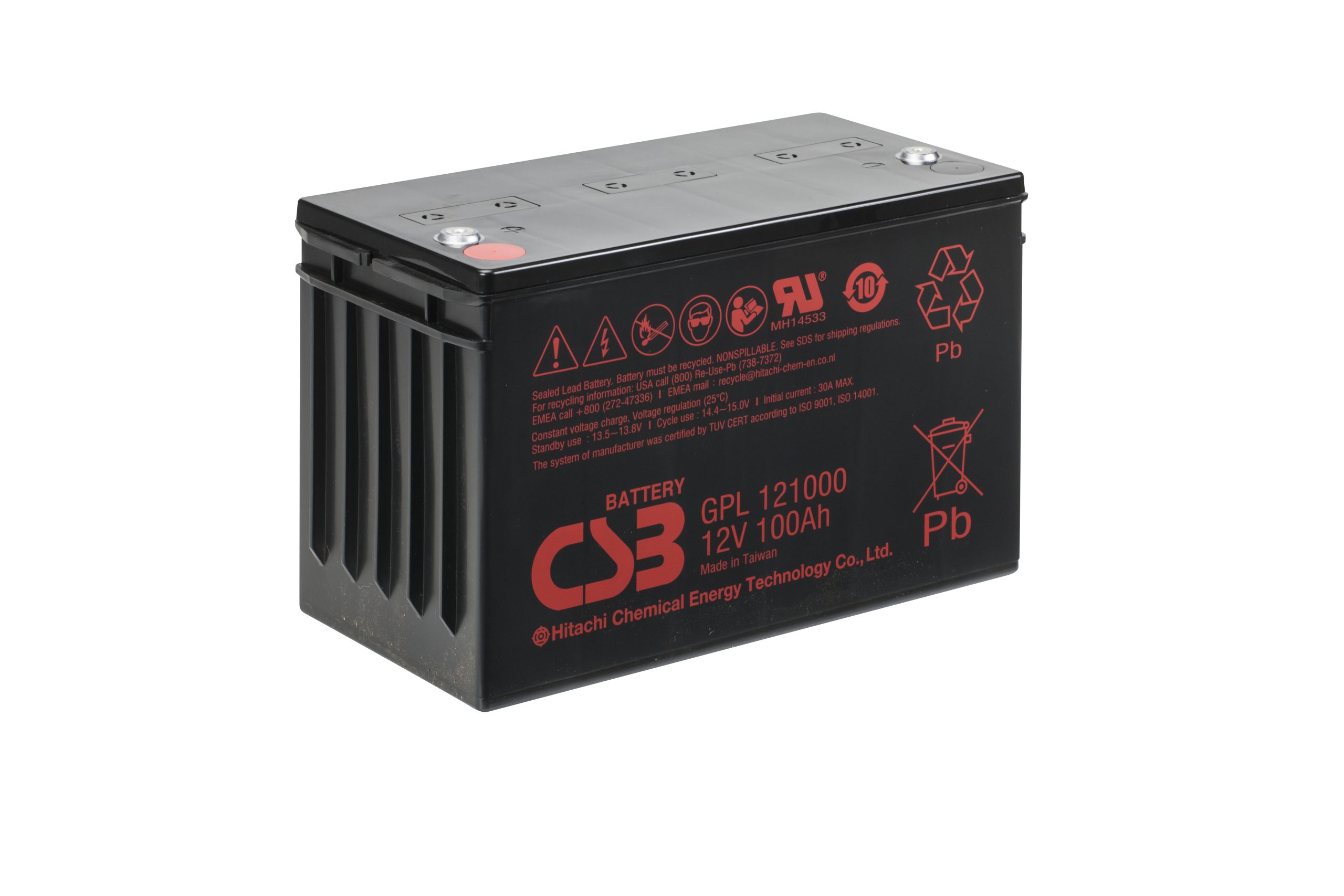

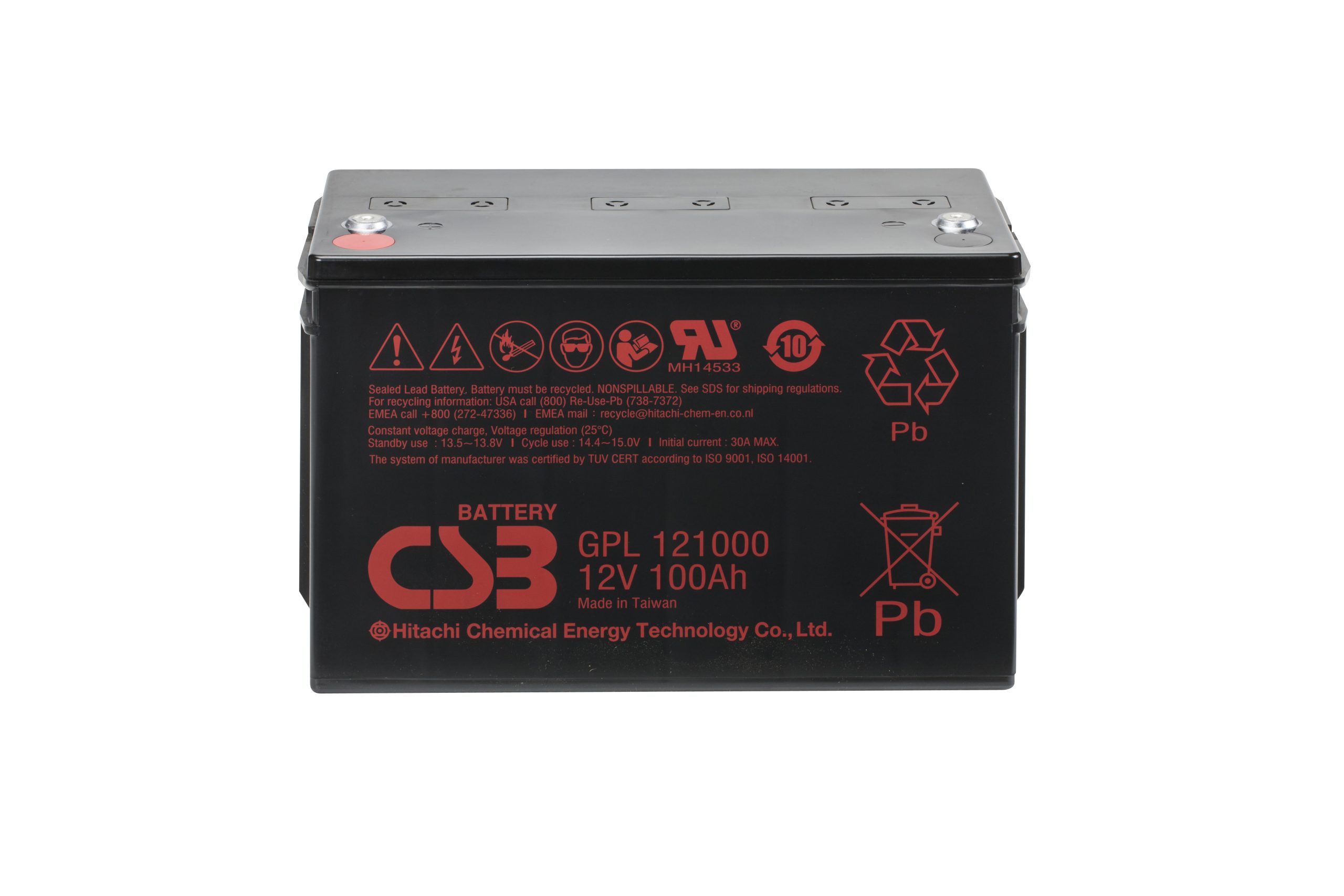

CSB GPL121000 SLA (AGM) Battery
As low as $221.76 each
CSB GPL121000 GPL Series 12 Volt / 100 Ah @20 Hr with Recessed Terminals and ABS Plastic Case
Loading...
Description
CSB GPL121000 GPL Series 12 Volt / 100 Ah @20 Hr with Recessed Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-GPL121000R |
| Dimensions | 13.50″ (L) x 6.69″ (W) x 8.43″ (H) |
| Dimensions (mm) | 343 mm (L) x 170 mm (W) x 214 mm (H) |
| Weight | 73.7 lbs (33.49 kgs) |
Additional information
| Weight | 73.7 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 Pieces), Pallet Layer (10 Pieces), Pallet (20 Pieces) |
| Product Line | |
| Product Series | GPL Series |
| Model | GPL121000 |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | GPL121000 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @20 Hr |
| Capacity @20 Hr | 100 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 13.50 |
| Width (In) | 6.69 |
| Height - Case (In) | 8.43 |
| Height - Overall (In) | 8.54 |
| Length (mm) | 343 |
| Width (mm) | 170 |
| Height - Case (mm) | 214 |
| Height - Overall (mm) | 217 |
| Weight (lb) | 73.7 |
| Weight (kg) | 33.49 |
| BCI Group | Group 31 |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
