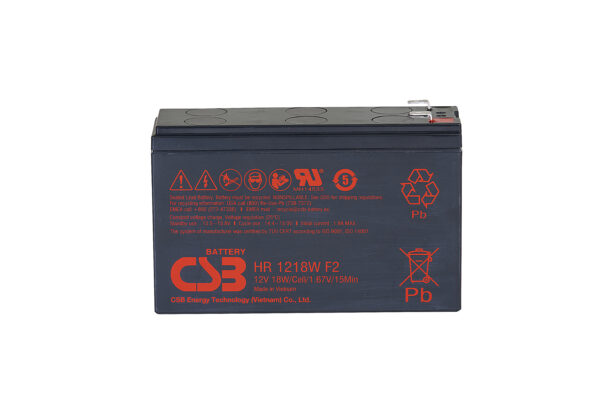

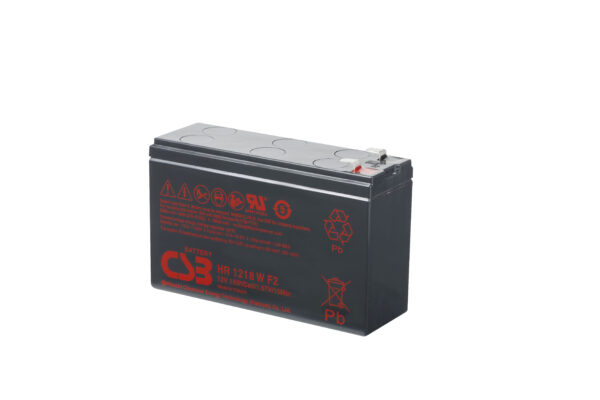

CSB HR1218WF2 SLA (AGM) Battery

CSB HR1218WF2 HR Series 12 Volt / 18 W @15 Min with F2 (0.250″) Terminals and ABS Plastic Case

Loading...

Description

CSB HR1218WF2 HR Series 12 Volt / 18 W @15 Min with F2 (0.250″) Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-HR1218WF2
Dimensions 5.94″ (L) x 2.01″ (W) x 3.70″ (H)
Dimensions (mm) 151 mm (L) x 51 mm (W) x 94 mm (H)
Weight 3.4 lbs (1.53 kgs)

Additional information

Weight 3.4 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces)

Product Line
Product Series

HR Series

Model

HR1218W

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

HR1218WF2

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

18 W @15 Min

Capacity @20 Hr

4.5

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min

18W@15

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current
Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

5.94

Width (In)

2.01

Height - Case (In)

3.70

Height - Overall (In)

3.90

Length (mm)

151

Width (mm)

51

Height - Case (mm)

94

Height - Overall (mm)

99

Weight (lb)

3.4

Weight (kg)

1.53

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
