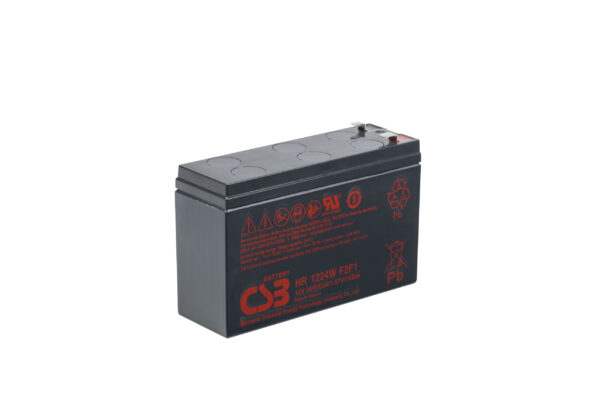

CSB HR1224WF2F1 SLA (AGM) Battery

As low as $18.48 each

CSB HR1224WF2F1 HR Series 12 Volt / 6.4 Ah @20 Hr with Polarized F1/F2 Terminals and ABS Plastic Case

price-discounts

Each (1 Pieces) - $30.80 each

Box/Case (12 Pieces) - $23.10 each

Pallet Layer (108 Pieces) - $19.25 each

Pallet (432 Pieces) - $18.48 each

Description

CSB HR1224WF2F1 HR Series 12 Volt / 6.4 Ah @20 Hr with Polarized F1/F2 Terminals and ABS Plastic Case

Weight	4.3 lbs
Manufacturer	CSB
price-discounts	Each (1 Pieces), Box/Case (12 Pieces), Pallet Layer (108 Pieces), Pallet (432 Pieces)
Product Line
Product Series	HR Series
Model	HR1224W
Terminal	Polarized F1/F2
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	HR1224WF2F1
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	6.4 Ah @20 Hr
Capacity @20 Hr	6.4
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	24 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.4 to 15.0 VDC
Maximum Charge Current
Operating Temp Low (°F)	5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	5.94
Width (In)	2.01
Height - Case (In)	3.70
Height - Overall (In)	3.90
Length (mm)	151
Width (mm)	51
Height - Case (mm)	94
Height - Overall (mm)	99
Weight (lb)	4.3
Weight (kg)	1.95
BCI Group	M6 Size
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
