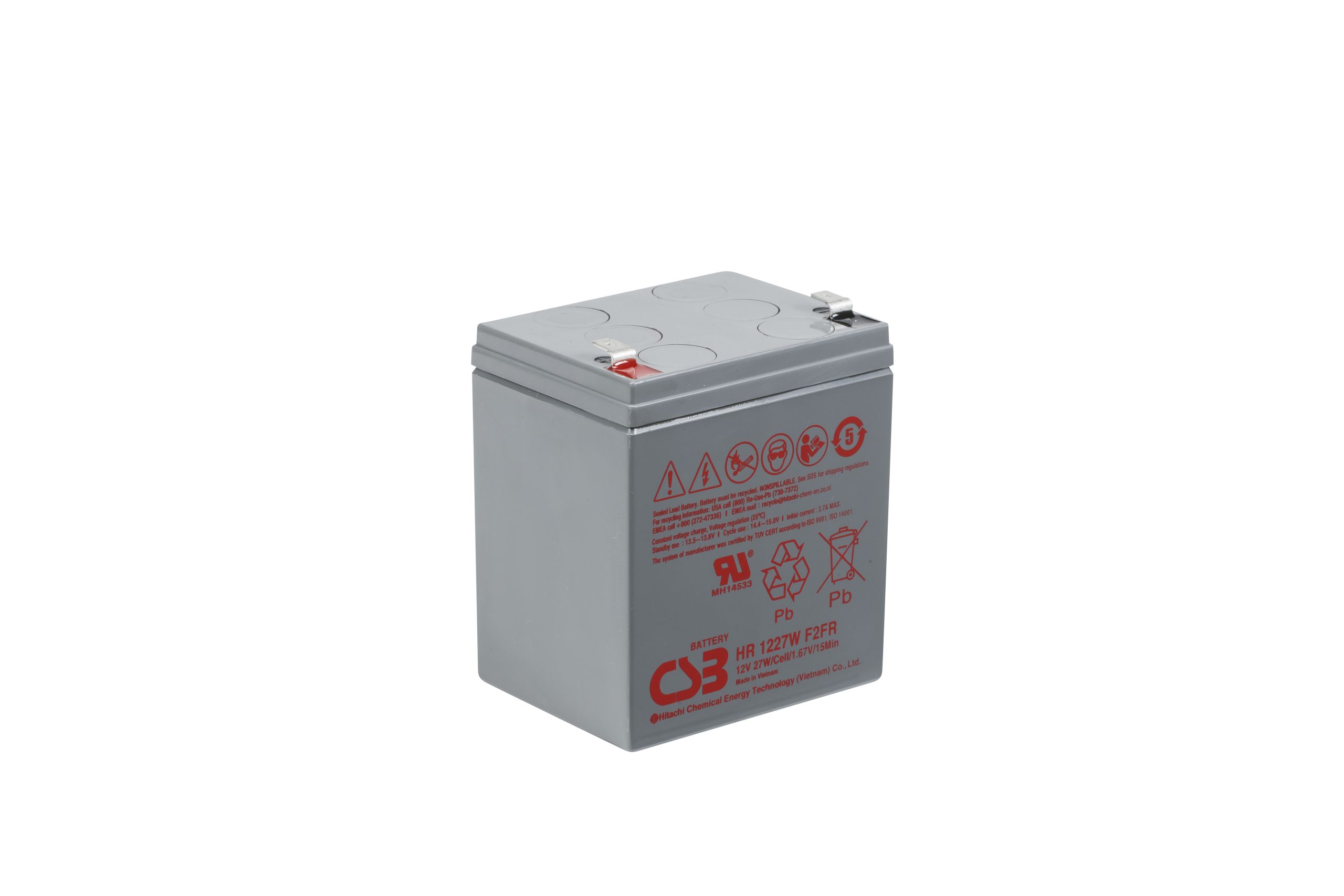

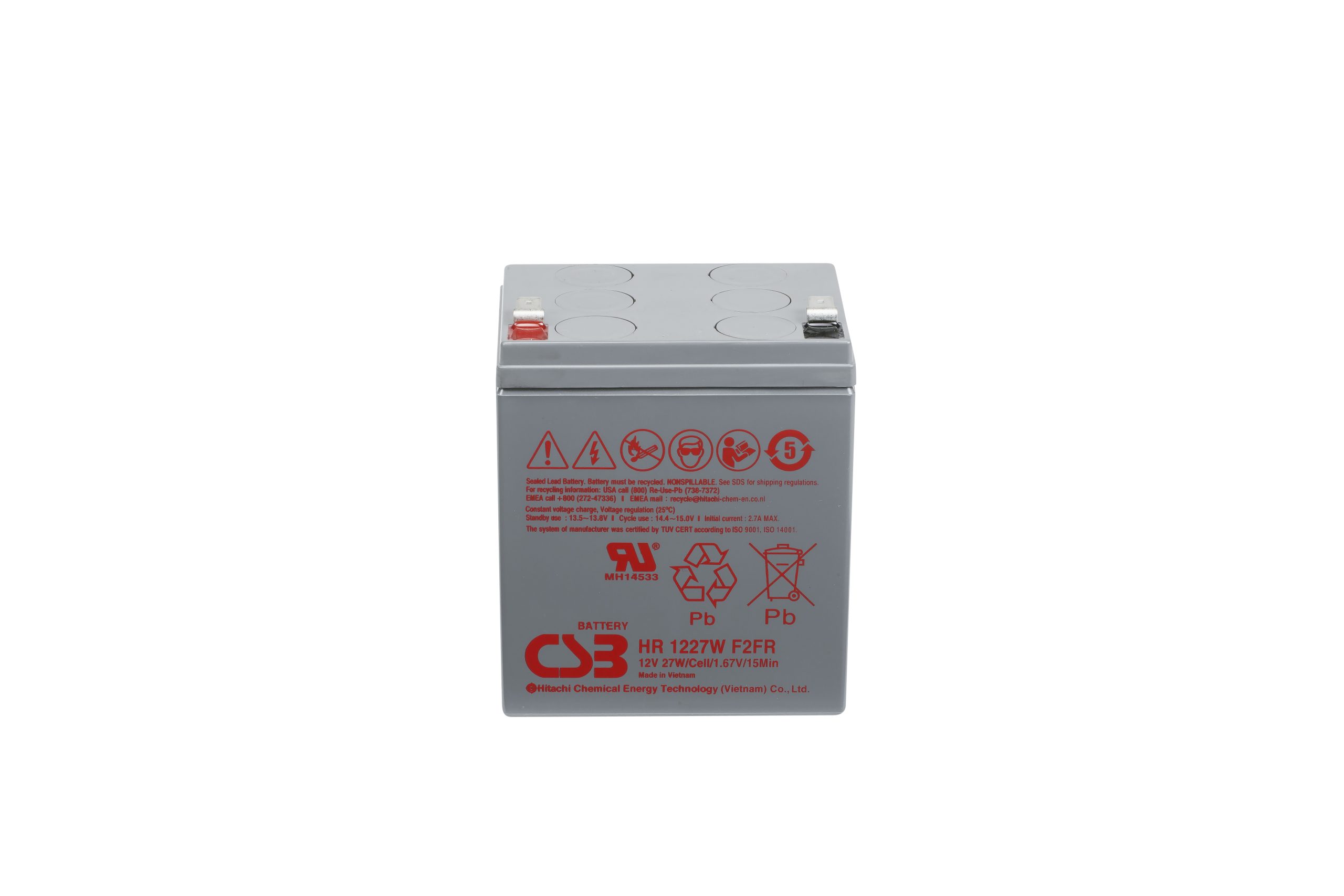

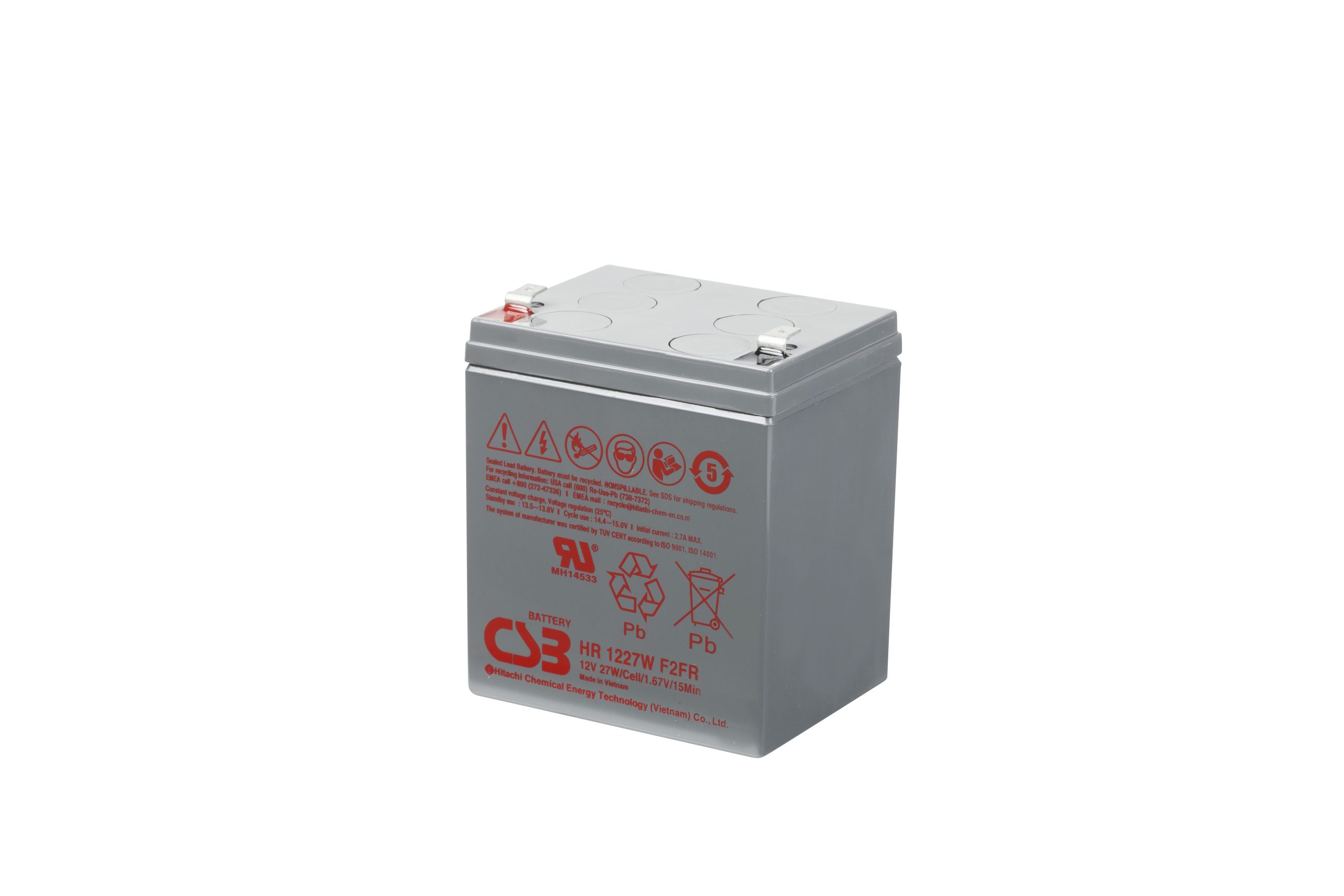

CSB HR1227WF2FR SLA (AGM) Battery
As low as $19.46 each
CSB HR1227WF2FR HR Series 12 Volt / 6.5 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB HR1227WF2FR HR Series 12 Volt / 6.5 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-HR1227WF2FR |
| Dimensions | 3.54″ (L) x 2.76″ (W) x 4.02″ (H) |
| Dimensions (mm) | 90 mm (L) x 70 mm (W) x 102 mm (H) |
| Weight | 4.3 lbs (1.97 kgs) |
Additional information
| Weight | 4.3 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Box/Case (10 pieces), Pallet Layer (120 pieces), Pallet (480 pieces) |
| Product Line | |
| Product Series | HR Series |
| Model | HR1227W |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | HR1227WF2FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 6.5 Ah @20 Hr |
| Capacity @20 Hr | 6.5 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 27 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 3.54 |
| Width (In) | 2.76 |
| Height - Case (In) | 4.02 |
| Height - Overall (In) | 4.17 |
| Length (mm) | 90 |
| Width (mm) | 70 |
| Height - Case (mm) | 102 |
| Height - Overall (mm) | 106 |
| Weight (lb) | 4.3 |
| Weight (kg) | 1.97 |
| BCI Group | M5 Size |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
