CSB HR1232WF2FR SLA (AGM) Battery
CSB HR1232WF2FR HR Series 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB HR1232WF2FR HR Series 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-HR1232WF2FR |
| Dimensions | 5.94″ (L) x 2.55″ (W) x 3.71″ (H) |
| Dimensions (mm) | 150 mm (L) x 64.8 mm (W) x 94.3 mm (H) |
| Weight | 5.2 lbs (2.34 kgs) |
Additional information
| Weight | 5.2 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces) |
| Product Line | |

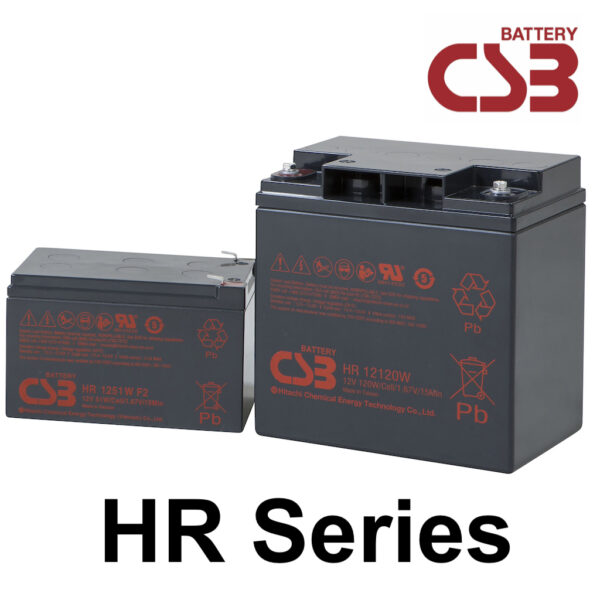

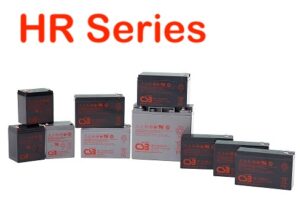

| Product Series | HR Series |
| Model | HR1232W |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | HR1232WF2FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 8.0 Ah @20 Hr |
| Capacity @20 Hr | 8 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 32 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.94 |
| Width (In) | 2.55 |
| Height - Case (In) | 3.71 |
| Height - Overall (In) | 3.88 |
| Length (mm) | 150 |
| Width (mm) | 64.8 |
| Height - Case (mm) | 94.3 |
| Height - Overall (mm) | 98.6 |
| Weight (lb) | 5.2 |
| Weight (kg) | 2.34 |
| BCI Group | M7 Size |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
