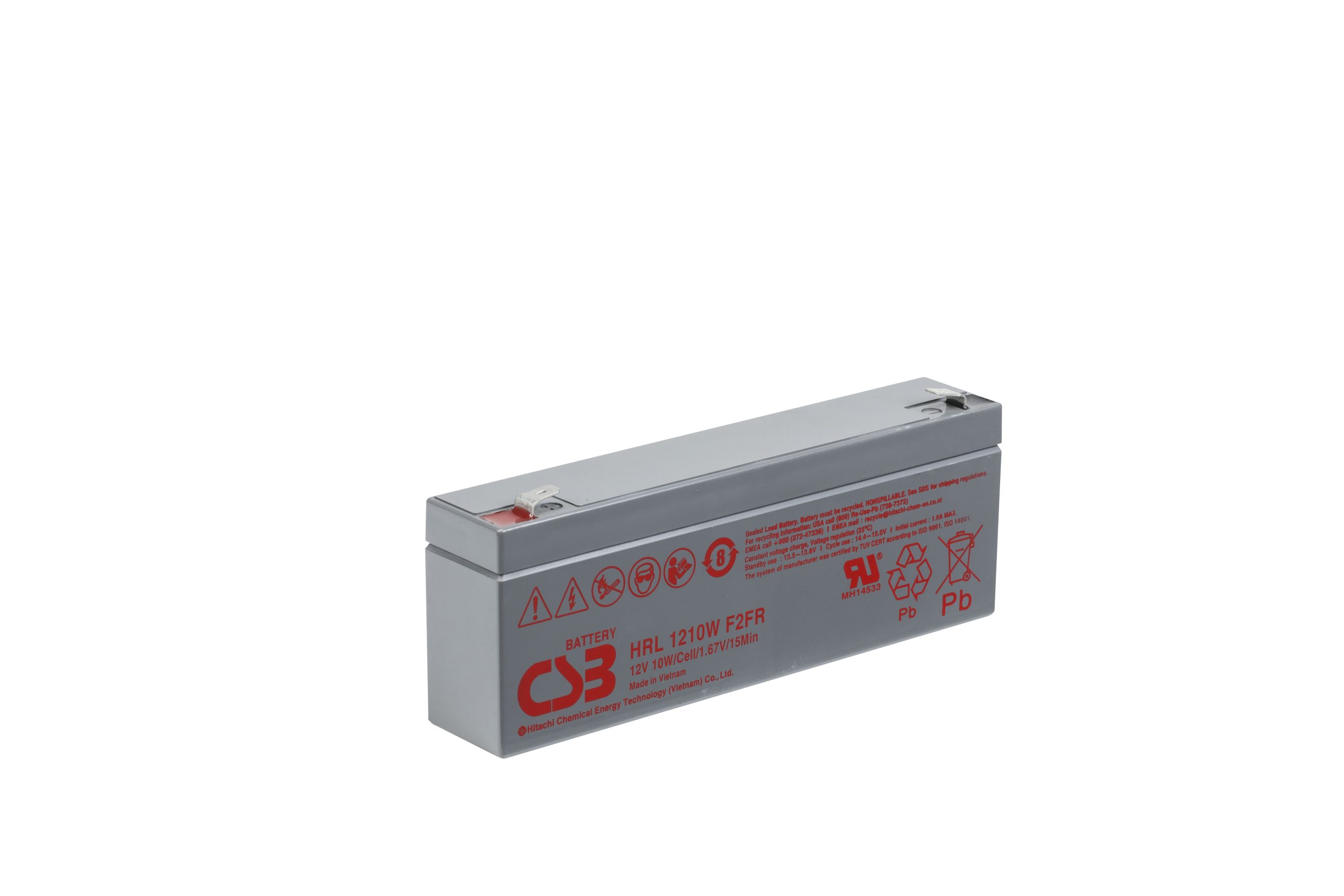

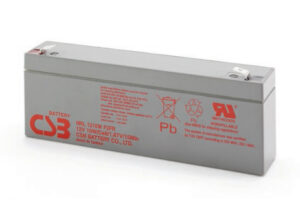

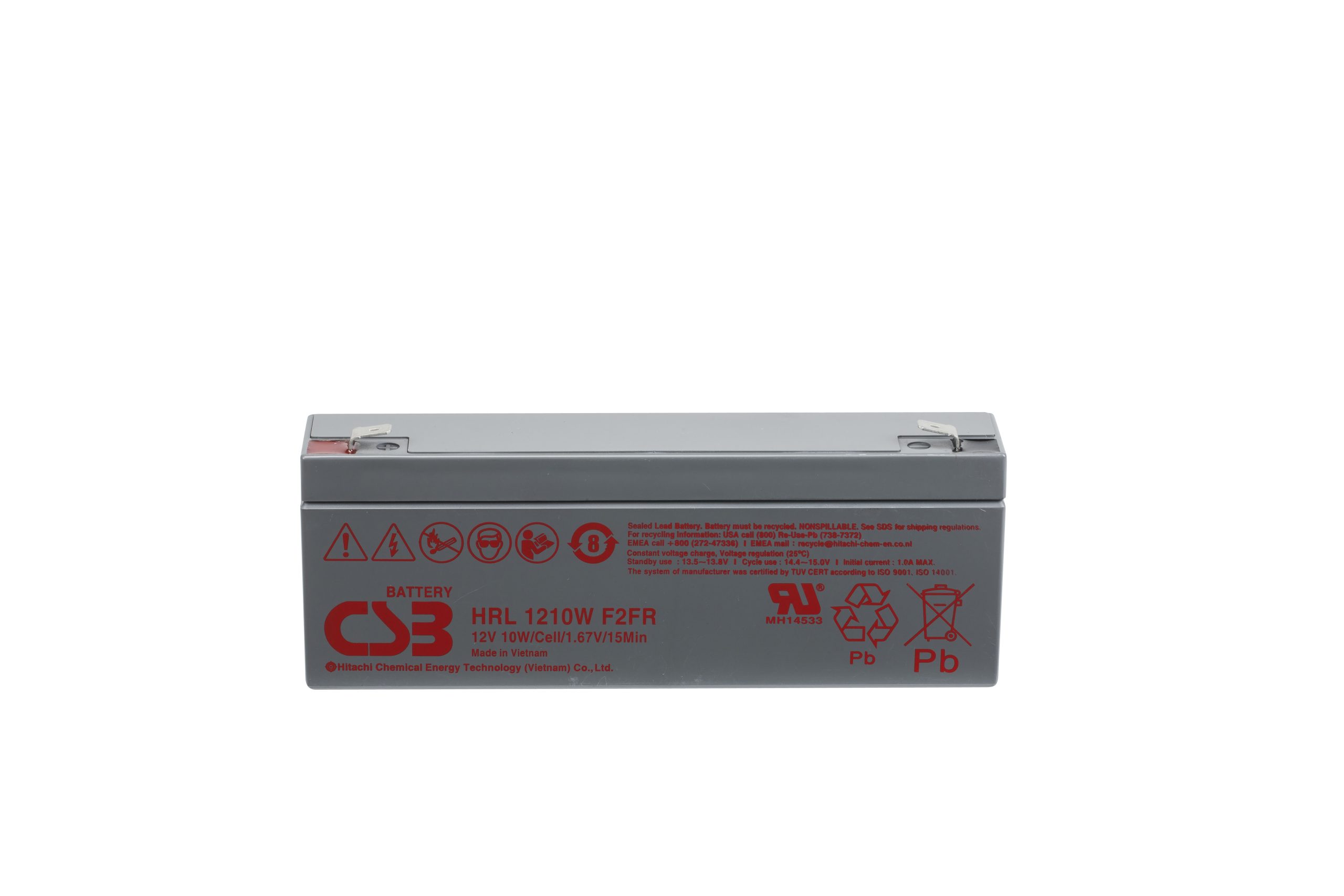

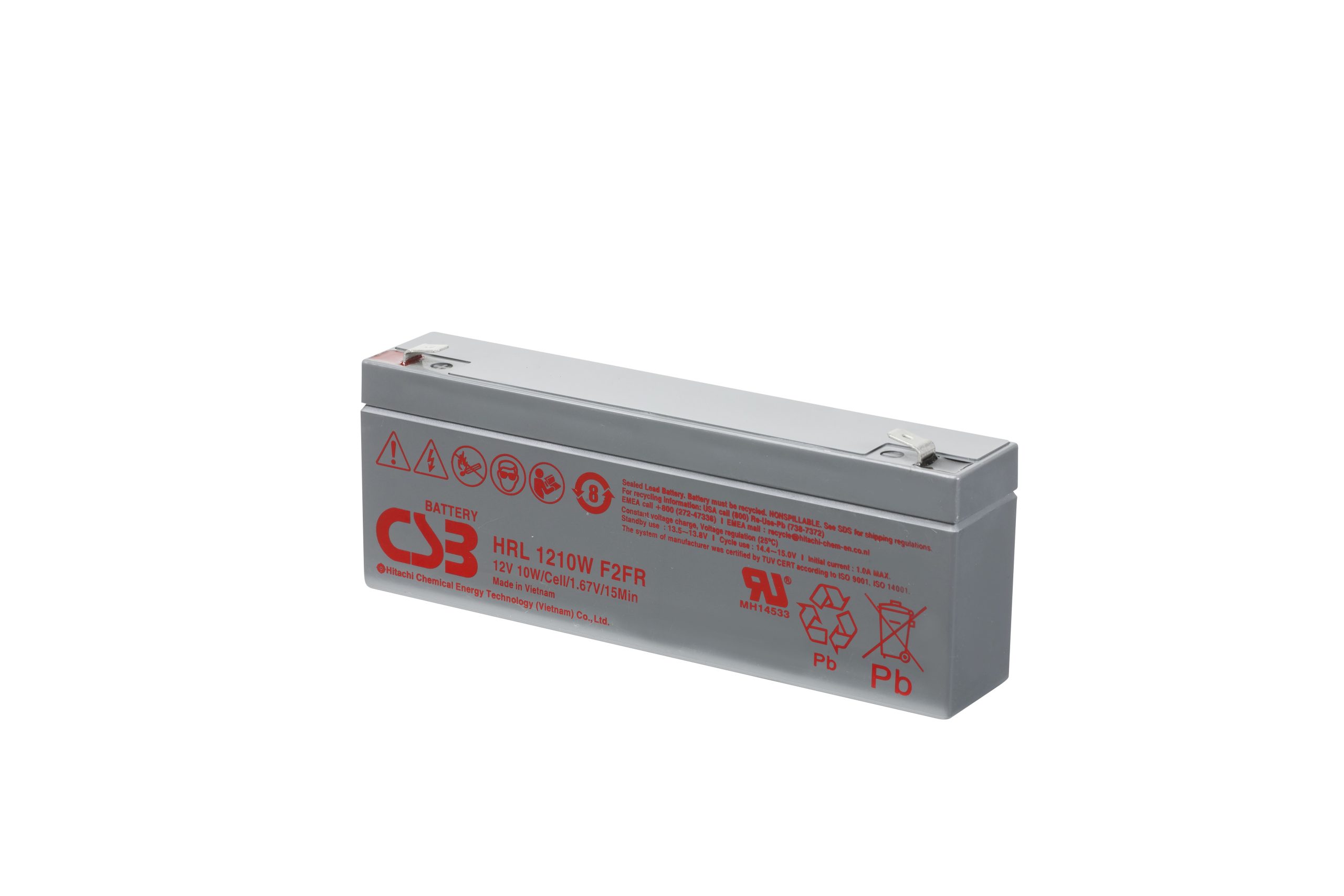

CSB HRL1210WFR SLA (AGM) Battery

As low as $18.25 each

CSB HRL1210WFR HRL Series 12 Volt / 2.3 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case

price-discounts

Each (1 pieces) - $30.42 each

Box/Case (16 pieces) - $22.82 each

Pallet Layer (288 pieces) - $19.01 each

Pallet (864 pieces) - $18.25 each

Description

CSB HRL1210WFR HRL Series 12 Volt / 2.3 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case

Weight	2.4 lbs
Manufacturer	CSB
price-discounts	Each (1 pieces), Box/Case (16 pieces), Pallet Layer (288 pieces), Pallet (864 pieces)
Product Line
Product Series	HRL Series
Model	HRL1210W
Terminal	F2 (0.250")
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	HRL1210WFR
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	2.3 Ah @20 Hr
Capacity @20 Hr	2.3
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	10 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.4 to 15.0 VDC
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	7.01
Width (In)	1.34
Height - Case (In)	2.52
Height - Overall (In)	2.80
Length (mm)	178
Width (mm)	34
Height - Case (mm)	64
Height - Overall (mm)	71
Weight (lb)	2.4
Weight (kg)	1.09
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
