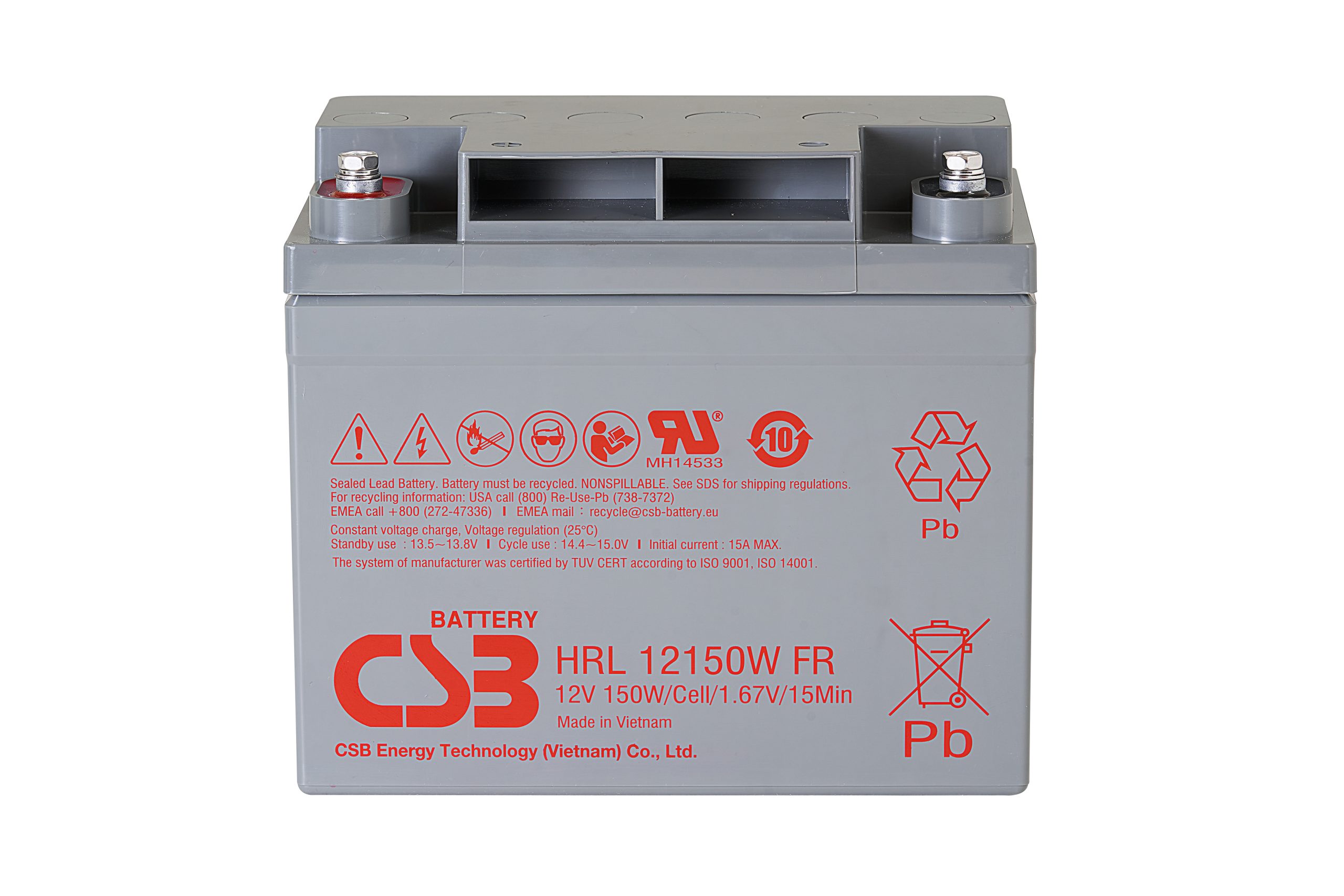

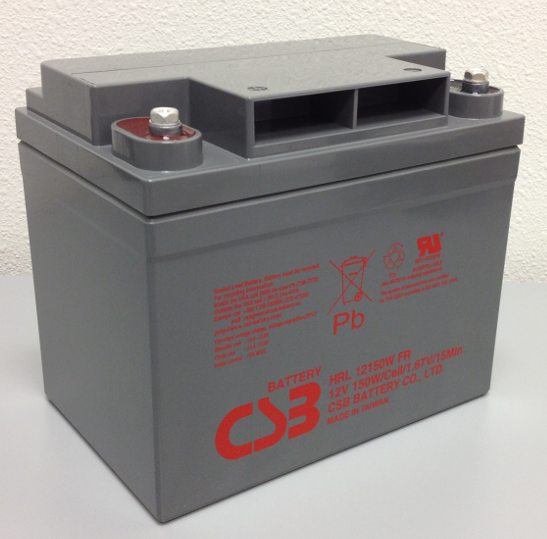

CSB HRL12150WGFR SLA (AGM) Battery

As low as $104.40 each

CSB HRL12150WGFR HRL Series 12 Volt / 37 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case

price-discounts

Each (1 pieces) - $147.90 each

Pallet Layer (30 pieces) - $108.75 each

Pallet (90 pieces) - $104.40 each

Description

CSB HRL12150WGFR HRL Series 12 Volt / 37 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case

Weight	25.9 lbs
Manufacturer	CSB
price-discounts	Each (1 pieces), Pallet Layer (30 pieces), Pallet (90 pieces)
Product Line
Product Series	HRL Series
Model	HRL12150W
Terminal	Recessed
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	HRL12150WGFR
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	37 Ah @20 Hr
Capacity @20 Hr	37
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	155 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.4 to 15.0 VDC
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	7.72
Width (In)	5.12
Height - Case (In)	6.77
Height - Overall (In)	6.77
Length (mm)	196
Width (mm)	130
Height - Case (mm)	172
Height - Overall (mm)	172
Weight (lb)	25.9
Weight (kg)	11.75
BCI Group	Group U1
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
