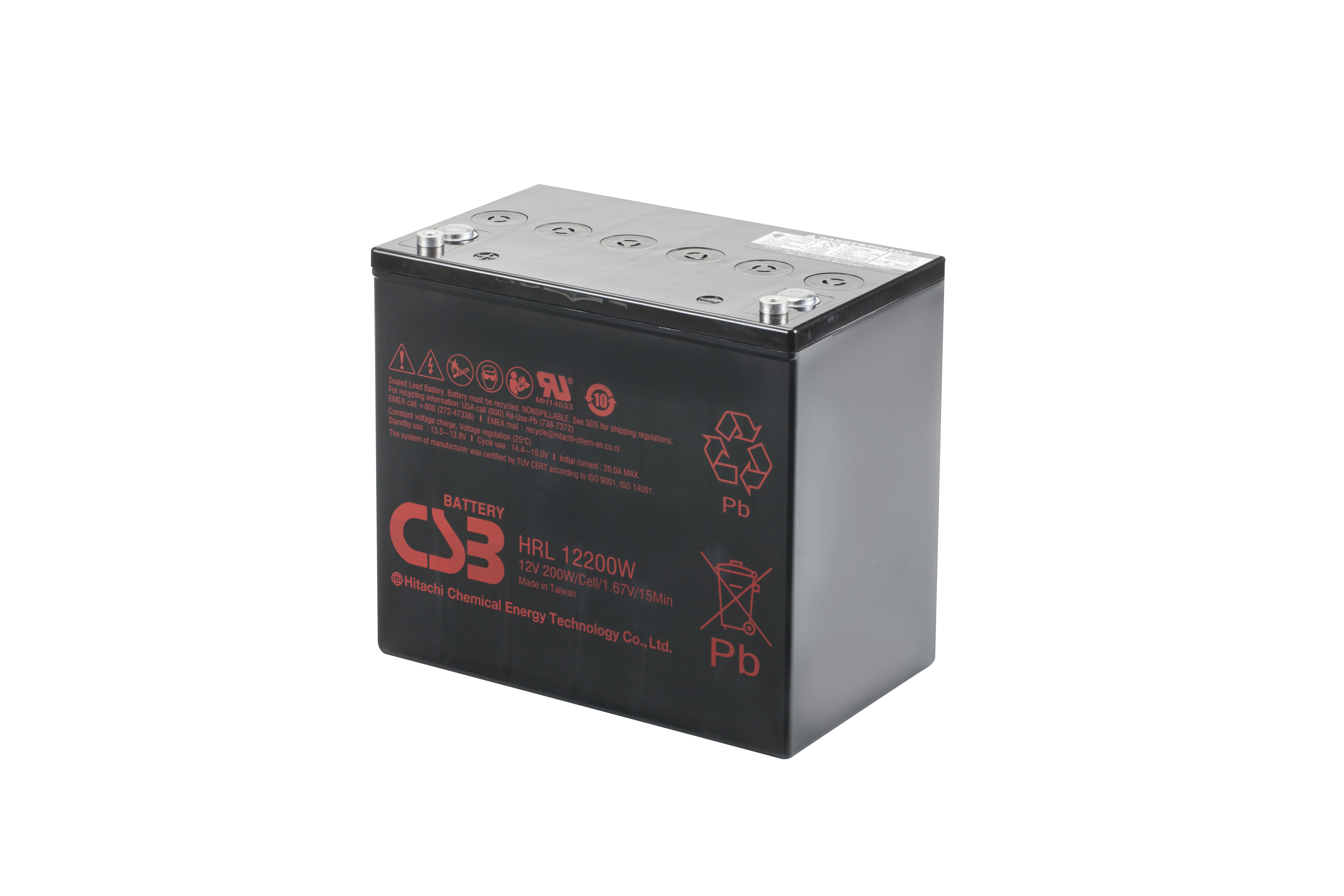

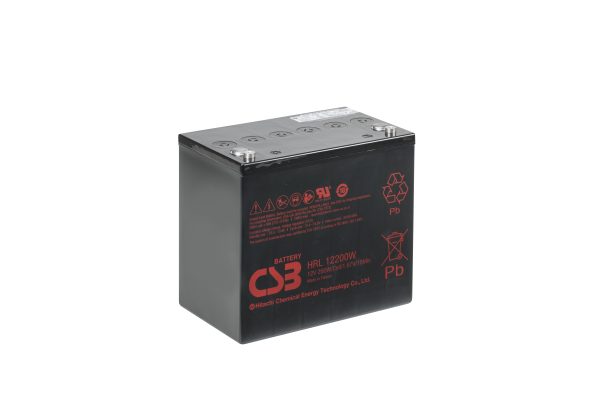

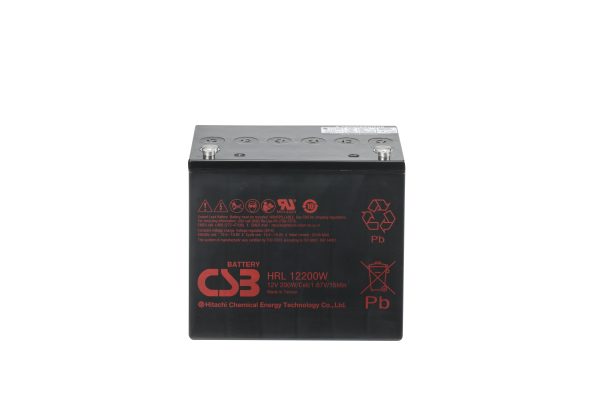

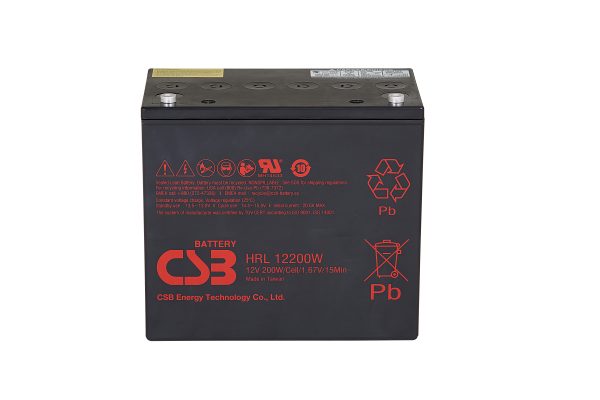

CSB HRL12200W SLA (AGM) Battery

As low as $142.56 each

CSB HRL12200W HRL Series 12 Volt / 52 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

price-discounts

Each (1 pieces) - $201.96 each

Pallet Layer (20 pieces) - $166.32 each

Pallet (40 pieces) - $142.56 each

Description

CSB HRL12200W HRL Series 12 Volt / 52 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Weight	38.1 lbs
Manufacturer	CSB
price-discounts	Each (1 pieces), Pallet Layer (20 pieces), Pallet (40 pieces)
Product Line
Product Series	HRL Series
Model	HRL12200W
Terminal	Recessed
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	HRL12200W
Manufacturers SKU
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	52 Ah @20 Hr
Capacity @20 Hr	52
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	215 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life
Shelf Life	6
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 VDC
Cycle Charge Voltage	14.4 to 15.0 VDC
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	8.98
Width (In)	5.43
Height - Case (In)	7.91
Height - Overall (In)	8.11
Length (mm)	228
Width (mm)	138
Height - Case (mm)	201
Height - Overall (mm)	206
Weight (lb)	38.1
Weight (kg)	17.3
BCI Group	Group 22NF
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
