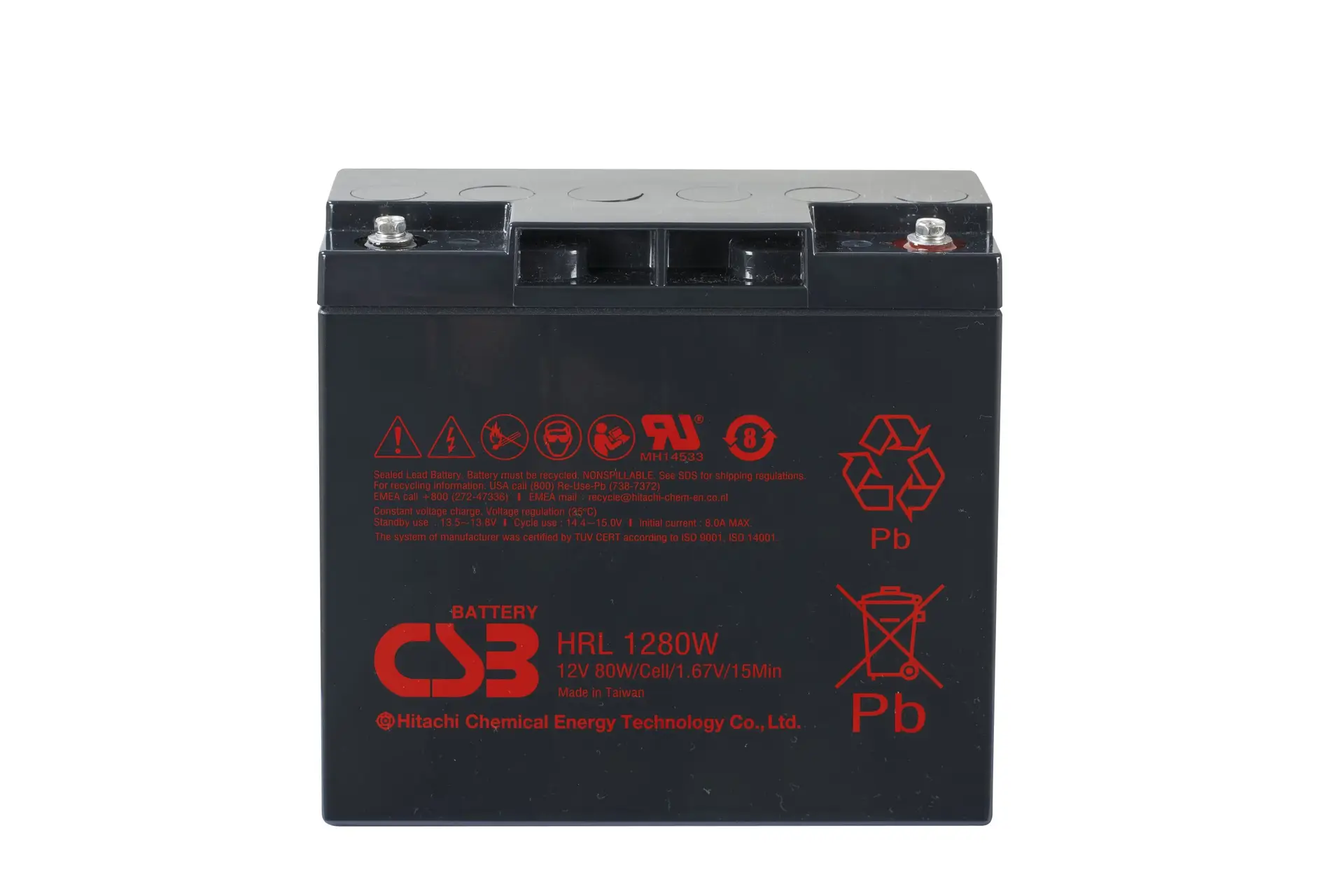

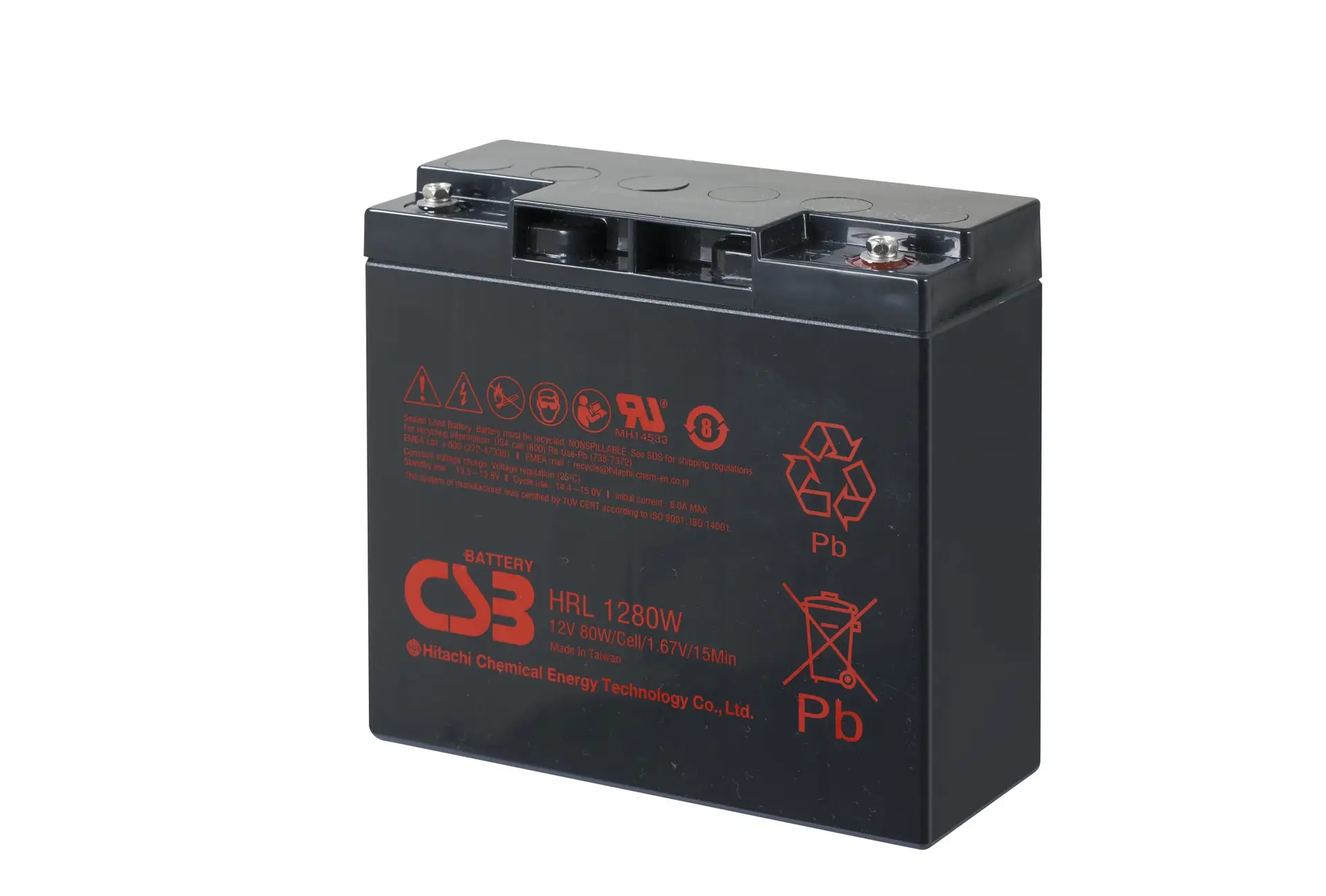

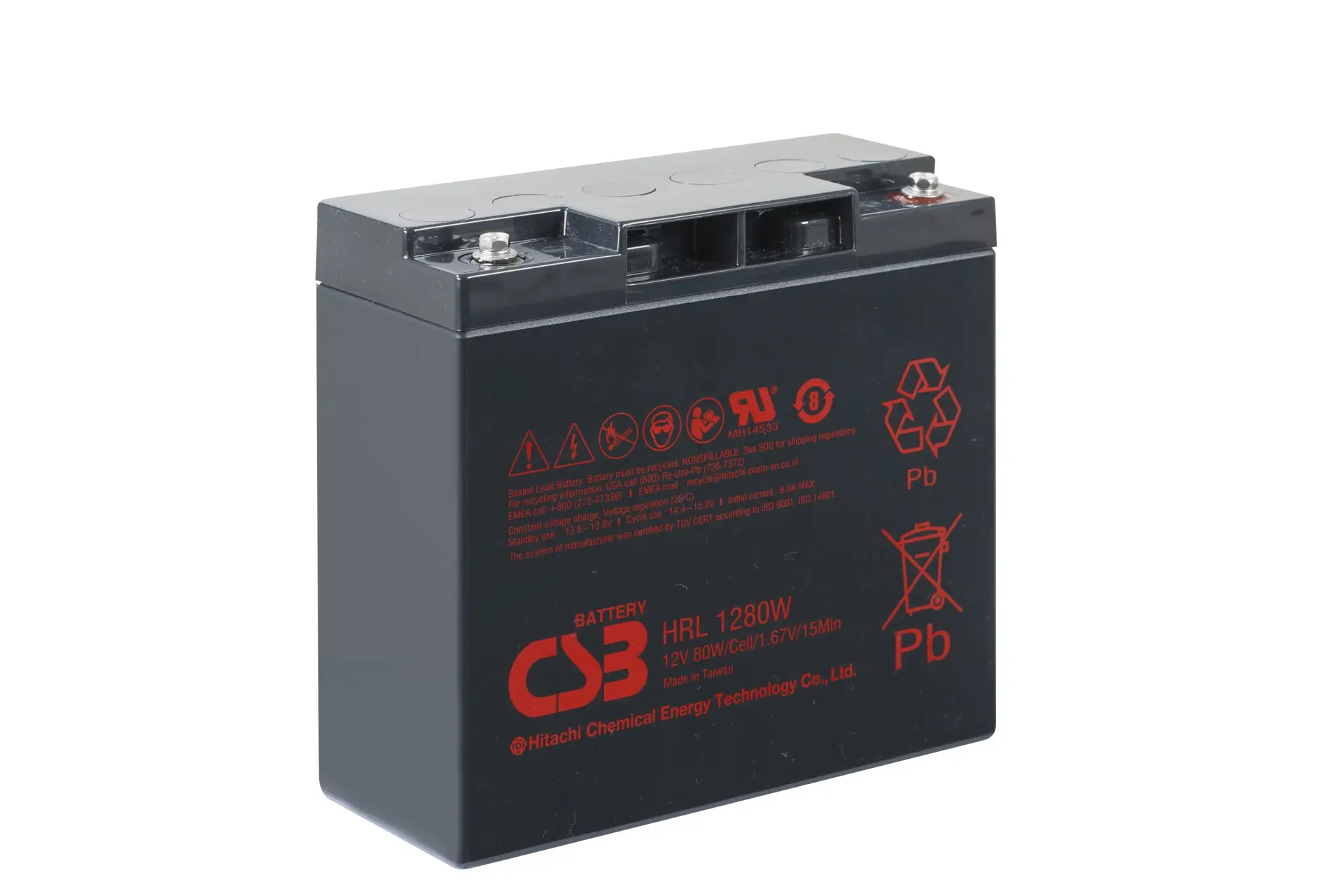

CSB HRL1280W SLA (AGM) Battery

As low as $51.01 each

CSB HRL1280W HRL Series 12 Volt / 20 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Loading...

Description

CSB HRL1280W HRL Series 12 Volt / 20 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-HRL1280WR
Dimensions 7.13″ (L) x 2.99″ (W) x 6.57″ (H)
Dimensions (mm) 181 mm (L) x 76 mm (W) x 167 mm (H)
Weight 15.0 lbs (6.8 kgs)

Additional information

Weight 15.0 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces), Box/Case (4 pieces), Pallet Layer (56 pieces), Pallet (168 pieces)

Product Line
Product Series

HRL Series

Model

HRL1280W

Terminal

Recessed

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

HRL1280W

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

20 Ah @20 Hr

Capacity @20 Hr

20

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min

80 W @15 Min

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

7.13

Width (In)

2.99

Height - Case (In)

6.57

Height - Overall (In)

6.57

Length (mm)

181

Width (mm)

76

Height - Case (mm)

167

Height - Overall (mm)

167

Weight (lb)

15.0

Weight (kg)

6.8

BCI Group

M17 Size

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
