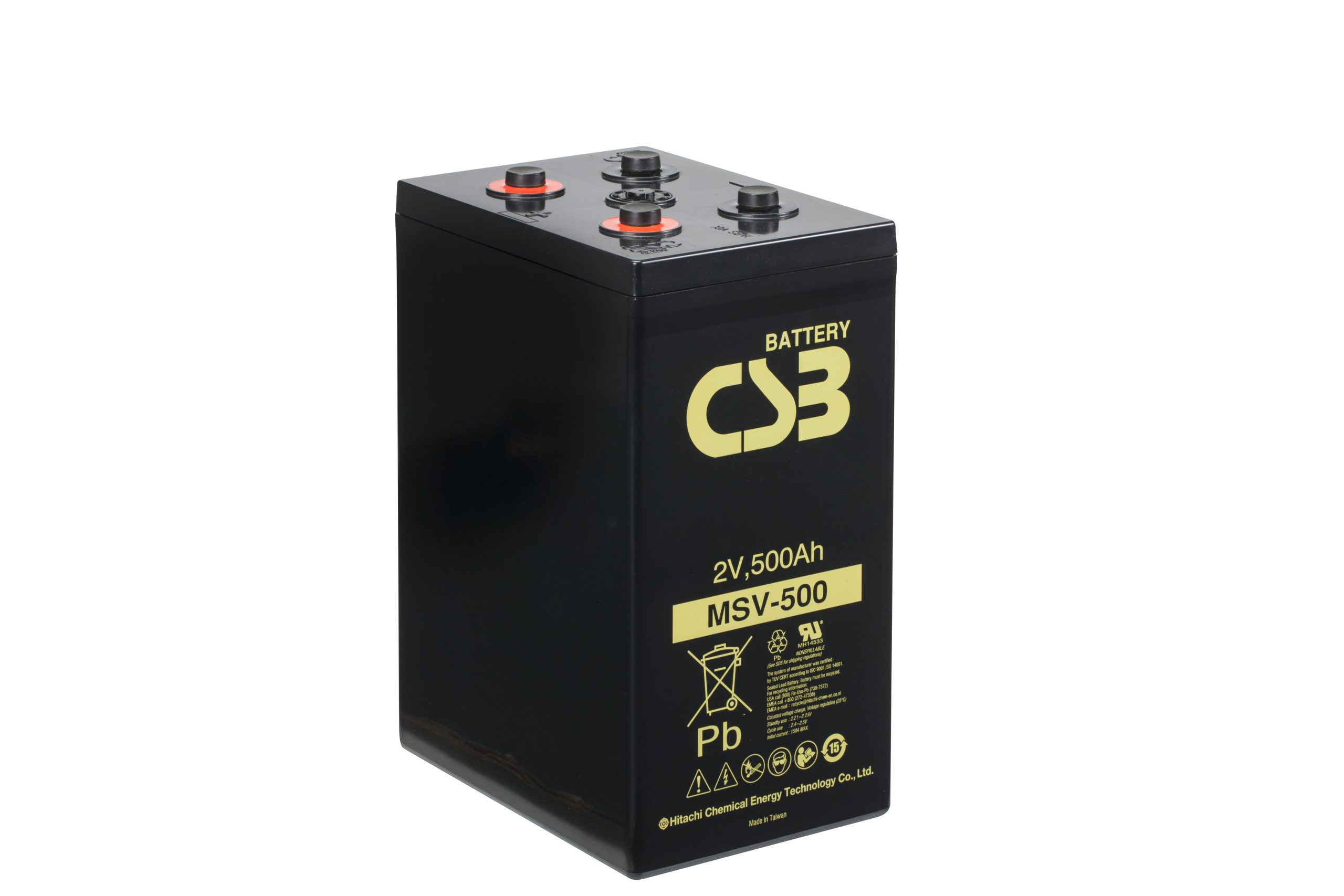

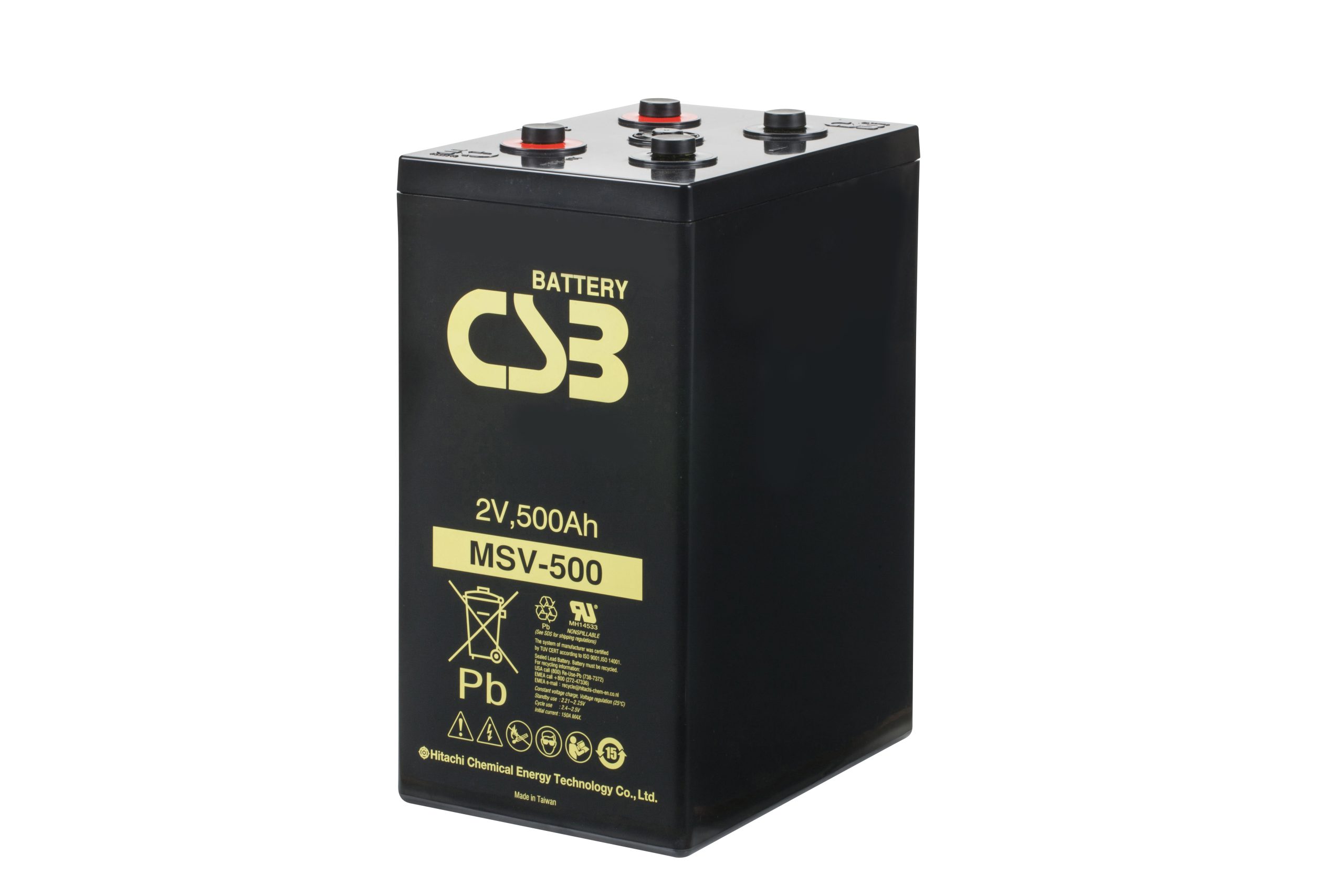

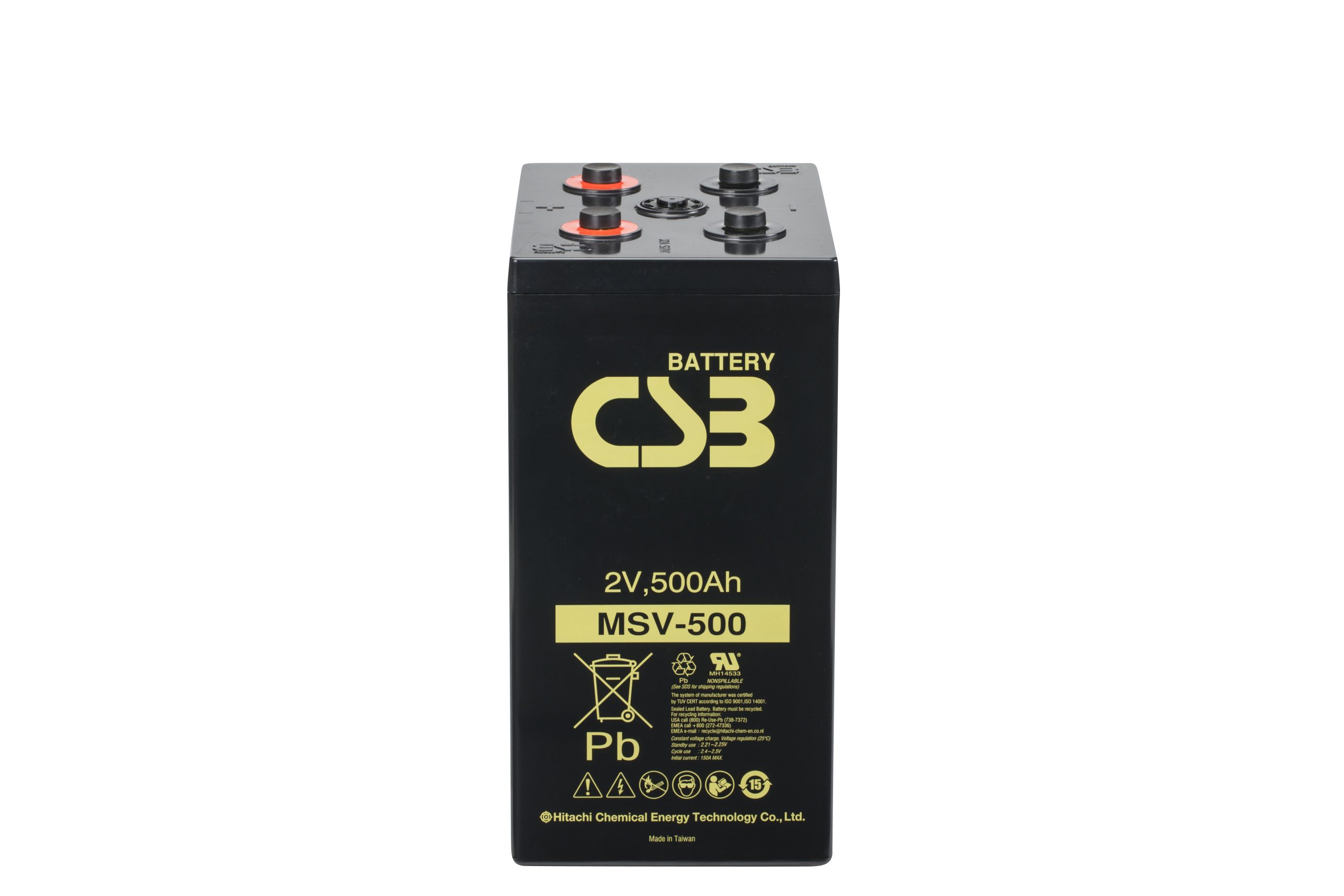

CSB MSV500 SLA (AGM) Battery
CSB MSV500 MSV Series 2 Volt / 500 Ah @10 Hr with Recessed M8 Terminals and ABS Plastic Case
Loading...
Description
CSB MSV500 MSV Series 2 Volt / 500 Ah @10 Hr with Recessed M8 Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-MSV500R |
| Dimensions | 9.49″ (L) x 6.73″ (W) x 13.03″ (H) |
| Dimensions (mm) | 241 mm (L) x 171 mm (W) x 331 mm (H) |
| Weight | 68.6 lbs (31.19 kgs) |
Additional information
| Weight | 68.6 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces) |
| Product Line | |
| Product Series | MSV Series |
| Model | MSV500 |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | MSV500 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 2 |
| Capacity (Nominal) | 500 Ah @10 Hr |
| Capacity @20 Hr | 500 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 9.49 |
| Width (In) | 6.73 |
| Height - Case (In) | 13.03 |
| Height - Overall (In) | 13.15 |
| Length (mm) | 241 |
| Width (mm) | 171 |
| Height - Case (mm) | 331 |
| Height - Overall (mm) | 334 |
| Weight (lb) | 68.6 |
| Weight (kg) | 31.19 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
