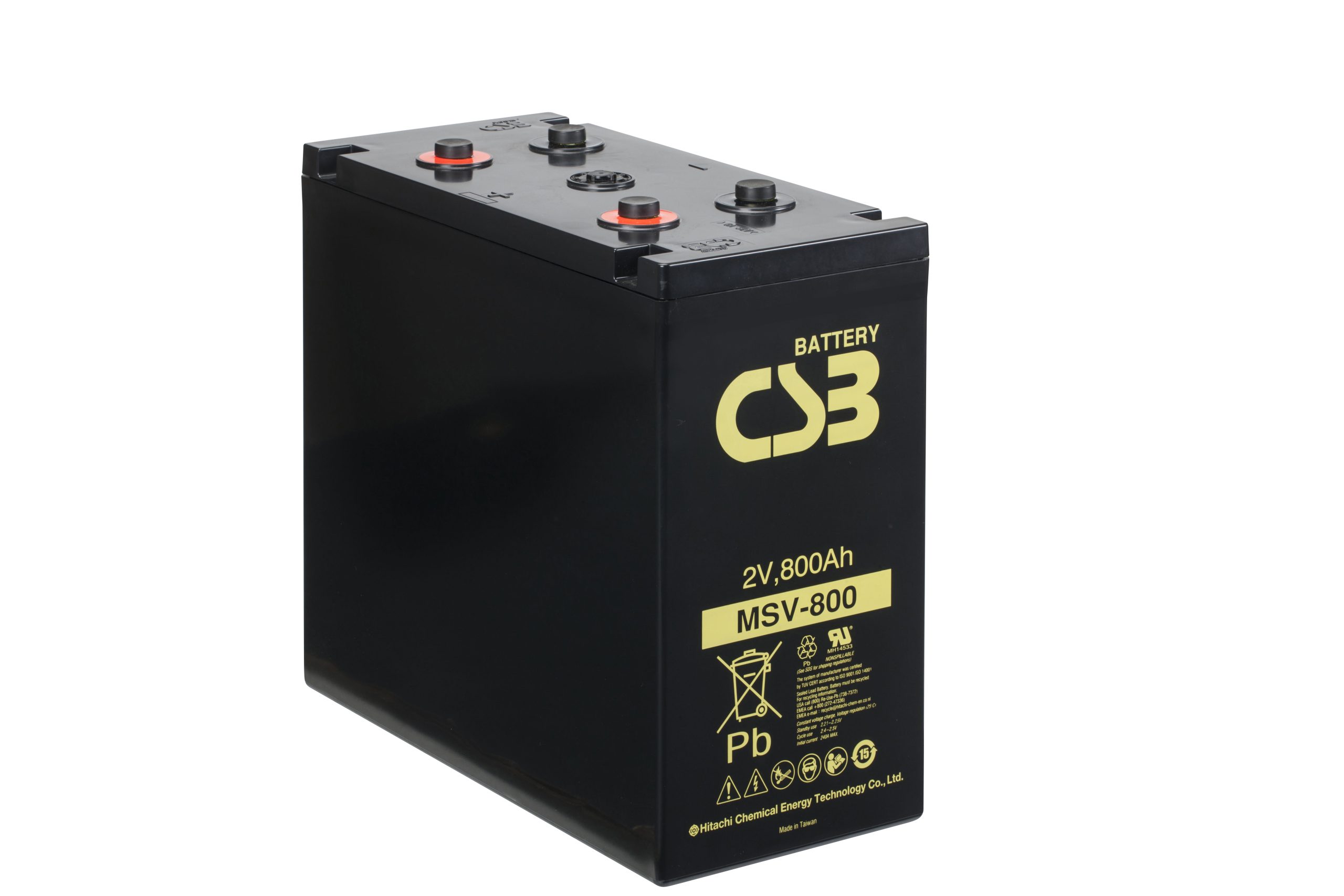

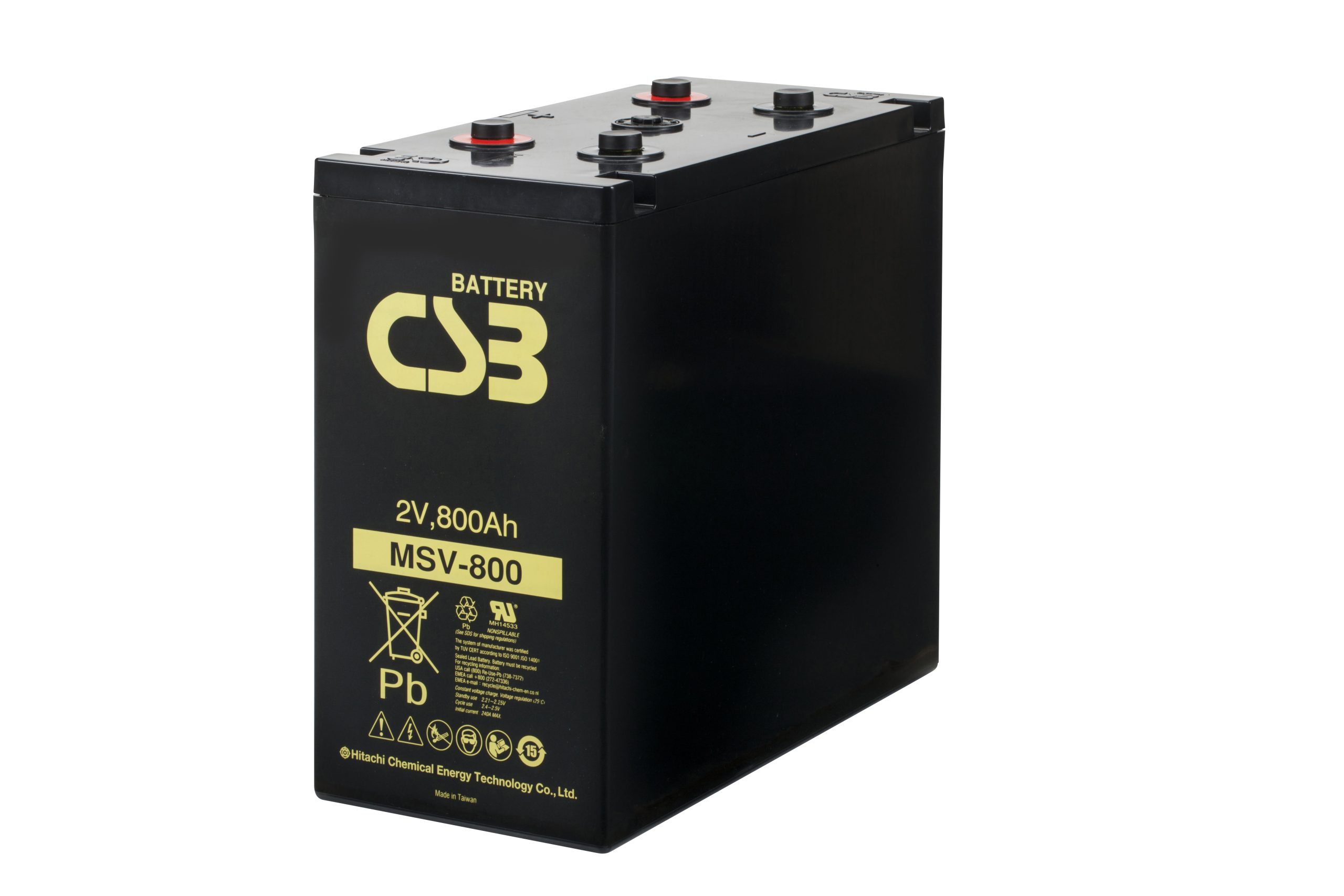

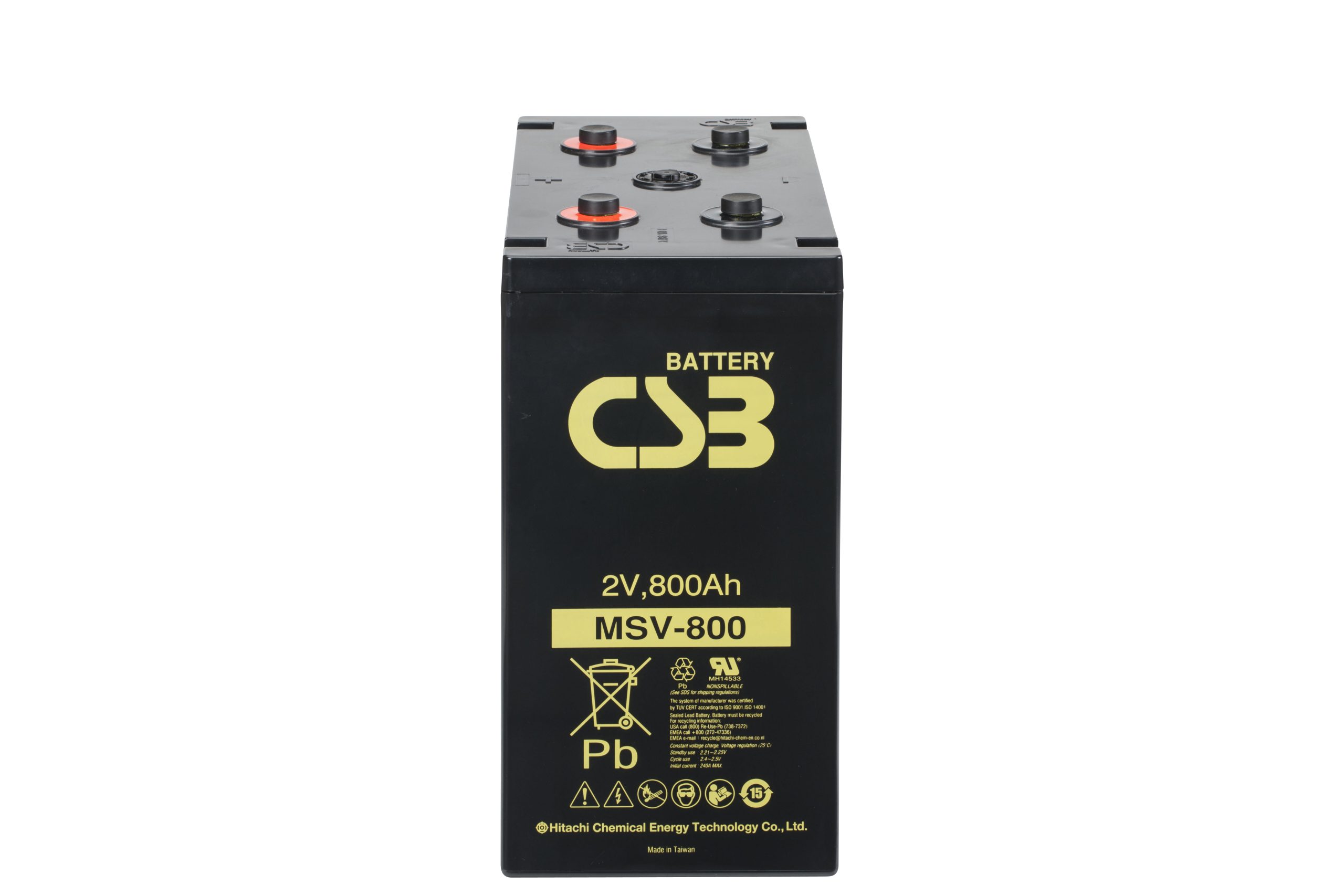

CSB MSV800 SLA (AGM) Battery

CSB MSV800 MSV Series 2 Volt / 800 Ah @10 Hr with Recessed M8 Terminals and ABS Plastic Case

Loading...

Description

CSB MSV800 MSV Series 2 Volt / 800 Ah @10 Hr with Recessed M8 Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-MSV800R
Dimensions 14.69″ (L) x 6.85″ (W) x 13.03″ (H)
Dimensions (mm) 373 mm (L) x 174 mm (W) x 331 mm (H)
Weight 111.3 lbs (50.58 kgs)

Additional information

Weight 111.3 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces)

Product Line
Product Series

MSV Series

Model

MSV800

Terminal

Recessed M8

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

MSV800

Manufacturers SKU
Deprecated Model #
Applications
Voltage

2

Capacity (Nominal)

800 Ah @10 Hr

Capacity @20 Hr

800

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

14.69

Width (In)

6.85

Height - Case (In)

13.03

Height - Overall (In)

13.15

Length (mm)

373

Width (mm)

174

Height - Case (mm)

331

Height - Overall (mm)

334

Weight (lb)

111.3

Weight (kg)

50.58

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
