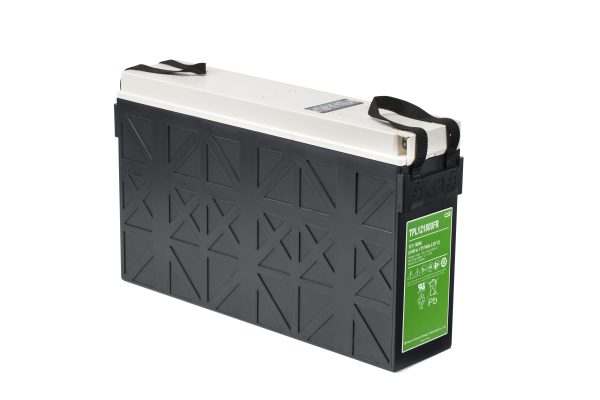

CSB TPL121800FR SLA (AGM) Battery
As low as $385.44 each
CSB TPL121800FR TPL Series 12 Volt / 180 Ah @8 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB TPL121800FR TPL Series 12 Volt / 180 Ah @8 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-TPL121800RFR |
| Dimensions | 21.54″ (L) x 4.94″ (W) x 12.72″ (H) |
| Dimensions (mm) | 547 mm (L) x 125 mm (W) x 320 mm (H) |
| Weight | 121.4 lbs (55.1 kgs) |
Additional information
| Weight | 121.4 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Box/Case (2 pieces), Pallet Layer (10 pieces), Pallet (20 pieces) |
| Product Line | |
| Product Series | TPL Series |
| Model | TPL121800 |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | TPL121800FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 180 Ah @8 Hr |
| Capacity @20 Hr | 180 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 12 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 3.6 mOhms |
| Maximum Current | 800 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 21.54 |
| Width (In) | 4.94 |
| Height - Case (In) | 12.72 |
| Height - Overall (In) | 12.72 |
| Length (mm) | 547 |
| Width (mm) | 125 |
| Height - Case (mm) | 320 |
| Height - Overall (mm) | 320 |
| Weight (lb) | 121.4 |
| Weight (kg) | 55.1 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
