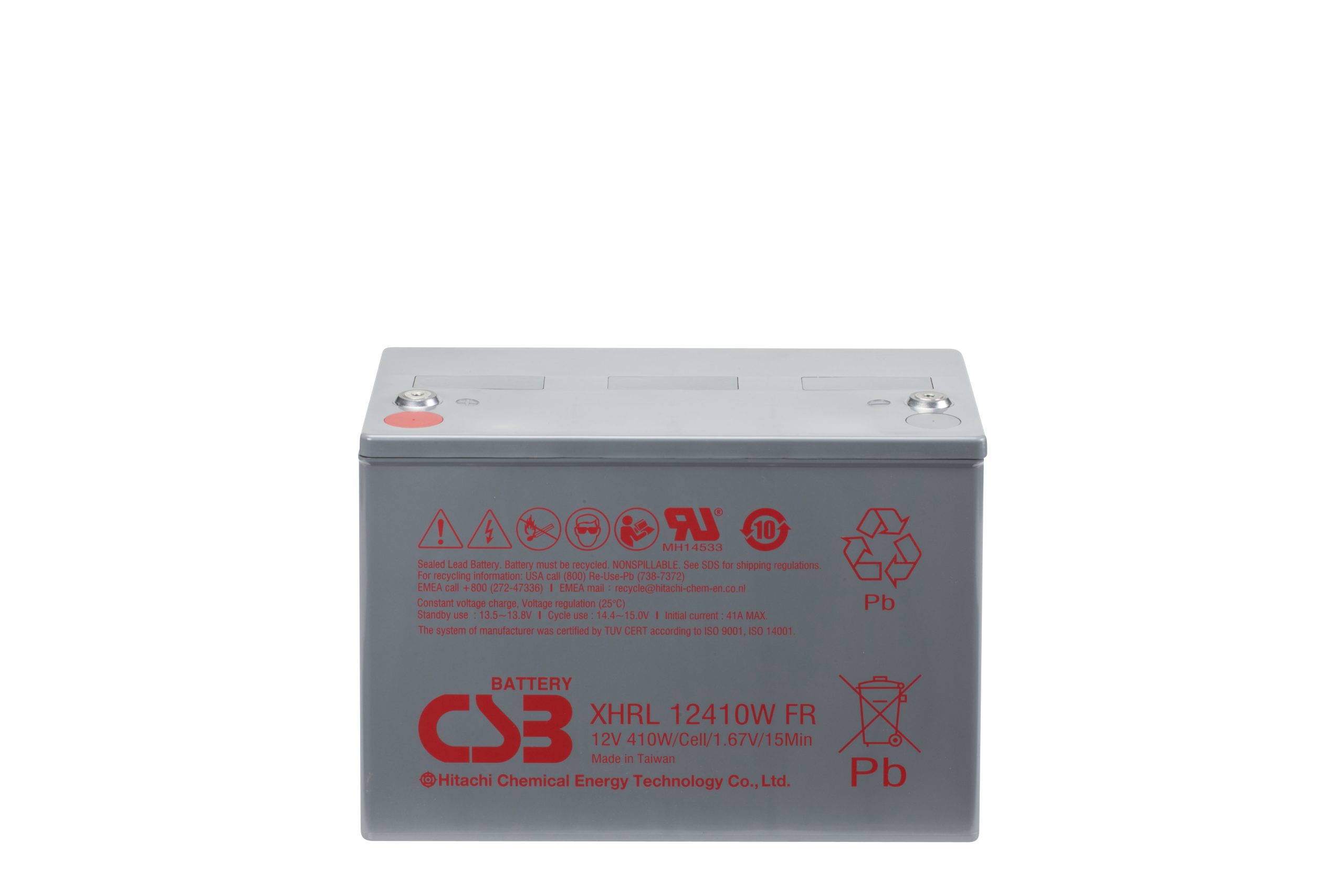

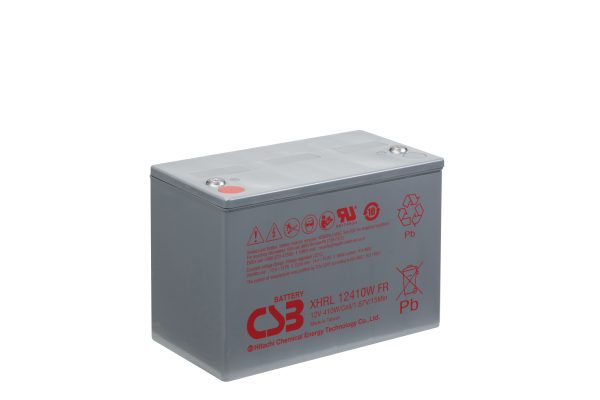

CSB XHRL12410W SLA (AGM) Battery
As low as $238.92 each
CSB XHRL12410W XHRL Series 12 Volt / 103 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB XHRL12410W XHRL Series 12 Volt / 103 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-XHRL12410WRFR |
| Dimensions | 12.17″ (L) x 6.65″ (W) x 8.31″ (H) |
| Dimensions (mm) | 309 mm (L) x 169 mm (W) x 211 mm (H) |
| Weight | 71.7 lbs (32.59 kgs) |
Additional information
| Weight | 71.7 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 Pieces), Pallet Layer (10 Pieces), Pallet (20 Pieces) |
| Product Line | |
| Product Series | XHRL Series |
| Model | XHRL12410W |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | XHRL12410W |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 103 Ah @20 Hr |
| Capacity @20 Hr | 103 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 410 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 12.17 |
| Width (In) | 6.65 |
| Height - Case (In) | 8.31 |
| Height - Overall (In) | 8.43 |
| Length (mm) | 309 |
| Width (mm) | 169 |
| Height - Case (mm) | 211 |
| Height - Overall (mm) | 214 |
| Weight (lb) | 71.7 |
| Weight (kg) | 32.59 |
| BCI Group | Group 27 |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
