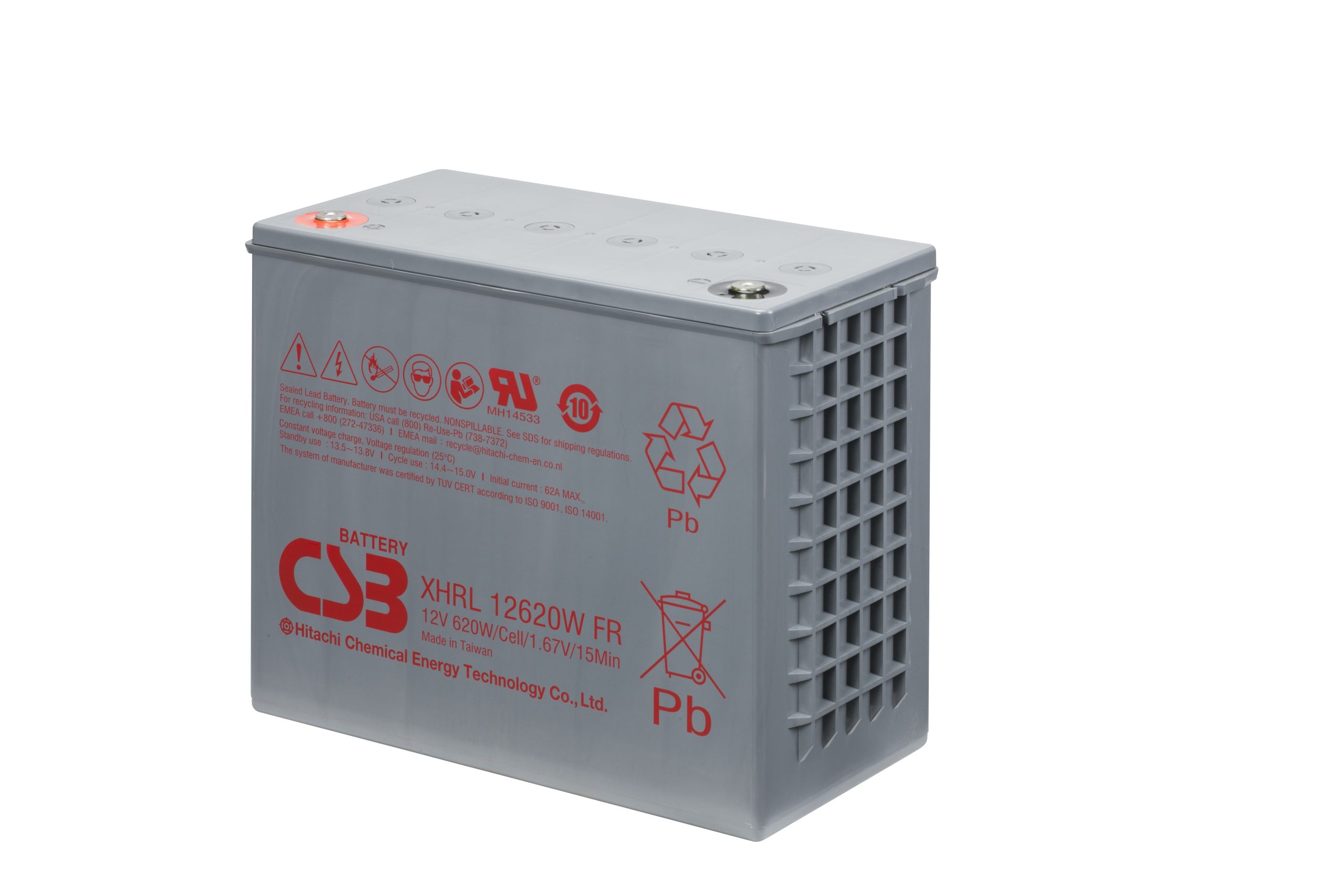

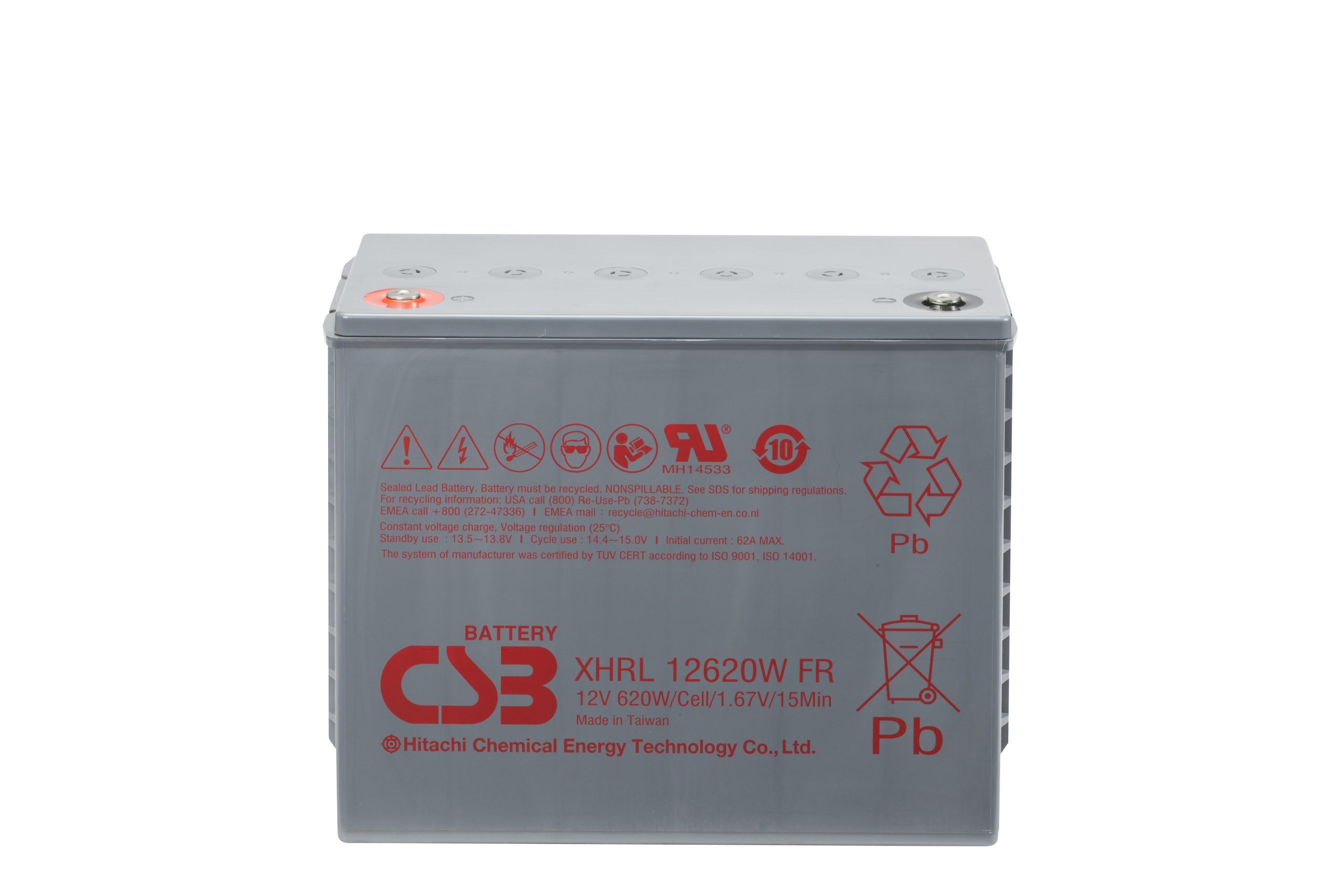

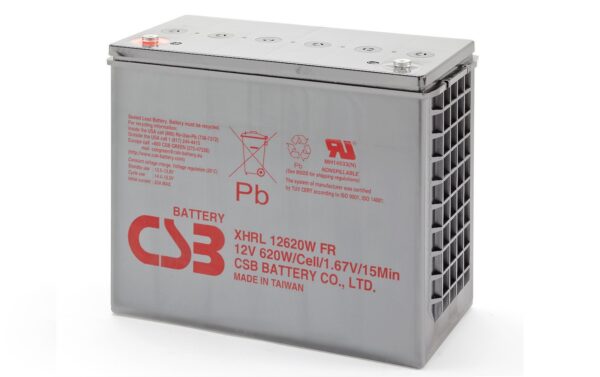

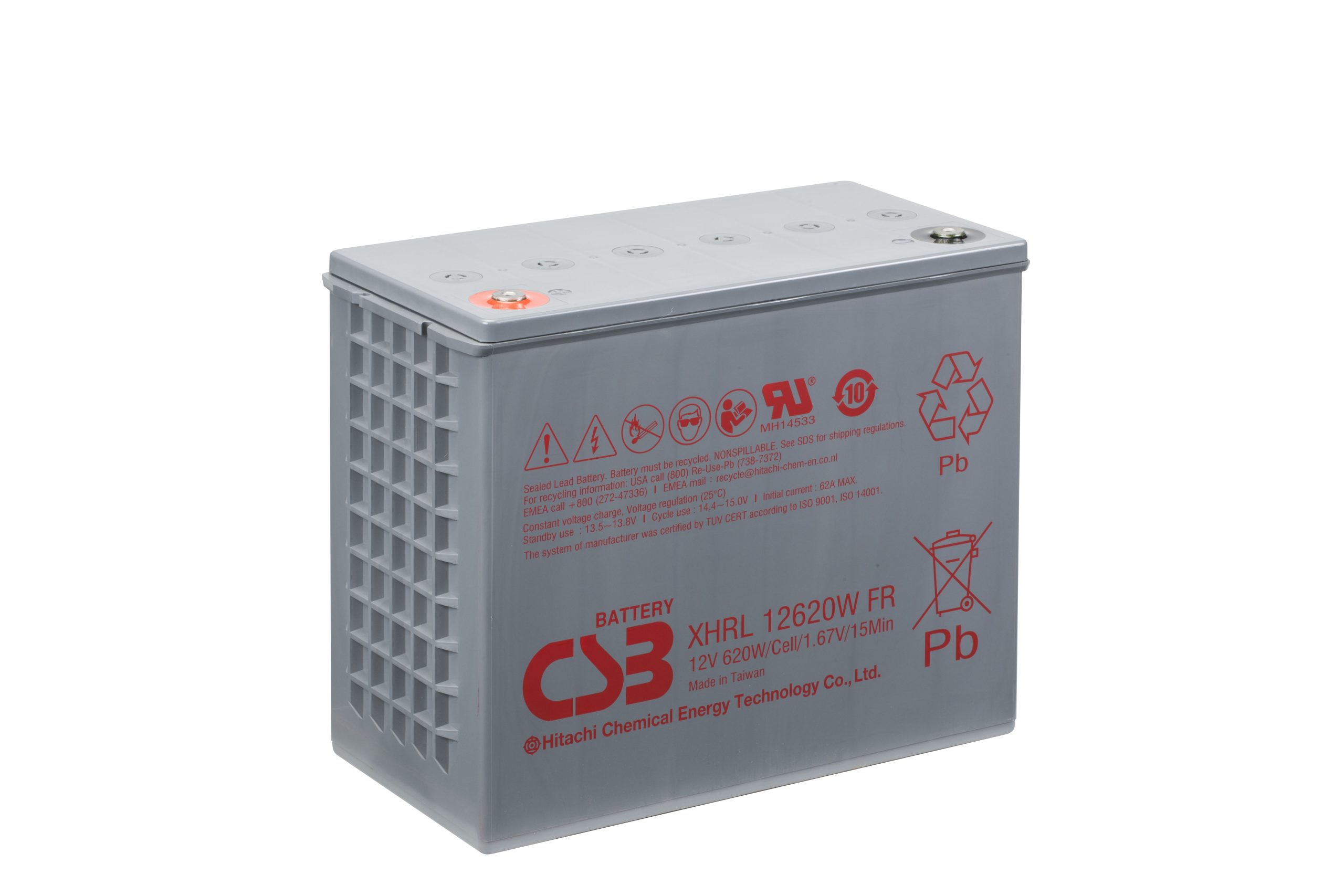

CSB XHRL12620W SLA (AGM) Battery
As low as $401.28 each
CSB XHRL12620W XHRL Series 12 Volt / 155 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB XHRL12620W XHRL Series 12 Volt / 155 Ah @20 Hr with Recessed Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-XHRL12620WRFR |
| Dimensions | 13.50″ (L) x 6.69″ (W) x 10.75″ (H) |
| Dimensions (mm) | 343 mm (L) x 170 mm (W) x 273 mm (H) |
| Weight | 103.8 lbs (47.19 kgs) |
Additional information
| Weight | 103.8 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Pallet Layer (10 pieces), Pallet (20 pieces) |
| Product Line | |
| Product Series | XHRL Series |
| Model | XHRL12620W |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | XHRL12620W |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 155 Ah @20 Hr |
| Capacity @20 Hr | 155 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 620 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 13.50 |
| Width (In) | 6.69 |
| Height - Case (In) | 10.75 |
| Height - Overall (In) | 10.87 |
| Length (mm) | 343 |
| Width (mm) | 170 |
| Height - Case (mm) | 273 |
| Height - Overall (mm) | 276 |
| Weight (lb) | 103.8 |
| Weight (kg) | 47.19 |
| BCI Group | Group 31T |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
