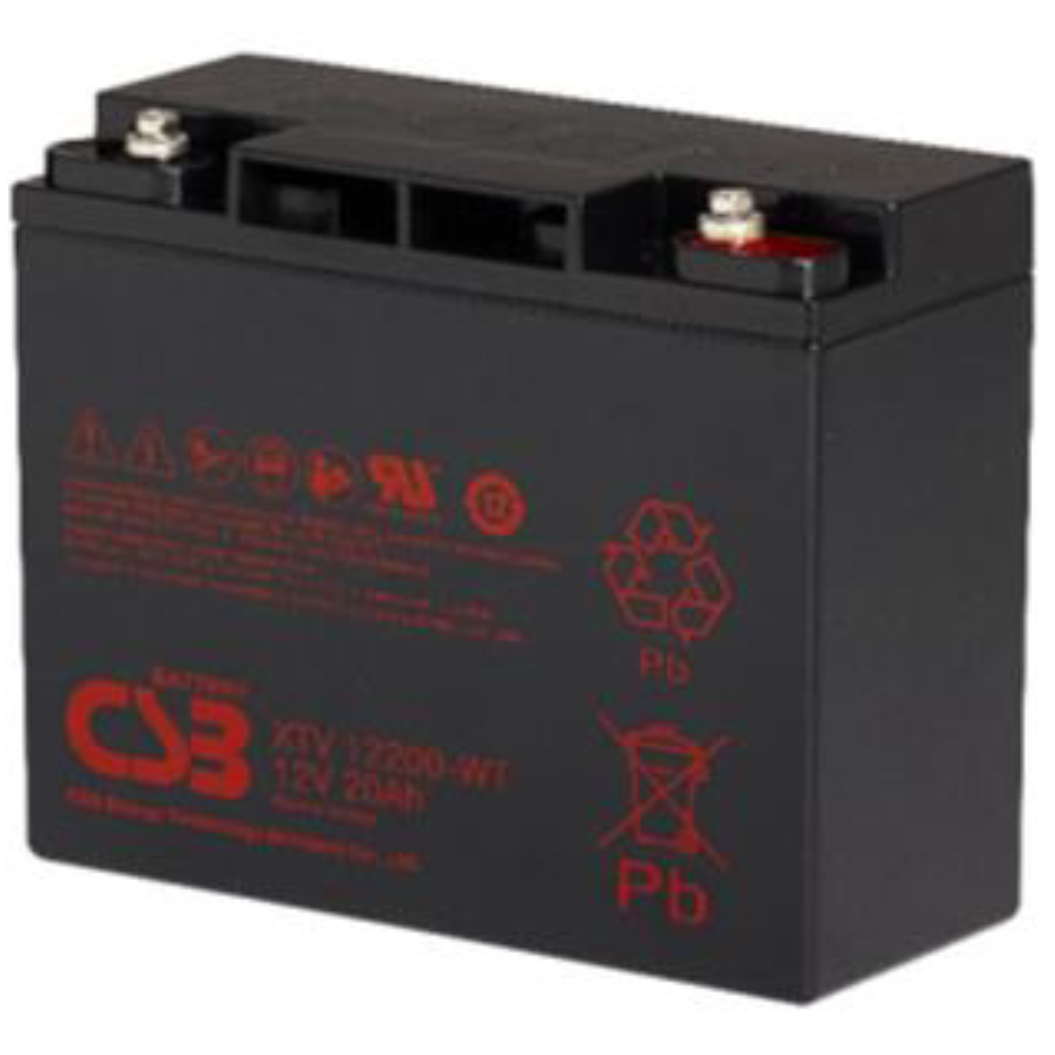

CSB XTV12200-WT SLA (AGM) Battery
As low as $52.02 each
CSB XTV12200-WT XTV Series 12 Volt / 20 Ah @20 Hr with Recessed M5 Terminals and ABS Plastic Case
Loading...
Description
CSB XTV12200-WT XTV Series 12 Volt / 20 Ah @20 Hr with Recessed M5 Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-XTV12200-WTR |
| Dimensions | 7.12″ (L) x 2.99″ (W) x 6.50″ (H) |
| Dimensions (mm) | 181 mm (L) x 76 mm (W) x 165 mm (H) |
| Weight | 14.0 lbs (6.4 kgs) |
Additional information
| Weight | 14.0 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 pieces), Box/Case (4 pieces), Pallet Layer (56 pieces), Pallet (168 pieces) |
| Product Line | |
| Product Series | XTV Series |
| Model | XTV12200-WT |
| Terminal | Recessed M5 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | XTV12200-WT |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 20 Ah @20 Hr |
| Capacity @20 Hr | 20 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Gel |
| Design Life | 12 Years |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 12.2 mOhm |
| Maximum Current | 230 Amp |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | 6.0 Amp |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.12 |
| Width (In) | 2.99 |
| Height - Case (In) | 6.50 |
| Height - Overall (In) | 6.50 |
| Length (mm) | 181 |
| Width (mm) | 76 |
| Height - Case (mm) | 165 |
| Height - Overall (mm) | 165 |
| Weight (lb) | 14.0 |
| Weight (kg) | 6.4 |
| BCI Group | M17 Size |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
