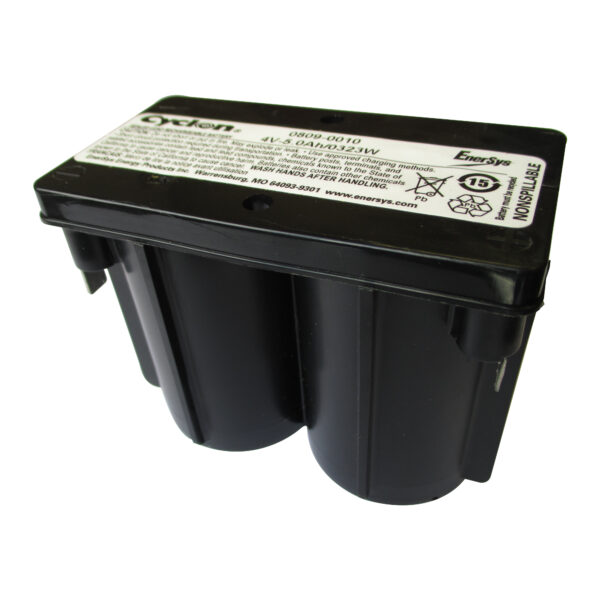

EnerSys Cyclon 0809-0010 Lead Acid (AGM-TPPL) Battery

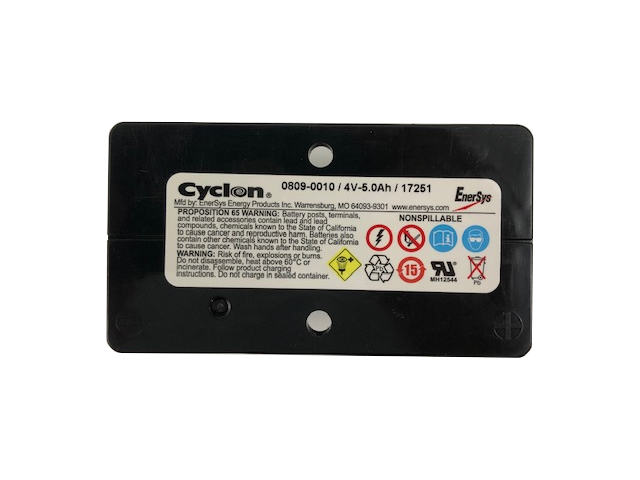

EnerSys Cyclon 0809-0010 Lead Acid (AGM-TPPL) Battery - Image 2

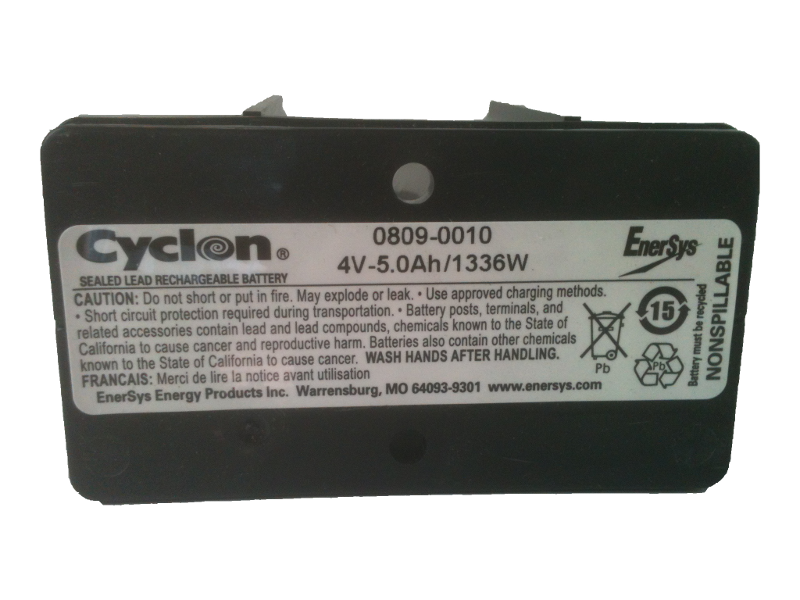

EnerSys Cyclon 0809-0010 Lead Acid (AGM-TPPL) Battery - Image 3

EnerSys Cyclon 0809-0010 Lead Acid (AGM-TPPL) Battery

SKU: EN-0809-0010F2 Categories: 0809-0010, AGM-TPPL, Brands, Chemistry, Cyclon Series, EnerSys, Lead Acid Tags: 0809-0010, 0809-0010 EMB 4V, AGM-TPPL, Cyclon Series, EnerSys, Lead Acid

EnerSys Cyclon Series 0809-0010 4 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

EnerSys Cyclon Series 0809-0010 4 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU	EN-0809-0010F2
Dimensions	3.82″ (L) x 2.13″ (W) x 3.03″ (H)
Dimensions (mm)	97 mm (L) x 54 mm (W) x 77 mm (H)
Weight	1.61 lbs (0.73 kgs)

Additional information

Weight	1.61 lbs
Manufacturer	EnerSys
price-discounts
Product Line
Product Series	Cyclon Series
Model	0809-0010
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	0809-0010
Manufacturers SKU	0809-0010
Deprecated Model #
Applications	High Rate;Deep Cycle
Voltage	4
Capacity (Nominal)	5 Ah @ 10 Hr
Capacity @20 Hr	5.2
Capacity @10 Hr	5
Capacity @1 Hr	3.9
Capacity @15 Min	3.3
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-TPPL
Design Life	10 years
Service Life	6 years
Shelf Life	24 Months
Internal Resistance	7.0 mOhm
Maximum Current	570 Amps
Cycles @ 80% Discharge	300
Standby Charge Voltage	2.27 to 2.35 VPC
Cycle Charge Voltage	2.45 to 2.50 VPC
Maximum Charge Current	1C
Operating Temp Low (°F)	-40
Operating Temp High (°F)	104
Storage Temp Low (°F)	-40
Storage Temp High (°F)	104
Operating Temp Low (°C)	-40
Operating Temp High (°C)	40
Storage Temp Low (°C)	-40
Storage Temp High (°C)	40
Length (In)	3.82
Width (In)	2.13
Height - Case (In)	3.03
Height - Overall (In)	3.03
Length (mm)	97
Width (mm)	54
Height - Case (mm)	77
Height - Overall (mm)	77
Weight (lb)	1.61
Weight (kg)	0.73
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications	UL 1989
Qty Per Box	32
Qty Per Pallet	1024
uncategorized
