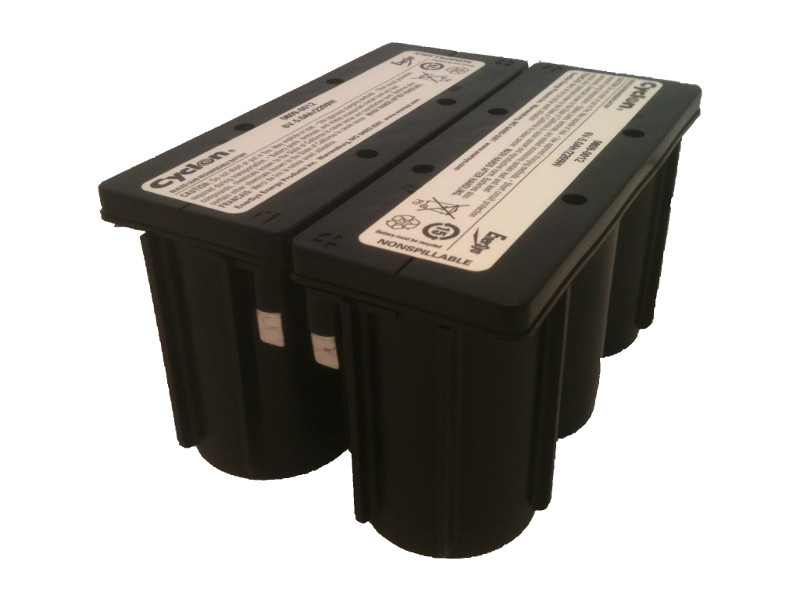

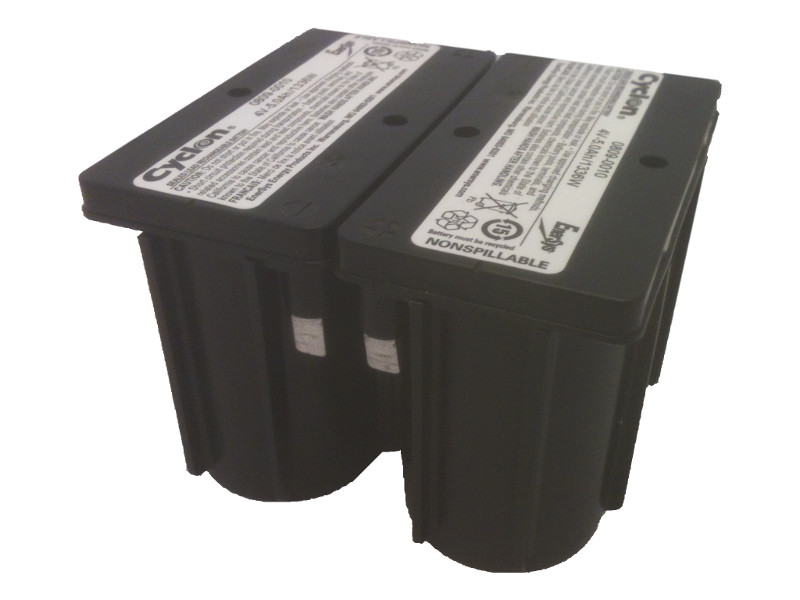

EnerSys Cyclon 0809-0020 Lead Acid (AGM-TPPL) Battery

As low as $55.78 each

EnerSys Cyclon Series 0809-0020 12 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

Loading...

Description

EnerSys Cyclon Series 0809-0020 12 Volt / 5 Ah @ 10 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU EN-0809-0020F2
Dimensions 5.48″ (L) x 4.24″ (W) x 3.02″ (H)
Dimensions (mm) 139.2 mm (L) x 107.6 mm (W) x 76.7 mm (H)
Weight 4.4 lbs (2 kgs)

Additional information

Weight 4.4 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Box/Case (8 pieces), Pallet Layer (96 pieces), Pallet (384 pieces)

Product Line
Product Series

Cyclon Series

Model

0809-0020

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

0809-0020

Manufacturers SKU

0809-0020

Deprecated Model #
Applications

High Rate;Deep Cycle

Voltage

12

Capacity (Nominal)

5 Ah @ 10 Hr

Capacity @20 Hr

5.2

Capacity @10 Hr

5

Capacity @1 Hr

3.9

Capacity @15 Min

3.3

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

10 years

Service Life

6 years

Shelf Life

24 Months

Internal Resistance

20 mOhm

Maximum Current

570 Amps

Cycles @ 80% Discharge

300

Standby Charge Voltage

2.27 to 2.35 VPC

Cycle Charge Voltage

2.45 to 2.50 VPC

Maximum Charge Current

1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

104

Storage Temp Low (°F)

-40

Storage Temp High (°F)

104

Operating Temp Low (°C)

-40

Operating Temp High (°C)

40

Storage Temp Low (°C)

-40

Storage Temp High (°C)

40

Length (In)

5.48

Width (In)

4.24

Height - Case (In)

3.02

Height - Overall (In)

3.02

Length (mm)

139.2

Width (mm)

107.6

Height - Case (mm)

76.7

Height - Overall (mm)

76.7

Weight (lb)

4.4

Weight (kg)

2

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications

UL 1989

Qty Per Box

32

Qty Per Pallet

1024
