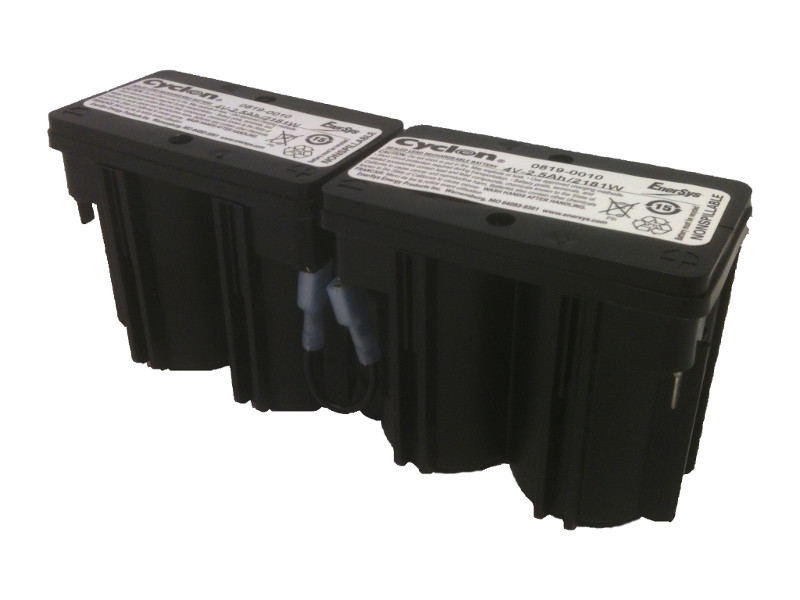

EnerSys Cyclon 0819-0014 Lead Acid (AGM-TPPL) Battery

As low as $35.26 each

EnerSys Cyclon Series 0819-0014 8 Volt / 2.5 Ah @ 10 Hr with F1 (0.187″) Terminals

price-discounts

Each (1 pieces) - $58.76 each

Box/Case (23 pieces) - $45.54 each

Pallet Layer (184 pieces) - $36.73 each

Pallet (736 pieces) - $35.26 each

Description

EnerSys Cyclon Series 0819-0014 8 Volt / 2.5 Ah @ 10 Hr with F1 (0.187″) Terminals

Weight	1.6 lbs
Manufacturer	EnerSys
price-discounts	Each (1 pieces), Box/Case (23 pieces), Pallet Layer (184 pieces), Pallet (736 pieces)
Product Line
Product Series	Cyclon Series
Model	0819-0014
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	0819-0014
Manufacturers SKU	0819-0014
Deprecated Model #
Applications	High Rate;Deep Cycle
Voltage	8
Capacity (Nominal)	2.5 Ah @ 10 Hr
Capacity @20 Hr	2.6
Capacity @10 Hr	2.5
Capacity @1 Hr	1.9
Capacity @15 Min	1.5
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-TPPL
Design Life	10 years
Service Life	6 years
Shelf Life	24 Months
Internal Resistance	20 mOhm
Maximum Current	400 Amps
Cycles @ 80% Discharge	300
Standby Charge Voltage	2.27 to 2.35 VPC
Cycle Charge Voltage	2.45 to 2.50 VPC
Maximum Charge Current	1C
Operating Temp Low (°F)	-40
Operating Temp High (°F)	104
Storage Temp Low (°F)	-40
Storage Temp High (°F)	104
Operating Temp Low (°C)	-40
Operating Temp High (°C)	40
Storage Temp Low (°C)	-40
Storage Temp High (°C)	40
Length (In)	6.3
Width (In)	1.81
Height - Case (In)	2.76
Height - Overall (In)	2.76
Length (mm)	160
Width (mm)	46
Height - Case (mm)	70
Height - Overall (mm)	70
Weight (lb)	1.6
Weight (kg)	0.73
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications	UL 1989
Qty Per Box	32
Qty Per Pallet	1024
