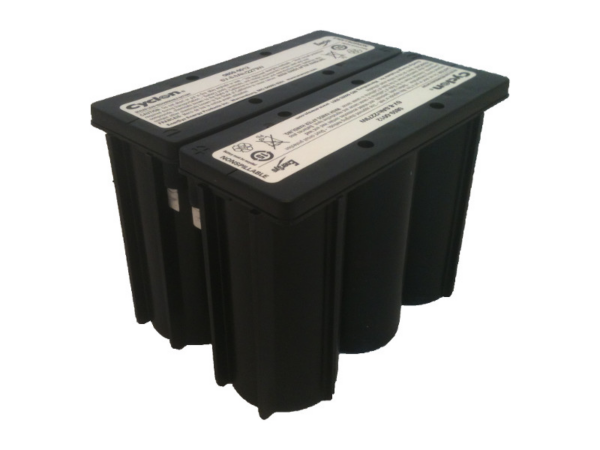

EnerSys Cyclon 0859-0020 Lead Acid (AGM-TPPL) Battery

As low as $69.12 each

EnerSys Cyclon Series 0859-0020 12 Volt / 8 Ah @ 10 Hr with F2 (0.250″) Terminals

price-discounts

Each (1 pieces) - $115.20 each

Box/Case (8 pieces) - $89.28 each

Pallet Layer (96 pieces) - $72.00 each

Pallet (384 pieces) - $69.12 each

Description

EnerSys Cyclon Series 0859-0020 12 Volt / 8 Ah @ 10 Hr with F2 (0.250″) Terminals

Weight	6.29 lbs
Manufacturer	EnerSys
price-discounts	Each (1 pieces), Box/Case (8 pieces), Pallet Layer (96 pieces), Pallet (384 pieces)
Product Line
Product Series	Cyclon Series
Model	0859-0020
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	0859-0020
Manufacturers SKU	0859-0020
Deprecated Model #
Applications	High Rate;Deep Cycle
Voltage	12
Capacity (Nominal)	8 Ah @ 10 Hr
Capacity @20 Hr	8.4
Capacity @10 Hr	8.1
Capacity @1 Hr	6.2
Capacity @15 Min	4.8
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-TPPL
Design Life	10 years
Service Life	6 years
Shelf Life	24 Months
Internal Resistance	12 mOhm
Maximum Current	665 Amps
Cycles @ 80% Discharge	300
Standby Charge Voltage	2.27 to 2.35 VPC
Cycle Charge Voltage	2.45 to 2.50 VPC
Maximum Charge Current	1C
Operating Temp Low (°F)	-40
Operating Temp High (°F)	104
Storage Temp Low (°F)	-40
Storage Temp High (°F)	104
Operating Temp Low (°C)	-40
Operating Temp High (°C)	40
Storage Temp Low (°C)	-40
Storage Temp High (°C)	40
Length (In)	5.48
Width (In)	4.26
Height - Case (In)	4
Height - Overall (In)	4
Length (mm)	139.2
Width (mm)	108.2
Height - Case (mm)	101.6
Height - Overall (mm)	101.6
Weight (lb)	6.29
Weight (kg)	2.86
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications	UL 1989
Qty Per Box	32
Qty Per Pallet	1024
