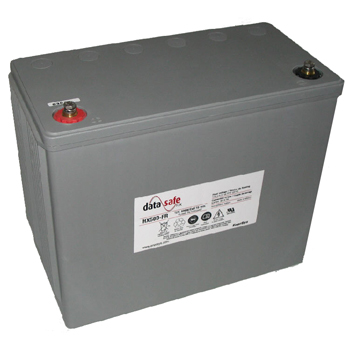

EnerSys DataSafe 12HX505FR Lead Acid Battery

As low as $333.56 each

EnerSys DataSafe HX Series 12HX505FR 12 Volt / 119 Ah @8 Hr with Recessed M6 Terminals

price-discounts

Each (1 pieces) - $472.55 each

Box/Case (10 pieces) - $416.96 each

Pallet Layer (20 pieces) - $389.16 each

Pallet (40 pieces) - $333.56 each

Description

EnerSys DataSafe HX Series 12HX505FR 12 Volt / 119 Ah @8 Hr with Recessed M6 Terminals

Weight	103 lbs
Manufacturer	EnerSys
price-discounts	Each (1 pieces), Box/Case (10 pieces), Pallet Layer (20 pieces), Pallet (40 pieces)
Product Line	DataSafe
Product Series	HX Series
Model	12HX505
Terminal	Recessed M6
Terminal Layout
Case Material	Flame Retardant ABS Plastic
UPC Code
Manufacturers Model #	12HX505FR
Manufacturers SKU	12HX505FR
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	119 Ah @8 Hr
Capacity @20 Hr
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	506 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology
Design Life
Service Life
Shelf Life
Internal Resistance	6
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	13.31
Width (In)	6.81
Height - Case (In)	10.71
Height - Overall (In)	10.71
Length (mm)	338
Width (mm)	173
Height - Case (mm)	272
Height - Overall (mm)	272
Weight (lb)	103
Weight (kg)	46.72
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
