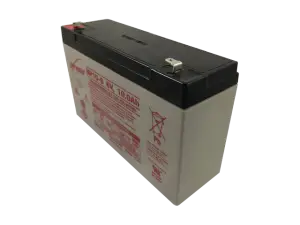

EnerSys Genesis NP10-6T Lead Acid (AGM) Battery

EnerSys Genesis NP10-6T Lead Acid (AGM) Battery - Image 2

EnerSys Genesis NP10-6T Lead Acid (AGM) Battery - Image 3

EnerSys Genesis NP10-6T Lead Acid (AGM) Battery - Image 4

EnerSys Genesis NP10-6T Lead Acid (AGM) Battery

SKU: EN-NP10-6F2 Categories: AGM, Brands, Chemistry, EnerSys, Genesis, Lead Acid, NP Series, NP10-6 Tags: AGM, EnerSys, Genesis, Lead Acid, NP Series, NP10-6, NP10-6T

EnerSys Genesis NP Series NP10-6T 6 Volt / 10 Ah @ 20 Hr with F2 (0.250″) Terminals

The BSI Pricing Advantage

price-discounts

Each (1 pieces)

Add To Wishlist

Description

EnerSys Genesis NP Series NP10-6T 6 Volt / 10 Ah @ 20 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU	EN-NP10-6F2
Dimensions	5.94″ (L) x 1.97″ (W) x 3.98″ (H)
Dimensions (mm)	151 mm (L) x 50 mm (W) x 101 mm (H)
Weight	3.806 lbs (1.73 kgs)

Additional information

Weight	3.806 lbs
Manufacturer	EnerSys
price-discounts	Each (1 pieces)
Product Line	Genesis
Product Series	NP Series
Model	NP10-6
Terminal	F2 (0.250")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	NP10-6T
Manufacturers SKU	NP10-6T
Deprecated Model #
Applications	General Purpose
Voltage	6
Capacity (Nominal)	10 Ah @ 20 Hr
Capacity @20 Hr	10
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM
Design Life	3 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current	6C
Cycles @ 80% Discharge	400
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current	C/10
Operating Temp Low (°F)	-5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	122
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	50
Length (In)	5.94
Width (In)	1.97
Height - Case (In)	3.98
Height - Overall (In)	4.21
Length (mm)	151
Width (mm)	50
Height - Case (mm)	101
Height - Overall (mm)	107
Weight (lb)	3.806
Weight (kg)	1.73
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
