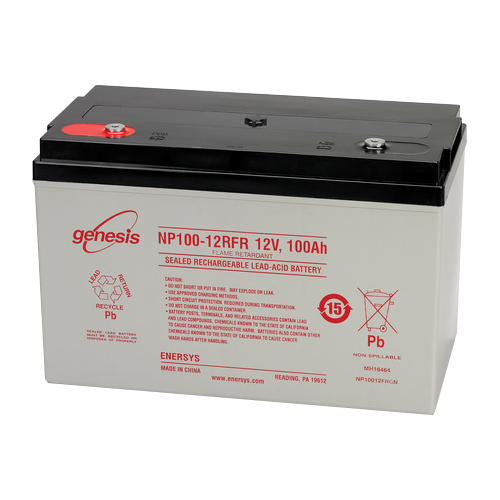

EnerSys Genesis NP100-12RFR Lead Acid (AGM) Battery
EnerSys Genesis NP Series NP100-12RFR 12 Volt / 100 Ah @ 20 Hr with Recessed M6 Terminals
Loading...
Description
EnerSys Genesis NP Series NP100-12RFR 12 Volt / 100 Ah @ 20 Hr with Recessed M6 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NP100-12RFR |
| Dimensions | 12.95″ (L) x 6.85″ (W) x 8.43″ (H) |
| Dimensions (mm) | 329 mm (L) x 174 mm (W) x 214 mm (H) |
| Weight | 72.468 lbs (32.94 kgs) |
Product Notes
Discontinued by EnerSys, equivalents available
Additional information
| Weight | 72.5 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | |
| Product Line | Genesis |
| Product Series | NP Series |
| Model | NP100-12 |
| Terminal | Recessed M6 |
| Terminal Layout | |
| Case Material | Flame Retardant ABS Plastic |
| UPC Code | |
| Manufacturers Model # | NP100-12RFR |
| Manufacturers SKU | NP100-12RFR |
| Deprecated Model # | |
| Applications | General Purpose |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @ 20 Hr |
| Capacity @20 Hr | 100 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM |
| Design Life | 3 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | 6C |
| Cycles @ 80% Discharge | 400 |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | C/10 |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.95 |
| Width (In) | 6.85 |
| Height - Case (In) | 8.43 |
| Height - Overall (In) | 8.43 |
| Length (mm) | 329 |
| Width (mm) | 174 |
| Height - Case (mm) | 214 |
| Height - Overall (mm) | 214 |
| Weight (lb) | 72.468 |
| Weight (kg) | 32.94 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
