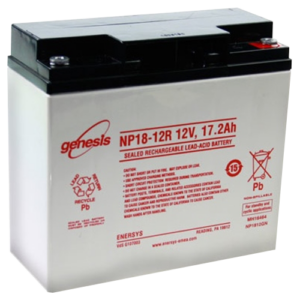

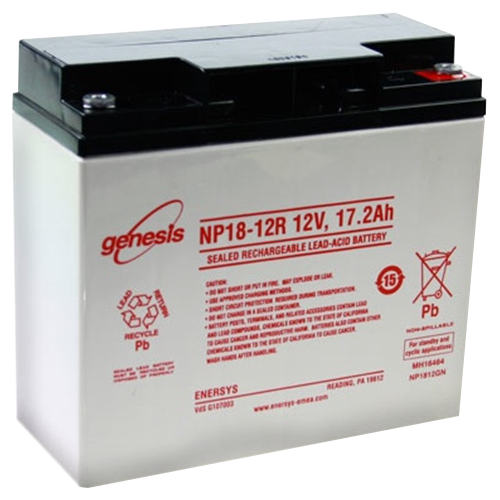

EnerSys Genesis NP18-12R Lead Acid (AGM) Battery

EnerSys Genesis NP18-12R Lead Acid (AGM) Battery

SKU: EN-NP18-12R Categories: AGM, Brands, Chemistry, EnerSys, Genesis, Lead Acid, NP Series, NP18-12 Tags: AGM, EnerSys, Genesis, Lead Acid, NP Series, NP18-12, NP18-12R

EnerSys Genesis NP Series NP18-12R 12 Volt / 17.2 Ah @ 20 Hr with Recessed M5 Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

EnerSys Genesis NP Series NP18-12R 12 Volt / 17.2 Ah @ 20 Hr with Recessed M5 Terminals

Specifications
Battery Store SKU	EN-NP18-12R
Dimensions	7.13″ (L) x 2.99″ (W) x 6.57″ (H)
Dimensions (mm)	181 mm (L) x 76 mm (W) x 167 mm (H)
Weight	13.574 lbs (6.17 kgs)

Additional information

Weight	13.574 lbs
Manufacturer	EnerSys
price-discounts
Product Line	Genesis
Product Series	NP Series
Model	NP18-12
Terminal	Recessed M5
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	NP18-12R
Manufacturers SKU	NP18-12R
Deprecated Model #
Applications	General Purpose
Voltage	12
Capacity (Nominal)	17.2 Ah @ 20 Hr
Capacity @20 Hr	17.2
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM
Design Life	3 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current	6C
Cycles @ 80% Discharge	400
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current	C/10
Operating Temp Low (°F)	-5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	122
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	50
Length (In)	7.13
Width (In)	2.99
Height - Case (In)	6.57
Height - Overall (In)	6.57
Length (mm)	181
Width (mm)	76
Height - Case (mm)	167
Height - Overall (mm)	167
Weight (lb)	13.574
Weight (kg)	6.17
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
