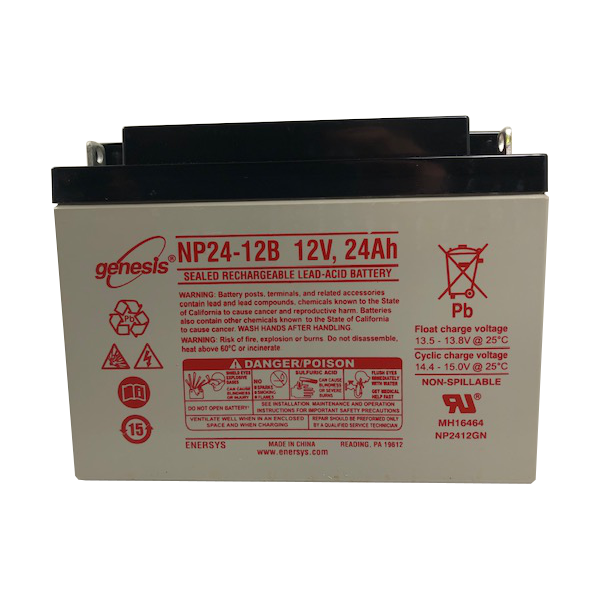

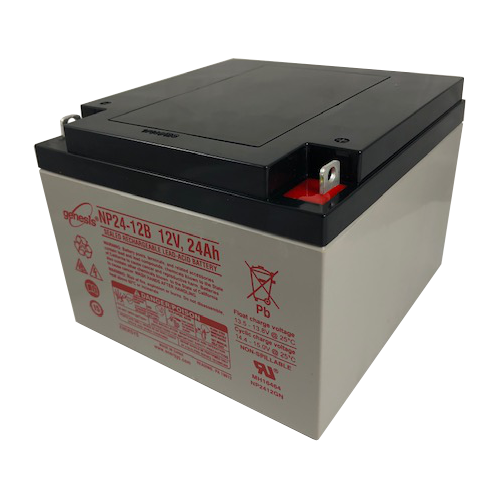

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery

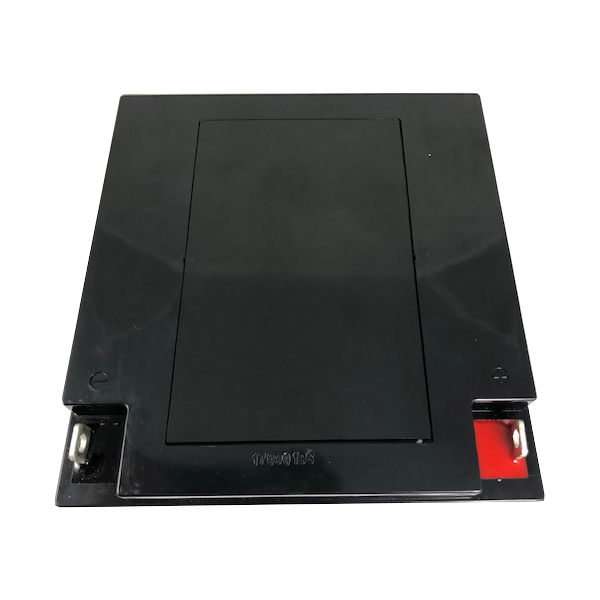

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery - Image 2

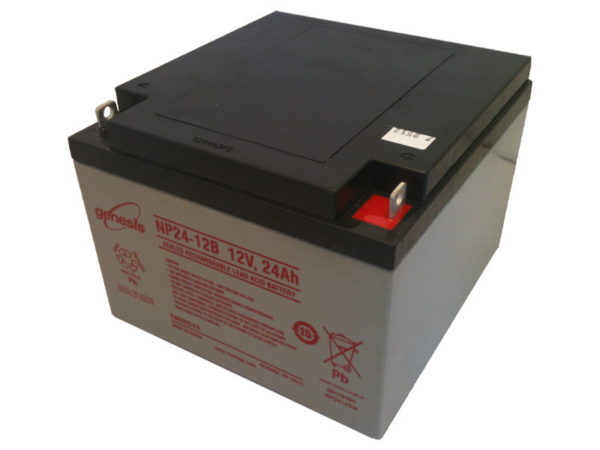

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery - Image 3

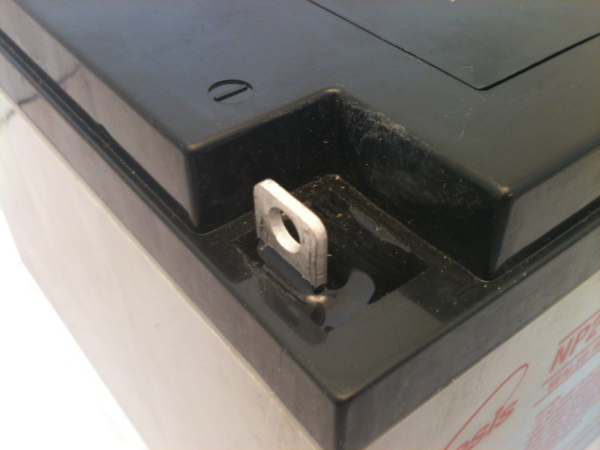

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery - Image 4

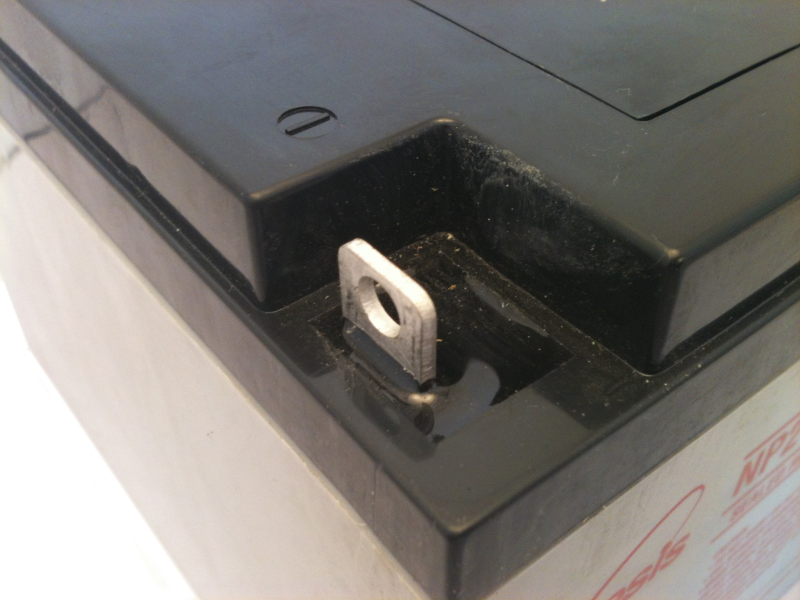

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery - Image 5

EnerSys Genesis NP24-12B Lead Acid (AGM) Battery

SKU: EN-NP24-12NB Categories: AGM, Brands, Chemistry, EnerSys, Genesis, Lead Acid, NP Series, NP24-12 Tags: AGM, EnerSys, Genesis, Lead Acid, NP Series, NP24-12, NP24-12B

EnerSys Genesis NP Series NP24-12B 12 Volt / 24 Ah @ 20 Hr with Nut & Bolt (M5) Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

EnerSys Genesis NP Series NP24-12B 12 Volt / 24 Ah @ 20 Hr with Nut & Bolt (M5) Terminals

Specifications
Battery Store SKU	EN-NP24-12NB
Dimensions	6.54″ (L) x 6.89″ (W) x 4.92″ (H)
Dimensions (mm)	166 mm (L) x 175 mm (W) x 125 mm (H)
Weight	19.954 lbs (9.07 kgs)

Additional information

Weight	19.954 lbs
Manufacturer	EnerSys
price-discounts
Product Line	Genesis
Product Series	NP Series
Model	NP24-12
Terminal	Nut & Bolt (M5)
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	NP24-12B
Manufacturers SKU	NP24-12B
Deprecated Model #
Applications	General Purpose
Voltage	12
Capacity (Nominal)	24 Ah @ 20 Hr
Capacity @20 Hr	24
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM
Design Life	3 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current	6C
Cycles @ 80% Discharge	400
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current	C/10
Operating Temp Low (°F)	-5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	122
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	50
Length (In)	6.54
Width (In)	6.89
Height - Case (In)	4.92
Height - Overall (In)	5.39
Length (mm)	166
Width (mm)	175
Height - Case (mm)	125
Height - Overall (mm)	137
Weight (lb)	19.954
Weight (kg)	9.07
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
