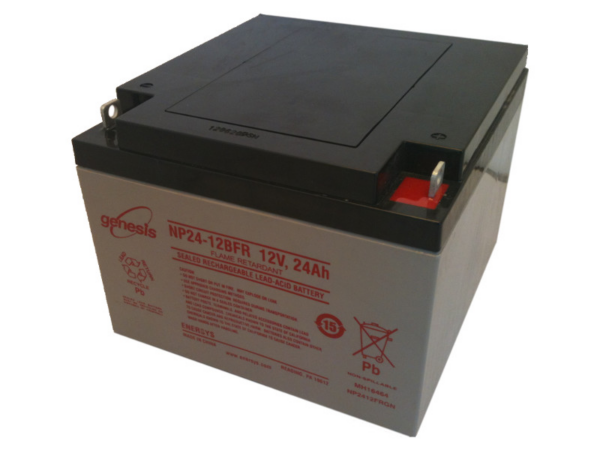

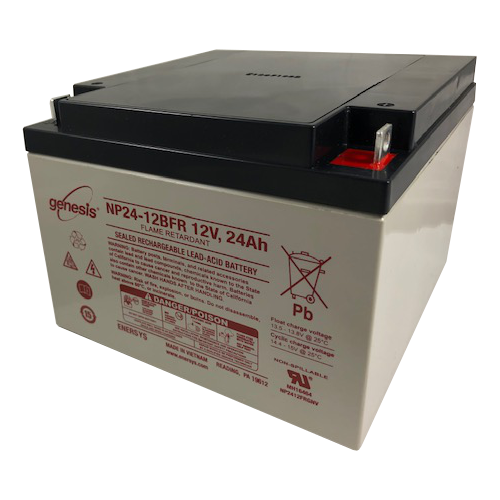

EnerSys Genesis NP24-12BFR Lead Acid (AGM) Battery

As low as $70.36 each

EnerSys Genesis NP Series NP24-12BFR 12 Volt / 24 Ah @ 20 Hr with Nut & Bolt (M5) Terminals

Loading...

Description

EnerSys Genesis NP Series NP24-12BFR 12 Volt / 24 Ah @ 20 Hr with Nut & Bolt (M5) Terminals

Specifications
Battery Store SKU EN-NP24-12NBFR
Dimensions 6.54″ (L) x 6.89″ (W) x 4.92″ (H)
Dimensions (mm) 166 mm (L) x 175 mm (W) x 125 mm (H)
Weight 19.954 lbs (9.07 kgs)

Additional information

Weight 19.954 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Box/Case (2 pieces), Pallet Layer (30 pieces), Pallet (120 pieces)

Product Line

Genesis

Product Series

NP Series

Model

NP24-12

Terminal

Nut & Bolt (M5)

Terminal Layout
Case Material

Flame Retardant ABS Plastic

UPC Code
Manufacturers Model #

NP24-12BFR

Manufacturers SKU

NP24-12BFR

Deprecated Model #
Applications

General Purpose

Voltage

12

Capacity (Nominal)

24 Ah @ 20 Hr

Capacity @20 Hr

24

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM

Design Life

3 Years

Service Life

3-5 Years

Shelf Life

6 Months

Internal Resistance
Maximum Current

6C

Cycles @ 80% Discharge

400

Standby Charge Voltage

13.5 to 13.8 Volts

Cycle Charge Voltage

14.4 to 15.0 Volts

Maximum Charge Current

C/10

Operating Temp Low (°F)

-5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

122

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

50

Length (In)

6.54

Width (In)

6.89

Height - Case (In)

4.92

Height - Overall (In)

5.39

Length (mm)

166

Width (mm)

175

Height - Case (mm)

125

Height - Overall (mm)

137

Weight (lb)

19.954

Weight (kg)

9.07

BCI Group
Manufacturers Warranty

12 Months

Transportation Notes
Certifications
Qty Per Box

2

Qty Per Pallet

120
