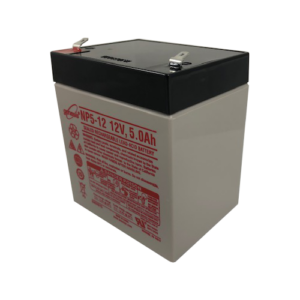

EnerSys Genesis NP5-12T Lead Acid (AGM) Battery
As low as $15.19 each
EnerSys Genesis NP Series NP5-12T 12 Volt / 5 Ah @ 20 Hr with F2 (0.250″) Terminals
Loading...
Description
EnerSys Genesis NP Series NP5-12T 12 Volt / 5 Ah @ 20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NP5-12F2 |
| Dimensions | 3.54″ (L) x 2.76″ (W) x 3.98″ (H) |
| Dimensions (mm) | 90 mm (L) x 70 mm (W) x 101 mm (H) |
| Weight | 3.872 lbs (1.76 kgs) |
Additional information
| Weight | 3.872 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces), Box/Case (10 pieces), Pallet Layer (90 pieces), Pallet (360 pieces) |
| Product Line | Genesis |
| Product Series | NP Series |
| Model | NP5-12 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | NP5-12T |
| Manufacturers SKU | NP5-12T |
| Deprecated Model # | |
| Applications | General Purpose |
| Voltage | 12 |
| Capacity (Nominal) | 5 Ah @ 20 Hr |
| Capacity @20 Hr | 5 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM |
| Design Life | 3 Years |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | 6C |
| Cycles @ 80% Discharge | 400 |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | C/10 |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 3.54 |
| Width (In) | 2.76 |
| Height - Case (In) | 3.98 |
| Height - Overall (In) | 4.21 |
| Length (mm) | 90 |
| Width (mm) | 70 |
| Height - Case (mm) | 101 |
| Height - Overall (mm) | 107 |
| Weight (lb) | 3.872 |
| Weight (kg) | 1.76 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 10 |
| Qty Per Pallet | 500 |
| uncategorized |
