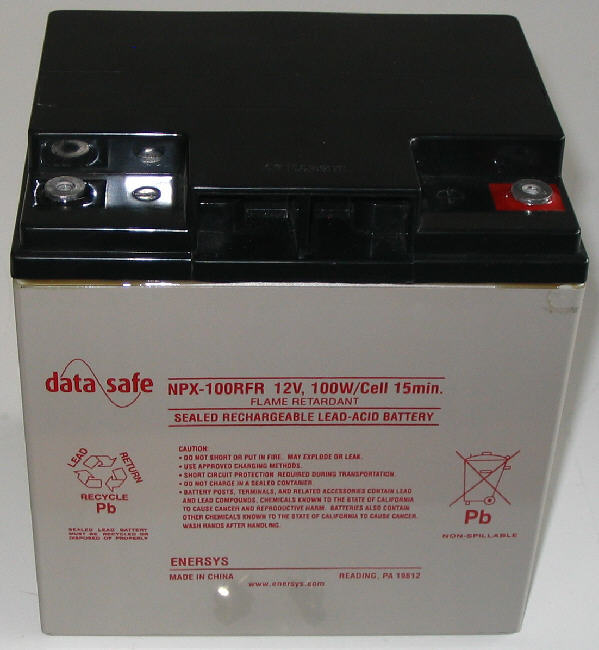

EnerSys DataSafe NPX-100RFR Lead Acid Battery
As low as $80.90 each
EnerSys DataSafe NPX Series NPX-100RFR 12 Volt / 28 Ah @20 Hr with Recessed M5 Terminals
Loading...
Description
EnerSys DataSafe NPX Series NPX-100RFR 12 Volt / 28 Ah @20 Hr with Recessed M5 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NPX-100RFR |
| Dimensions | 6.54″ (L) x 4.92″ (W) x 6.89″ (H) |
| Dimensions (mm) | 166 mm (L) x 125 mm (W) x 175 mm (H) |
| Weight | 21.3 lbs (9.7 kgs) |
Product Notes
Terminals are reversed compared to other batteries of similar size
Additional information
| Weight | 21 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces), Pallet Layer (42 pieces), Pallet (126 pieces) |
| Product Line | DataSafe |
| Product Series | NPX Series |
| Model | NPX-100 |
| Terminal | Recessed M5 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NPX-100RFR |
| Manufacturers SKU | NPX-100RFR |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 28 Ah @20 Hr |
| Capacity @20 Hr | 28 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 95 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | |
| Design Life | |
| Service Life | 3-5 Years |
| Shelf Life | |
| Internal Resistance | 6 |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | 13.5 to 13.8 Volts |
| Maximum Charge Current | 14.4 to 15.0 Volts |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | -5°F (-15°C) to 122°F (50°C) |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 6.54 |
| Width (In) | 4.92 |
| Height - Case (In) | 6.89 |
| Height - Overall (In) | 6.89 |
| Length (mm) | 166 |
| Width (mm) | 125 |
| Height - Case (mm) | 175 |
| Height - Overall (mm) | 175 |
| Weight (lb) | 21.3 |
| Weight (kg) | 9.7 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
