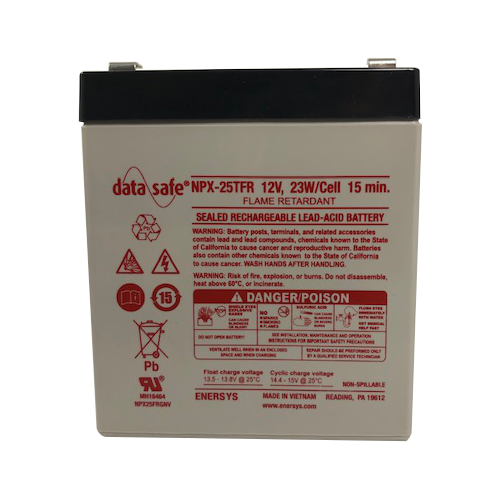

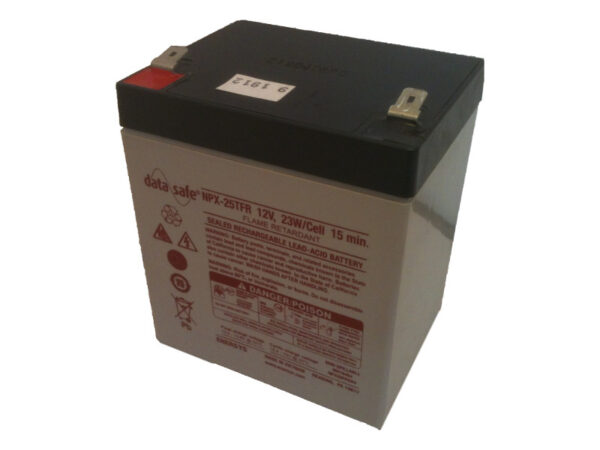

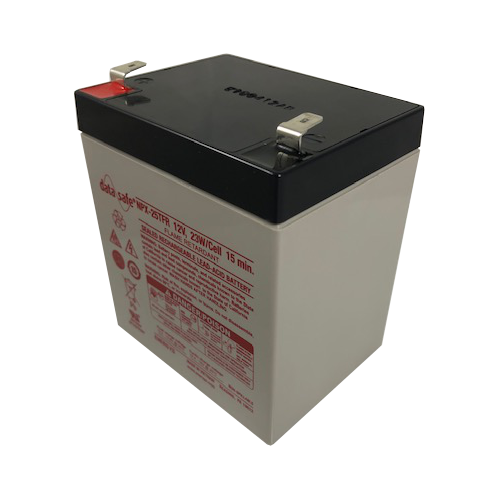

EnerSys DataSafe NPX-25TFR Lead Acid Battery

As low as $28.91 each

EnerSys DataSafe NPX Series NPX-25TFR 12 Volt / 5.0 Ah @20 Hr with F2 (0.250″) Terminals

price-discounts

Each (1 pieces) - $40.95 each

Box/Case (10 pieces) - $36.14 each

Pallet Layer (120 pieces) - $33.73 each

Pallet (600 pieces) - $28.91 each

Description

EnerSys DataSafe NPX Series NPX-25TFR 12 Volt / 5.0 Ah @20 Hr with F2 (0.250″) Terminals

Weight	4.29 lbs
Manufacturer	EnerSys
price-discounts	Each (1 pieces), Box/Case (10 pieces), Pallet Layer (120 pieces), Pallet (600 pieces)
Product Line	DataSafe
Product Series	NPX Series
Model	NPX-25
Terminal	F2 (0.250")
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	NPX-25TFR
Manufacturers SKU	NPX-25TFR
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	5.0 Ah @20 Hr
Capacity @20 Hr	5
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min	23 W @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology
Design Life
Service Life	3-5 Years
Shelf Life
Internal Resistance	6
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage	13.5 to 13.8 Volts
Maximum Charge Current	14.4 to 15.0 Volts
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)	-5°F (-15°C) to 122°F (50°C)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	3.54
Width (In)	2.76
Height - Case (In)	4.21
Height - Overall (In)	4.45
Length (mm)	90
Width (mm)	70
Height - Case (mm)	107
Height - Overall (mm)	113
Weight (lb)	4.29
Weight (kg)	1.95
BCI Group
Manufacturers Warranty	12 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
