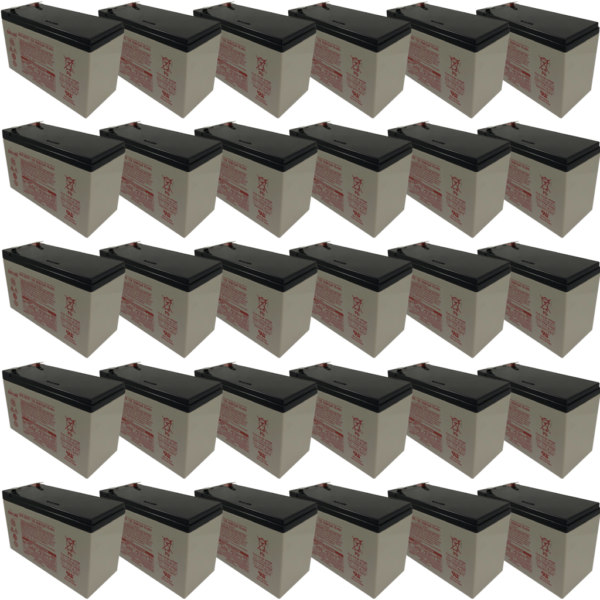

Qty 30 – EnerSys NPX-35TFR SLA (AGM) Batteries
$1,050.00
(Qty 30) EnerSys DataSafe NPX Series NPX-35TFR Batteries – 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals
12 in stock
Loading...
Description
(Qty 30) EnerSys DataSafe NPX Series NPX-35TFR Batteries – 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-Q30V12A008 |
| Dimensions | 5.94″ (L) x 2.56″ (W) x 3.94″ (H) |
| Dimensions (mm) | 151 mm (L) x 65 mm (W) x 100 mm (H) |
| Weight | 182 lbs (84 kgs) |
Additional information
| Weight | 182 lbs |
|---|---|
| Manufacturer | EnerSys |
| Product Line | DataSafe |
| Product Series | NPX Series |
| Model | NPX-35 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NPX-35TFR |
| Manufacturers SKU | NPX-35TFR |
| Deprecated Model # | |
| Applications | |
| Voltage | 360 |
| Capacity (Nominal) | 8.0 Ah @20 Hr |
| Capacity @20 Hr | 8 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 35 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3-5 Years |
| Shelf Life | 12 |
| Internal Resistance | 6 mOhm |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | 13.5 to 13.8 Volts |
| Maximum Charge Current | 14.4 to 15.0 Volts |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 3.94 |
| Height - Overall (In) | 4.17 |
| Length (mm) | 151 |
| Width (mm) | 65 |
| Height - Case (mm) | 100 |
| Height - Overall (mm) | 106 |
| Weight (lb) | 182 |
| Weight (kg) | 84 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 8 |
| Qty Per Pallet |
