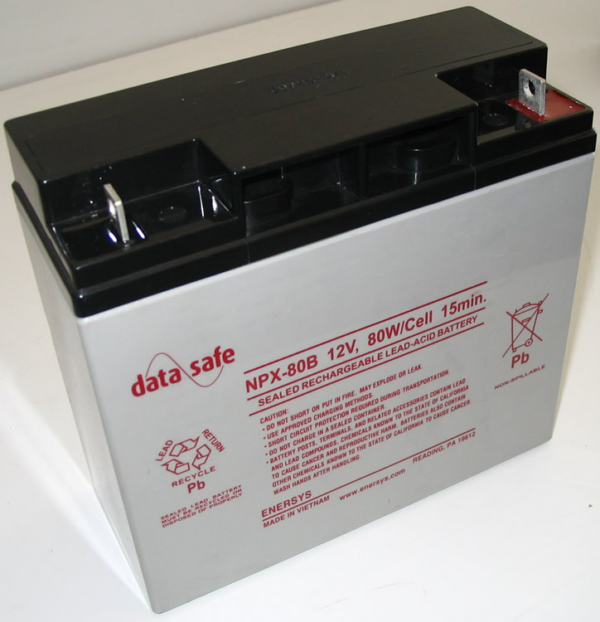

EnerSys DataSafe NPX-80 Lead Acid Battery
EnerSys DataSafe NPX Series NPX-80 12 Volt / 20 Ah @20 Hr with Nut & Bolt (M5) Terminals
Loading...
Description
EnerSys DataSafe NPX Series NPX-80 12 Volt / 20 Ah @20 Hr with Nut & Bolt (M5) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NPX-80NB |
| Dimensions | 7.13″ (L) x 2.99″ (W) x 6.57″ (H) |
| Dimensions (mm) | 181 mm (L) x 76 mm (W) x 167 mm (H) |
| Weight | 13.8 lbs (6.29 kgs) |
Additional information
| Weight | 13.8 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces) |
| Product Line | DataSafe |
| Product Series | NPX Series |
| Model | NPX-80 |
| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | NPX-80 |
| Manufacturers SKU | NPX-80 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 20 Ah @20 Hr |
| Capacity @20 Hr | 20 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | 80 W @15 Min |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | |
| Design Life | |
| Service Life | 3-5 Years |
| Shelf Life | |
| Internal Resistance | 6 |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | 13.5 to 13.8 Volts |
| Maximum Charge Current | 14.4 to 15.0 Volts |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | -5°F (-15°C) to 122°F (50°C) |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 7.13 |
| Width (In) | 2.99 |
| Height - Case (In) | 6.57 |
| Height - Overall (In) | 7.05 |
| Length (mm) | 181 |
| Width (mm) | 76 |
| Height - Case (mm) | 167 |
| Height - Overall (mm) | 179 |
| Weight (lb) | 13.8 |
| Weight (kg) | 6.29 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 4 |
| Qty Per Pallet | 180 |
| uncategorized |
