EnerSys Northstar NSB 100FT HT RED Lead Acid Battery
EnerSys Northstar HT Red Series NSB 100FT HT RED 12 Volt / 98 Ah @ 8 Hr with Recessed M8 Terminals
Loading...
Description
EnerSys Northstar HT Red Series NSB 100FT HT RED 12 Volt / 98 Ah @ 8 Hr with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NSB100FTHTRRFR |

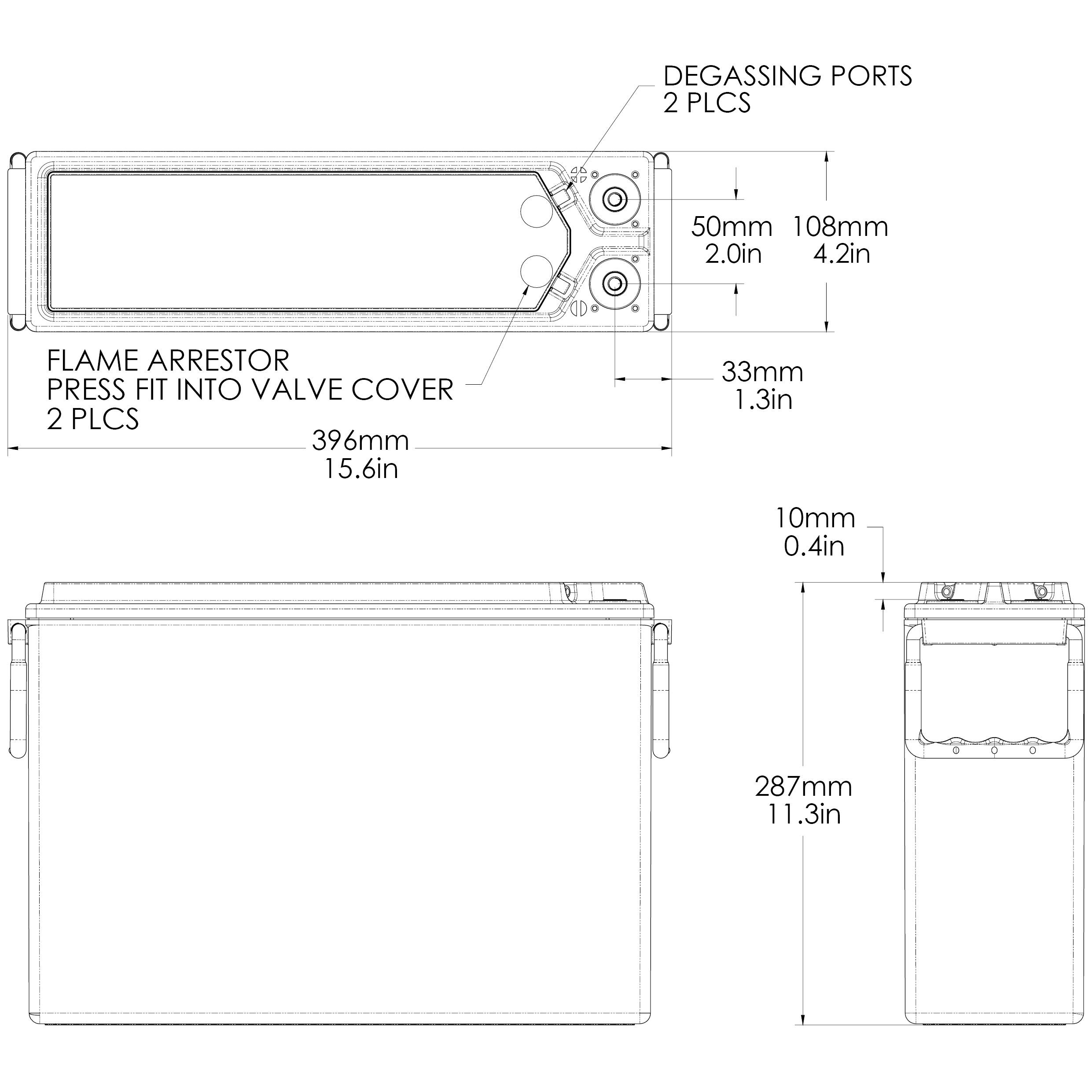

| Dimensions | 15.6″ (L) x 4.2″ (W) x 11.3″ (H) |
| Dimensions (mm) | 396 mm (L) x 108 mm (W) x 287 mm (H) |
| Weight | 72 lbs (33 kgs) |
Additional information
| Weight | 72 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces) |
| Product Line | Northstar |
| Product Series | HT Red Series |
| Model | NSB100FTHTR |
| Terminal | Recessed M8 |
| Case Material | Flame Retardant UL94-V0 |
| Manufacturers Model # | NSB 100FT HT RED |
| Manufacturers SKU | NSB100FTHTR |
| Voltage | 12 |
| Capacity (Nominal) | 98 Ah @ 8 Hr |
| Capacity @10 Hr | 99 |
| Capacity @1 Hr | 77 |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Service Life | 15+ Years |
| Shelf Life | 24 Months |
| Internal Resistance | 3.9 mOhm |
| Maximum Current | 3500 Amps |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Length (In) | 15.6 |
| Width (In) | 4.2 |
| Height - Case (In) | 11.3 |
| Height - Overall (In) | 11.3 |
| Length (mm) | 396 |
| Width (mm) | 108 |
| Height - Case (mm) | 287 |
| Height - Overall (mm) | 287 |
| Weight (lb) | 72 |
| Weight (kg) | 33 |
