EnerSys Northstar NSB 155FT RED Lead Acid Battery
EnerSys Northstar Red Series NSB 155FT RED 12 Volt / 150 Ah @ 8 Hr with Recessed M8 Terminals
Loading...
Description
EnerSys Northstar Red Series NSB 155FT RED 12 Volt / 150 Ah @ 8 Hr with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NSB155FTREDRFR |

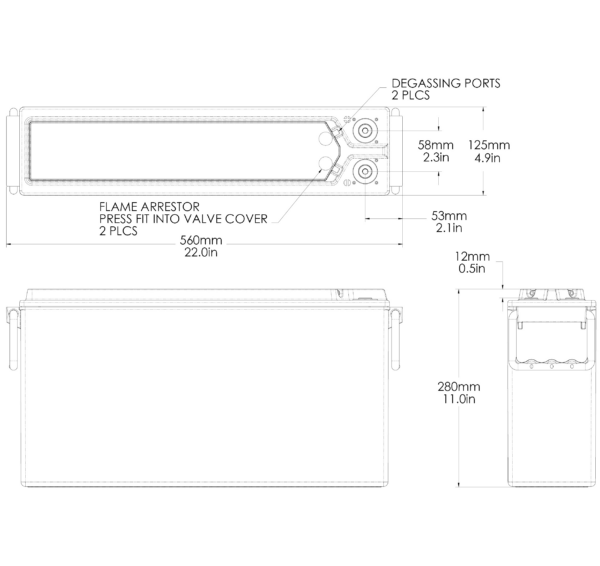

| Dimensions | 22″ (L) x 4.9″ (W) x 11″ (H) |
| Dimensions (mm) | 560 mm (L) x 125 mm (W) x 280 mm (H) |
| Weight | 101 lbs (46 kgs) |
Additional information
| Weight | 101 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces) |
| Product Line | Northstar |
| Product Series | Red Series |
| Model | NSB155FTRED |
| Terminal | Recessed M8 |
| Case Material | Flame Retardant UL94-V0 |
| Manufacturers Model # | NSB 155FT RED |
| Manufacturers SKU | NSB155FTRED |
| Voltage | 12 |
| Capacity (Nominal) | 150 Ah @ 8 Hr |
| Capacity @10 Hr | 153 |
| Capacity @1 Hr | 106 |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Service Life | 15+ Years |
| Shelf Life | 24 Months |
| Internal Resistance | 3.1 mOhm |
| Maximum Current | 4200 Amps |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Length (In) | 22 |
| Width (In) | 4.9 |
| Height - Case (In) | 11 |
| Height - Overall (In) | 11 |
| Length (mm) | 560 |
| Width (mm) | 125 |
| Height - Case (mm) | 280 |
| Height - Overall (mm) | 280 |
| Weight (lb) | 101 |
| Weight (kg) | 46 |
