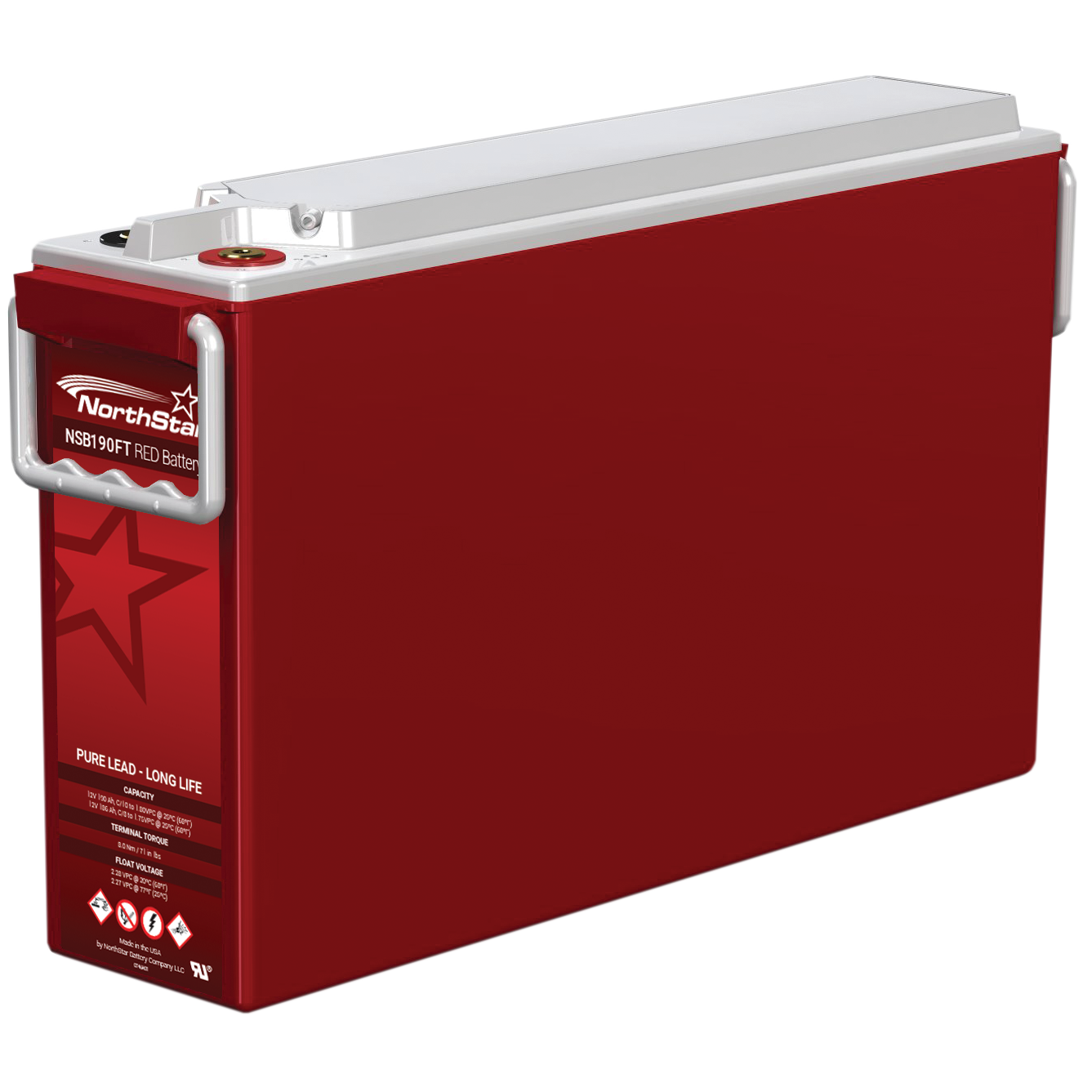

EnerSys Northstar NSB 190FT RED Lead Acid Battery

EnerSys Northstar NSB 190FT RED Lead Acid Battery - Image 2

EnerSys Northstar NSB 190FT RED Lead Acid Battery

SKU: EN-NSB190FTREDRFR Categories: AGM-TPPL, Brands, Chemistry, EnerSys, Lead Acid, Northstar, NSB190FTRED, Red Series Tags: AGM-TPPL, EnerSys, Lead Acid, Northstar, NSB 190FT RED, NSB190FTRED, Red Series

EnerSys Northstar Red Series NSB 190FT RED 12 Volt / 183 Ah @ 8 Hr with Recessed M8 Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

EnerSys Northstar Red Series NSB 190FT RED 12 Volt / 183 Ah @ 8 Hr with Recessed M8 Terminals

Specifications
Battery Store SKU	EN-NSB190FTREDRFR
Dimensions	22″ (L) x 4.9″ (W) x 12.6″ (H)
Dimensions (mm)	560 mm (L) x 125 mm (W) x 320 mm (H)
Weight	123 lbs (56 kgs)

Additional information

Weight	123 lbs
Manufacturer	EnerSys
price-discounts
Product Line	Northstar
Product Series	Red Series
Model	NSB190FTRED
Terminal	Recessed M8
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	NSB 190FT RED
Manufacturers SKU	NSB190FTRED
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	183 Ah @ 8 Hr
Capacity @20 Hr
Capacity @10 Hr	187
Capacity @1 Hr	123
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-TPPL
Design Life
Service Life	15+ Years
Shelf Life	24 Months
Internal Resistance	2.8 mOhm
Maximum Current	5000 Amps
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)	-40
Operating Temp High (°F)	149
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)	-40
Operating Temp High (°C)	65
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	22
Width (In)	4.9
Height - Case (In)	12.6
Height - Overall (In)	12.6
Length (mm)	560
Width (mm)	125
Height - Case (mm)	320
Height - Overall (mm)	320
Weight (lb)	123
Weight (kg)	56
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
