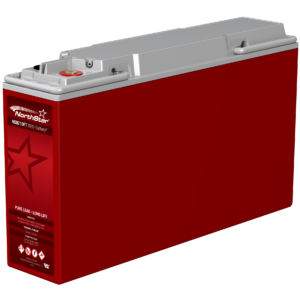

EnerSys Northstar NSB 210FT HT RED Lead Acid Battery

EnerSys Northstar NSB 210FT HT RED Lead Acid Battery - Image 2

EnerSys Northstar NSB 210FT HT RED Lead Acid Battery

SKU: EN-NSB210FTHTRRFR Categories: AGM-TPPL, Brands, Chemistry, EnerSys, HT Red Series, Lead Acid, Northstar, NSB210FTHTR Tags: AGM-TPPL, EnerSys, HT Red Series, Lead Acid, Northstar, NSB 210FT HT RED, NSB210FTHTR

EnerSys Northstar HT Red Series NSB 210FT HT RED 12 Volt / 207 Ah @ 8 Hr with Recessed M8 Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

EnerSys Northstar HT Red Series NSB 210FT HT RED 12 Volt / 207 Ah @ 8 Hr with Recessed M8 Terminals

Specifications
Battery Store SKU	EN-NSB210FTHTRRFR

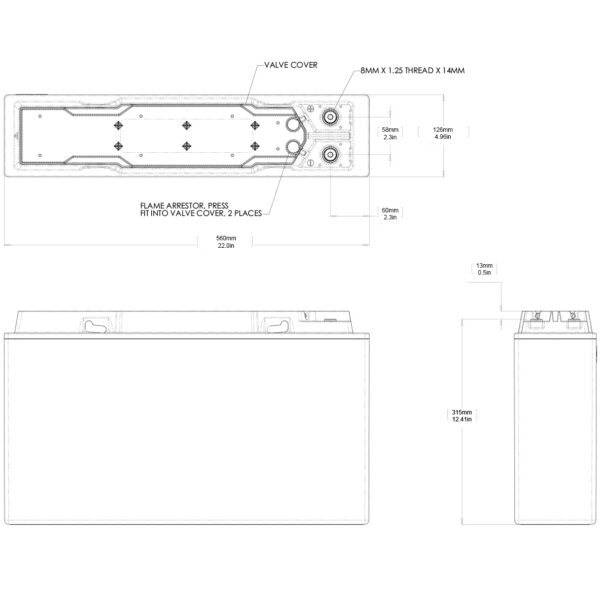

Dimensions	22″ (L) x 4.96″ (W) x 12.9″ (H)
Dimensions (mm)	560 mm (L) x 126 mm (W) x 328 mm (H)
Weight	145 lbs (66 kgs)

Additional information

Weight	145 lbs
Manufacturer	EnerSys
price-discounts
Product Line	Northstar
Product Series	HT Red Series
Model	NSB210FTHTR
Terminal	Recessed M8
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	NSB 210FT HT RED
Manufacturers SKU	NSB210FTHTR
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	207 Ah @ 8 Hr
Capacity @20 Hr
Capacity @10 Hr	209
Capacity @1 Hr	150
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-TPPL
Design Life
Service Life	15+ Years
Shelf Life	24 Months
Internal Resistance	2.6 mOhm
Maximum Current	6000 Amps
Cycles @ 80% Discharge
Standby Charge Voltage
Cycle Charge Voltage
Maximum Charge Current
Operating Temp Low (°F)	-40
Operating Temp High (°F)	149
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)	-40
Operating Temp High (°C)	65
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	22
Width (In)	4.96
Height - Case (In)	12.9
Height - Overall (In)	12.9
Length (mm)	560
Width (mm)	126
Height - Case (mm)	328
Height - Overall (mm)	328
Weight (lb)	145
Weight (kg)	66
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
