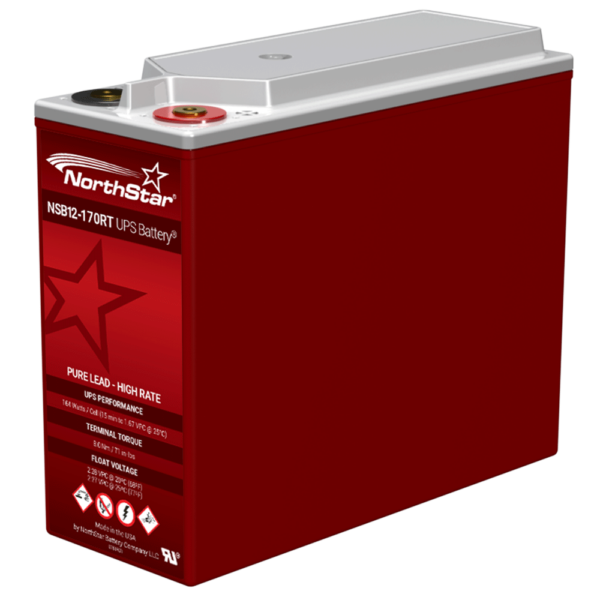

EnerSys Northstar NSB12-170RT Lead Acid Battery
EnerSys Northstar HT Red Series NSB12-170RT 12 Volt / 154 W @ 15 Min with Recessed M8 Terminals
Loading...
Description
EnerSys Northstar HT Red Series NSB12-170RT 12 Volt / 154 W @ 15 Min with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NSB12-170RTRFR |

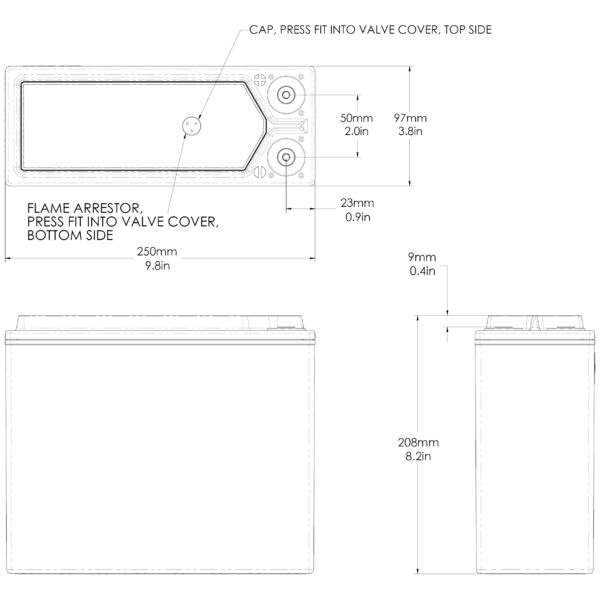

| Dimensions | 9.8″ (L) x 3.8″ (W) x 8.2″ (H) |
| Dimensions (mm) | 250 mm (L) x 97 mm (W) x 208 mm (H) |
| Weight | 33 lbs (15 kgs) |
Additional information
| Weight | 33 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces) |
| Product Line | Northstar |
| Product Series | NSB UPS Series |
| Model | NSB12-170RT |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NSB12-170RT |
| Manufacturers SKU | NSB12-170RT |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 154 W @ 15 Min |
| Capacity @20 Hr | |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Design Life | |
| Service Life | 15+ Years |
| Shelf Life | 24 Months |
| Internal Resistance | 4.1 mOhm |
| Maximum Current | 1500 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 9.8 |
| Width (In) | 3.8 |
| Height - Case (In) | 8.2 |
| Height - Overall (In) | 8.2 |
| Length (mm) | 250 |
| Width (mm) | 97 |
| Height - Case (mm) | 208 |
| Height - Overall (mm) | 208 |
| Weight (lb) | 33 |
| Weight (kg) | 15 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
