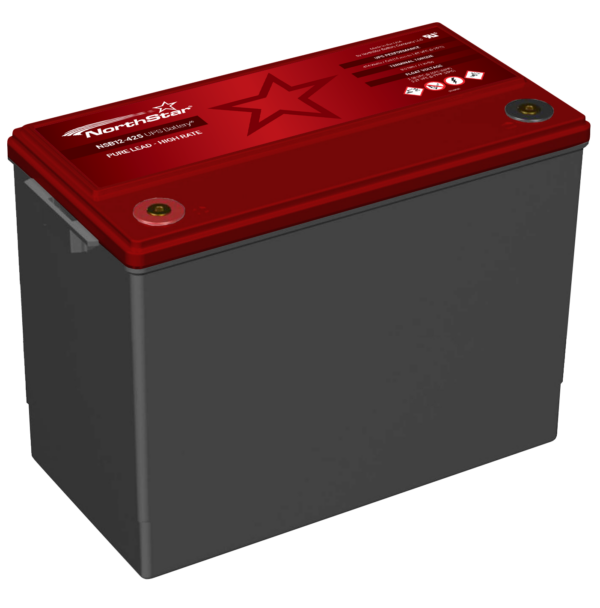

EnerSys Northstar NSB12-425 Lead Acid Battery
EnerSys Northstar NSB UPS Series NSB12-425 12 Volt / 397 W @ 15 Min with Recessed M8 Terminals
Loading...
Description
EnerSys Northstar NSB UPS Series NSB12-425 12 Volt / 397 W @ 15 Min with Recessed M8 Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NSB12-425RFR |
| Dimensions | 13.4″ (L) x 6.8″ (W) x 8.4″ (H) |
| Dimensions (mm) | 341 mm (L) x 173 mm (W) x 213 mm (H) |
| Weight | 75 lbs (34 kgs) |
Additional information
| Weight | 75 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces) |
| Product Line | Northstar |
| Product Series | NSB UPS Series |
| Model | NSB12-425 |
| Terminal | Recessed M8 |
| Case Material | Flame Retardant UL94-V0 |
| Manufacturers Model # | NSB12-425 |
| Manufacturers SKU | NSB12-425 |
| Voltage | 12 |
| Capacity (Nominal) | 397 W @ 15 Min |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Service Life | 15+ Years |
| Shelf Life | 24 Months |
| Internal Resistance | 2.4 mOhm |
| Maximum Current | 3900 Amps |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 149 |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 65 |
| Length (In) | 13.4 |
| Width (In) | 6.8 |
| Height - Case (In) | 8.4 |
| Height - Overall (In) | 8.4 |
| Length (mm) | 341 |
| Width (mm) | 173 |
| Height - Case (mm) | 213 |
| Height - Overall (mm) | 213 |
| Weight (lb) | 75 |
| Weight (kg) | 34 |
