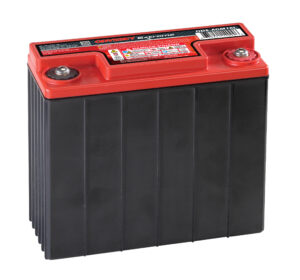

EnerSys Odyssey ODS-AGM16LMJA Lead Acid (AGM-TPPL) Battery

As low as $197.57 each

EnerSys Odyssey Powersports Series ODS-AGM16LMJA 12 Volt / 170 CCA with SAE Post Terminals

Loading...

Description

EnerSys Odyssey Powersports Series ODS-AGM16LMJA 12 Volt / 170 CCA with SAE Post Terminals

Specifications
Battery Store SKU EN-ODS-AGM16LSAMJ
Dimensions 7.2″ (L) x 3″ (W) x 6.6″ (H)
Dimensions (mm) 182 mm (L) x 77 mm (W) x 168 mm (H)
Weight 15 lbs (7 kgs)

Additional information

Weight 15 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Pallet Layer (32 pieces), Pallet (128 pieces)

Product Line

Odyssey

Product Series

Powersports Series

Model

ODS-AGM16L

Terminal

SAE Post

Terminal Layout
Case Material

Metal Jacket

UPC Code
Manufacturers Model #

ODS-AGM16LMJA

Manufacturers SKU
Deprecated Model #

PC680MJA

Applications
Voltage

12

Capacity (Nominal)

170 CCA

Capacity @20 Hr

16

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

170

PHCA

520

Reserve Capacity

24

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

7.2

Width (In)

3

Height - Case (In)

6.6

Height - Overall (In)

6.6

Length (mm)

182

Width (mm)

77

Height - Case (mm)

168

Height - Overall (mm)

168

Weight (lb)

15

Weight (kg)

7

BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
