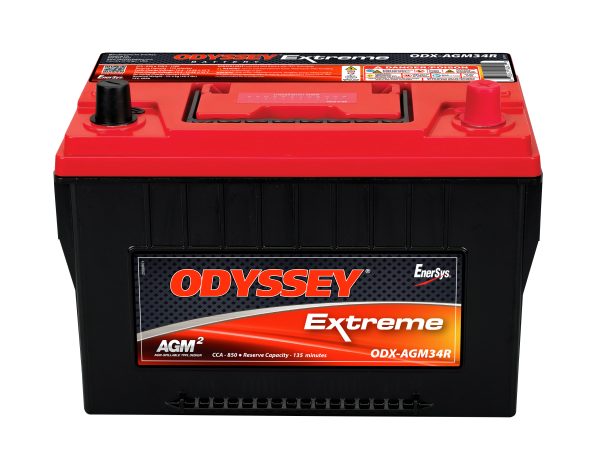

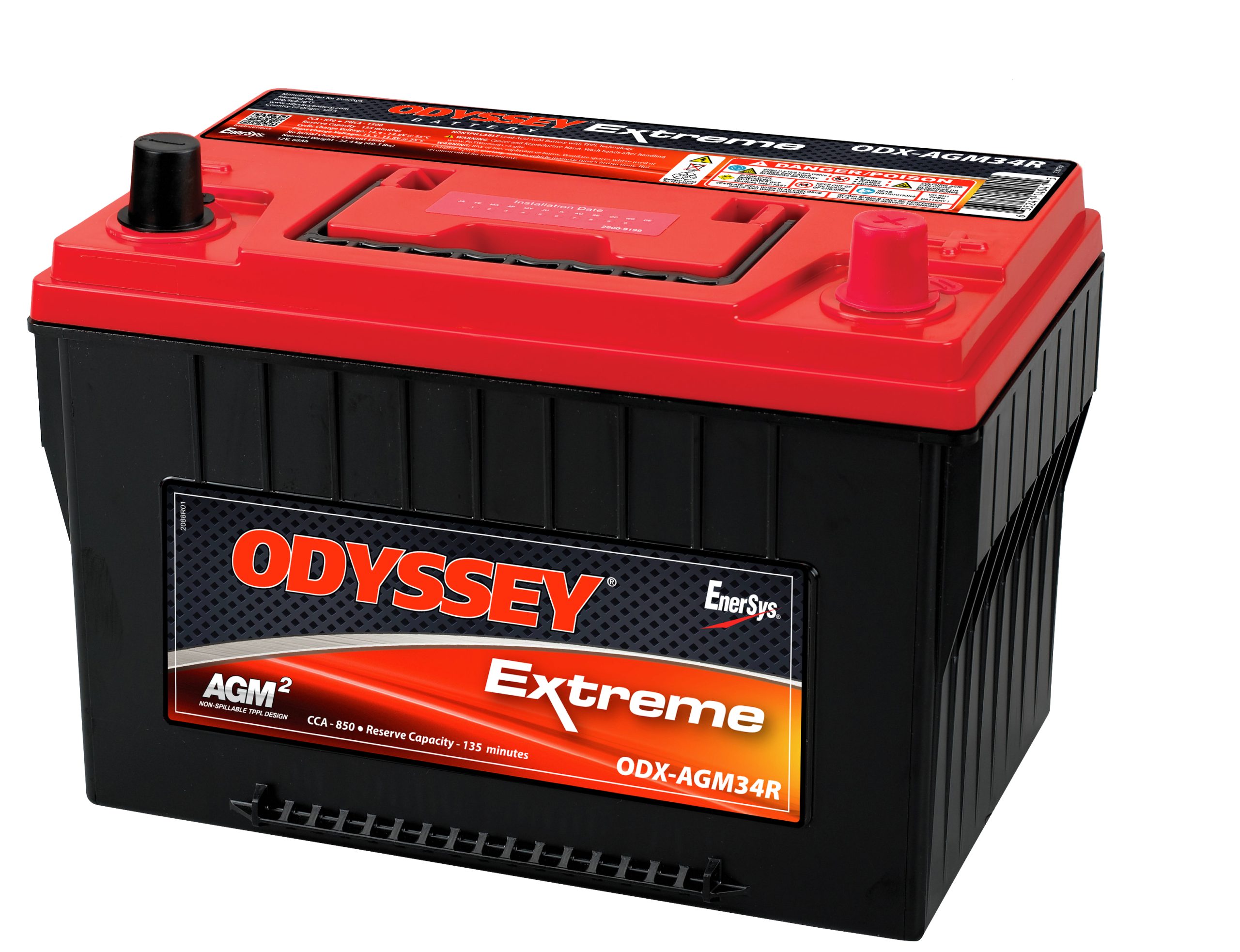

EnerSys Odyssey ODX-AGM34R Lead Acid (AGM-TPPL) Battery

As low as $395.80 each

EnerSys Odyssey Extreme Series ODX-AGM34R 12 Volt / 850 CCA with SAE Post Terminals

Loading...

Description

EnerSys Odyssey Extreme Series ODX-AGM34R 12 Volt / 850 CCA with SAE Post Terminals

Specifications
Battery Store SKU EN-ODX-AGM34RSA
Dimensions 10.9″ (L) x 6.8″ (W) x 7.3″ (H)
Dimensions (mm) 276 mm (L) x 172 mm (W) x 184 mm (H)
Weight 50 lbs (22.5 kgs)

Additional information

Weight 50 lbs
Manufacturer

EnerSys

price-discounts

Each (1 pieces), Box/Case (2 pieces), Pallet Layer (6 pieces), Pallet (24 pieces)

Product Line

Odyssey

Product Series

Extreme Series

Model

ODX-AGM34R

Terminal

SAE Post

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

ODX-AGM34R

Manufacturers SKU

0785-2060

Deprecated Model #

34R-PC1500

Applications
Voltage

12

Capacity (Nominal)

850 CCA

Capacity @20 Hr

68

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA

850

PHCA

1500

Reserve Capacity

135

Chemistry

Lead Acid

Technology

AGM-TPPL

Design Life

8-12 Years

Service Life

3-10 years

Shelf Life

24 Months

Internal Resistance
Maximum Current
Cycles @ 80% Discharge

400

Standby Charge Voltage

13.6 Volts

Cycle Charge Voltage

14.7 Volts

Maximum Charge Current

3.1C

Operating Temp Low (°F)

-40

Operating Temp High (°F)

176

Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)

-40

Operating Temp High (°C)

80

Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

10.9

Width (In)

6.8

Height - Case (In)

7.3

Height - Overall (In)

7.9

Length (mm)

276

Width (mm)

172

Height - Case (mm)

184

Height - Overall (mm)

202

Weight (lb)

50

Weight (kg)

22.5

BCI Group

Group 34R

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
