GS Yuasa FXH190-12IFR SLA (AGM) Battery

SKU: GS-FXH190-12RFR Categories: AGM-Lead Calcium, Brands, Chemistry, FXH Series, FXH190-12, GS Yuasa, Lead Acid Tags: AGM-Lead Calcium, FXH Series, FXH190-12, FXH190-12IFR, GS Yuasa, Lead Acid

GS Yuasa FXH Series FXH190-12IFR 12 Volt / 4508W @ 15 Min with Recessed M6 Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

GS Yuasa FXH Series FXH190-12IFR 12 Volt / 4508W @ 15 Min with Recessed M6 Terminals

Specifications
Battery Store SKU	GS-FXH190-12RFR
Dimensions	” (L) x ” (W) x ” (H)
Dimensions (mm)	mm (L) x mm (W) x mm (H)
Weight	lbs ( kgs)

Additional information

Weight	147.4 lbs
Manufacturer	GS Yuasa
price-discounts
Product Line
Product Series	FXH Series
Model	FXH190-12
Terminal	Recessed M6
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	FXH190-12IFR
Manufacturers SKU	FXH190-12IFR
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	4508W @ 15 Min
Capacity @20 Hr
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life	10 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current
Operating Temp Low (°F)	32
Operating Temp High (°F)	104
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)	0
Operating Temp High (°C)	40
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	23.78
Width (In)	4.84
Height - Case (In)	12.6
Height - Overall (In)	12.6
Length (mm)	604
Width (mm)	123
Height - Case (mm)	320
Height - Overall (mm)	320
Weight (lb)	147.4
Weight (kg)	67
BCI Group
Manufacturers Warranty	24 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet

Similar Products from this Brand

Form, Fit and Function Equivalents

We've found 1 results.

	Image	Description	Weight	Qty in Stock	Price

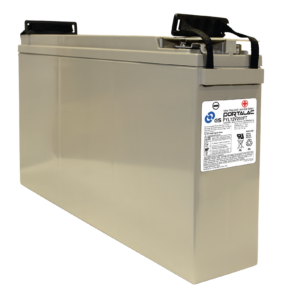

		GS Yuasa PYL Series PYL12V200FT 12 Volt / 200 Ah @8 Hr with Recessed M8 Terminals	147.4 lbs	Out of stock	As low as $1,016.03 each

Showing 1 to 1 of 1 rows
