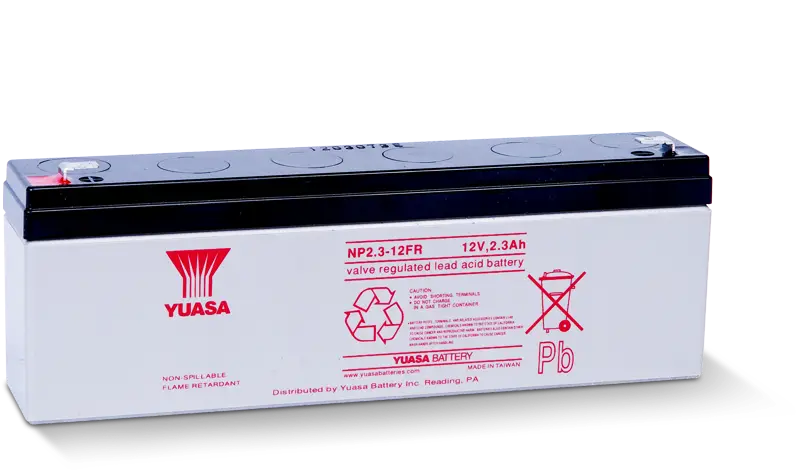

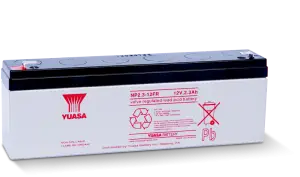

GS Yuasa NP2.3-12FR SLA (AGM) Battery

As low as $14.15 each

GS Yuasa NP Series NP2.3-12FR 12 Volt / 2.3 Ah @20 Hr with F1 (0.187″) Terminals

price-discounts

Each (1 Pieces) - $23.58 each

Box/Case (20 Pieces) - $17.69 each

Pallet Layer (260 Pieces) - $14.74 each

Pallet (1,300 Pieces) - $14.15 each

Description

GS Yuasa NP Series NP2.3-12FR 12 Volt / 2.3 Ah @20 Hr with F1 (0.187″) Terminals

Weight	3.5 lbs
Manufacturer	GS Yuasa
price-discounts	Each (1 Pieces), Box/Case (20 Pieces), Pallet Layer (260 Pieces), Pallet (1,300 Pieces)
Product Line
Product Series	NP Series
Model	NP2.3-12
Terminal	F1 (0.187")
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	NP2.3-12FR
Manufacturers SKU	NP2.3-12FR
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	2.3 Ah @20 Hr
Capacity @20 Hr	2.3
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current
Operating Temp Low (°F)	-5
Operating Temp High (°F)	122
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	7.01
Width (In)	1.34
Height - Case (In)	2.28
Height - Overall (In)	2.52
Length (mm)	178
Width (mm)	34
Height - Case (mm)	58
Height - Overall (mm)	64
Weight (lb)	2.1
Weight (kg)	0.94
BCI Group
Manufacturers Warranty	24 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
