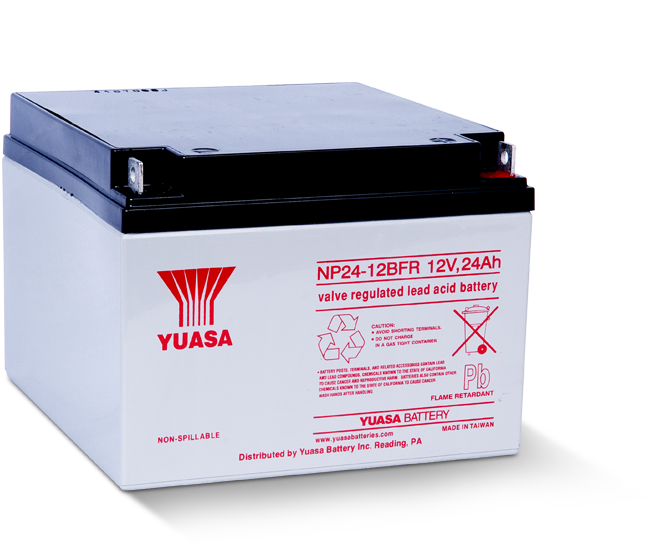

GS Yuasa NP24-12BFR SLA (AGM) Battery
As low as $72.50 each
GS Yuasa NP Series NP24-12BFR 12 Volt / 24 Ah @20 Hr with Nut & Bolt Terminals
Loading...
Description
GS Yuasa NP Series NP24-12BFR 12 Volt / 24 Ah @20 Hr with Nut & Bolt Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-NP24-12NBFR |
| Dimensions | 6.54″ (L) x 6.89″ (W) x 4.92″ (H) |
| Dimensions (mm) | 166 mm (L) x 175 mm (W) x 125 mm (H) |
| Weight | 19.0 lbs (8.65 kgs) |
Additional information
| Weight | 19.0 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | Each (1 Pieces), Box/Case (2 Pieces), Pallet Layer (20 Pieces), Pallet (80 Pieces) |
| Product Line | |
| Product Series | NP Series |
| Model | NP24-12 |
| Terminal | Nut & Bolt |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NP24-12BFR |
| Manufacturers SKU | NP24-12BFR |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 24 Ah @20 Hr |
| Capacity @20 Hr | 24 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 6.54 |
| Width (In) | 6.89 |
| Height - Case (In) | 4.92 |
| Height - Overall (In) | 4.92 |
| Length (mm) | 166 |
| Width (mm) | 175 |
| Height - Case (mm) | 125 |
| Height - Overall (mm) | 125 |
| Weight (lb) | 19.0 |
| Weight (kg) | 8.65 |
| BCI Group | |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
