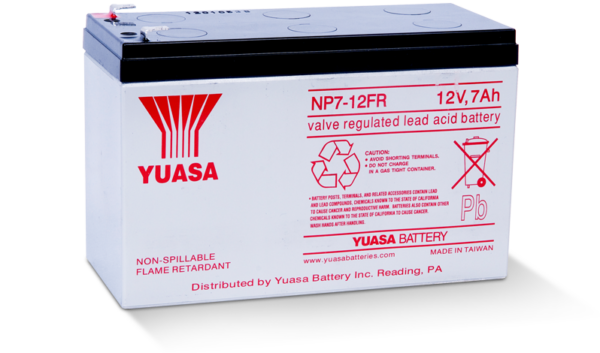

GS Yuasa NP7-12FR F2 SLA (AGM) Battery
As low as $19.01 each
GS Yuasa NP Series NP7-12FR F2 12 Volt / 7 Ah @20 Hr with F2 (0.250″) Terminals
Loading...
Description
GS Yuasa NP Series NP7-12FR F2 12 Volt / 7 Ah @20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-NP7-12F2FR |
| Dimensions | 5.94″ (L) x 2.56″ (W) x 3.62″ (H) |
| Dimensions (mm) | 151 mm (L) x 65 mm (W) x 92 mm (H) |
| Weight | 5.5 lbs (2.5 kgs) |
Additional information
| Weight | 5.5 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | Each (1 Pieces), Box/Case (8 Pieces), Pallet Layer (72 Pieces), Pallet (360 Pieces) |
| Product Line | |
| Product Series | NP Series |
| Model | NP7-12 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | NP7-12FR F2 |
| Manufacturers SKU | NP7-12FR F2 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 7 Ah @20 Hr |
| Capacity @20 Hr | 7 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 3-5 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 Volts |
| Cycle Charge Voltage | 14.4 to 15.0 Volts |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 3.62 |
| Height - Overall (In) | 3.84 |
| Length (mm) | 151 |
| Width (mm) | 65 |
| Height - Case (mm) | 92 |
| Height - Overall (mm) | 98 |
| Weight (lb) | 5.5 |
| Weight (kg) | 2.5 |
| BCI Group | |
| Manufacturers Warranty | 24 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
