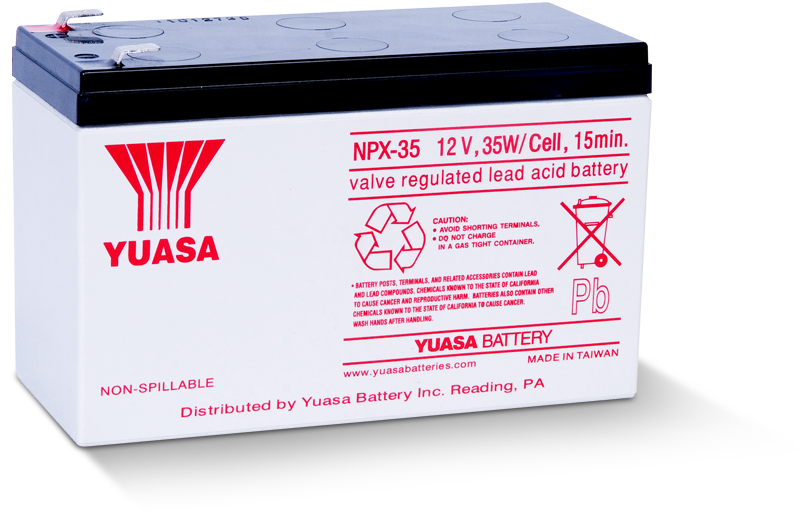

GS Yuasa NPX-35FR F2 SLA (AGM) Battery

Description

GS Yuasa NPX Series NPX-35FR F2 12 Volt / 8.5 Ah @20 Hr with F2 (0.250″) Terminals

Specifications
Battery Store SKU	GS-NPX-35F2FR
Dimensions	” (L) x ” (W) x ” (H)
Dimensions (mm)	mm (L) x mm (W) x mm (H)
Weight	lbs ( kgs)

Additional information

Weight	5.8 lbs
Manufacturer	GS Yuasa
price-discounts	Each (1 pieces), Box/Case (10 pieces), Pallet Layer (90 pieces), Pallet (360 pieces)
Product Line
Product Series	NPX Series
Model	NPX-35
Terminal	F2 (0.250")
Terminal Layout
Case Material	Flame Retardant UL94-V0
UPC Code
Manufacturers Model #	NPX-35FR F2
Manufacturers SKU	NPX-35FR F2
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	35 W @ 15 min
Capacity @20 Hr	8.5 Ah @20 Hr
Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage	13.5 to 13.8 Volts
Cycle Charge Voltage	14.4 to 15.0 Volts
Maximum Charge Current
Operating Temp Low (°F)	-5
Operating Temp High (°F)	122
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)	5.94
Width (In)	2.56
Height - Case (In)	3.62
Height - Overall (In)	3.84
Length (mm)	151
Width (mm)	65
Height - Case (mm)	92
Height - Overall (mm)	98
Weight (lb)	5.8
Weight (kg)	2.65
BCI Group
Manufacturers Warranty	24 Months
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized

Description	Weight	Qty in Stock	Price
GS Yuasa PXL Series PXL12090A 12 Volt / 7.2 Ah @20 Hr with F2 (0.250") Terminals	lbs	5249 in stock	As low as $37.50 each
EnerSys DataSafe NPX Series NPX-35TFR 12 Volt / 8.0 Ah @20 Hr with F2 (0.250") Terminals	6.05 lbs	1028 in stock	As low as $24.52 each
CSB HRL1234WF2FR HRL Series 12 Volt / 9.0 Ah @20 Hr with F2 (0.250") Terminals and Flame Retardant UL94-V0 Case	5.9 lbs	156 in stock	As low as $21.95 each
CSB HR1234WF2FR HR Series 12 Volt / 9.0 Ah @20 Hr with F2 (0.250") Terminals and Flame Retardant UL94-V0 Case	5.5 lbs	121 in stock	As low as $21.36 each
PowerSonic PSH Series PSH-1280FR 12 Volt / 36 W @15 Min Lead Acid Battery with F2 (0.250") Terminals / Flame Retardant UL94-V0 Case	5.8 lbs	57 in stock	As low as $18.12 each
Bright Way UPS Series BW HR 12-36W FR 12 Volt / 9.0 Ah @20 Hr with F2 (0.250") Terminals	5.9 lbs	Out of stock	We can help find the Bright Way UPS Series BW HR 12-36W FR 12 Volt / 9.0 Ah @20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
Panasonic Rechargeable UP-VW Series UP-VW1245P1 12 Volt / 45 W @10 Min Lead Acid Battery with F2 (0.250") Terminals	5.6 lbs	Out of stock	We can help find the Panasonic Rechargeable UP-VW Series UP-VW1245P1 12 Volt / 45 W @10 Min Lead Acid Battery with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
GS Yuasa PXL Series PXL12072 12 Volt / 7.2 Ah @20 Hr with F2 (0.250") Terminals	6.1 lbs	Out of stock	We can help find the GS Yuasa PXL Series PXL12072 12 Volt / 7.2 Ah @20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
Panasonic Rechargeable LC-P Series LC-P127R2P1 12 Volt / 7.2 Ah @20 Hr Lead Acid Battery with F2 (0.250") Terminals	5.4 lbs	Out of stock	We can help find the Panasonic Rechargeable LC-P Series LC-P127R2P1 12 Volt / 7.2 Ah @20 Hr Lead Acid Battery with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
MK Battery High Rate Series ES7-12 F2FR 12 Volt / 7.2 Ah @20 Hr with F2 (0.250") Terminals	lbs	Out of stock	We can help find the MK Battery High Rate Series ES7-12 F2FR 12 Volt / 7.2 Ah @20 Hr with F2 (0.250") Terminals for you Your Name Your Email Allow substitutions YesNo Quantity Battery Store SKU Product Description Additional Information
