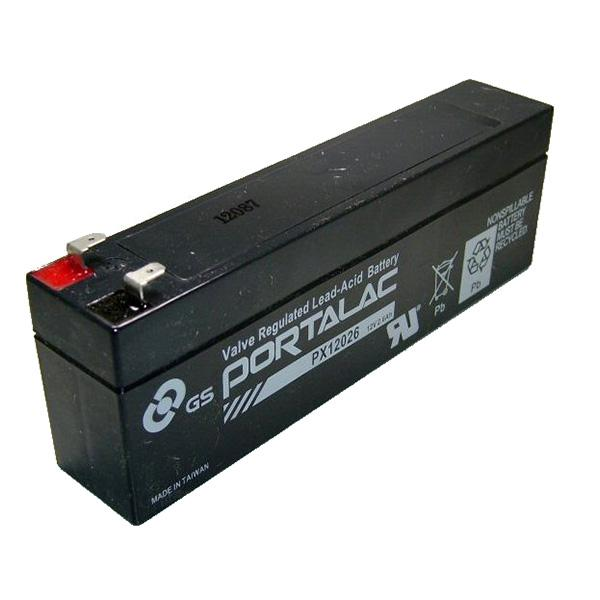

GS Yuasa PX12026 SLA (AGM) Battery
GS Yuasa PX Series PX12026 12 Volt / 2.6 Ah @20 Hr with F1 (0.187″) Terminals
Loading...
Description
GS Yuasa PX Series PX12026 12 Volt / 2.6 Ah @20 Hr with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-PX12026F1 |
| Dimensions | 7.01″ (L) x 1.34″ (W) x 2.36″ (H) |
| Dimensions (mm) | 178 mm (L) x 34 mm (W) x 60 mm (H) |
| Weight | 2.2 lbs (1 kgs) |
Additional information
| Weight | 2.2 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | |
| Product Line | |
| Product Series | PX Series |
| Model | PX12026 |
| Terminal | F1 (0.187") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | PX12026 |
| Manufacturers SKU | PX12026 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 2.6 Ah @20 Hr |
| Capacity @20 Hr | |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 3+ Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.65 V (Float) |
| Cycle Charge Voltage | 14.7 V (Fast) |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 7.01 |
| Width (In) | 1.34 |
| Height - Case (In) | 2.36 |
| Height - Overall (In) | 2.56 |
| Length (mm) | 178 |
| Width (mm) | 34 |
| Height - Case (mm) | 60 |
| Height - Overall (mm) | 65 |
| Weight (lb) | 2.2 |
| Weight (kg) | 1 |
| BCI Group | |
| Manufacturers Warranty | 12 Month |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
