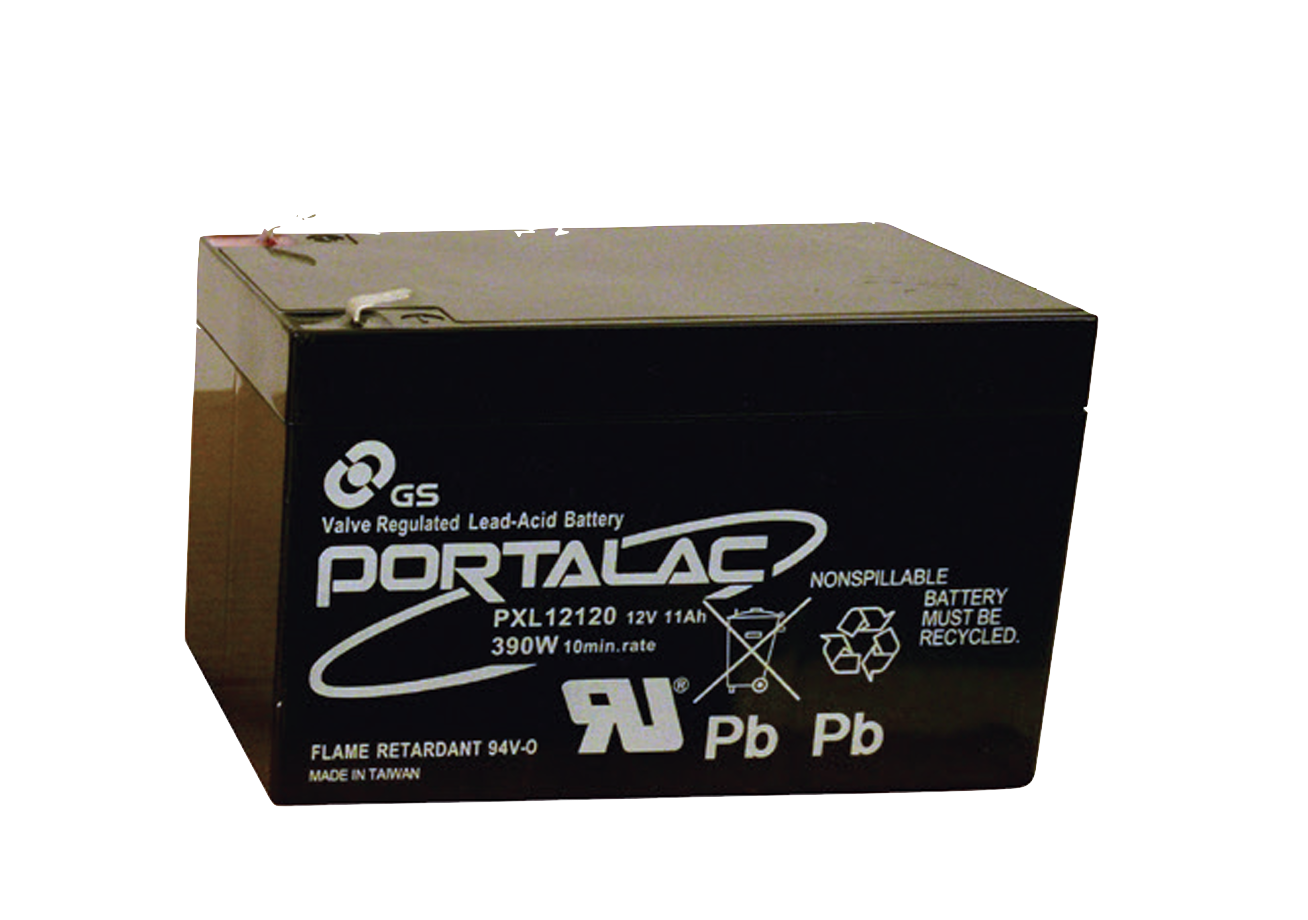

GS Yuasa PXL12120 SLA (AGM) Battery
As low as $87.22 each
GS Yuasa PXL Series PXL12120 12 Volt / 12 Ah @20 Hr with F2 (0.250″) Terminals
Loading...
Description
GS Yuasa PXL Series PXL12120 12 Volt / 12 Ah @20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-PXL12120F2FR |
| Dimensions | 5.94″ (L) x 3.86″ (W) x 3.7″ (H) |
| Dimensions (mm) | 151 mm (L) x 98 mm (W) x 94 mm (H) |
| Weight | 9.5 lbs (4.3 kgs) |
Additional information
| Weight | 9.5 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | Each (1 Pieces) |
| Product Line | |
| Product Series | PXL Series |
| Model | PXL12120 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | PXL12120 |
| Manufacturers SKU | PXL12120 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 12 Ah @20 Hr |
| Capacity @20 Hr | 12 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 6+ Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.65 V (Float) |
| Cycle Charge Voltage | 14.7 V (Fast) |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 5.94 |
| Width (In) | 3.86 |
| Height - Case (In) | 3.7 |
| Height - Overall (In) | 3.98 |
| Length (mm) | 151 |
| Width (mm) | 98 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 101 |
| Weight (lb) | 9.5 |
| Weight (kg) | 4.3 |
| BCI Group | |
| Manufacturers Warranty | 12 Month |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
