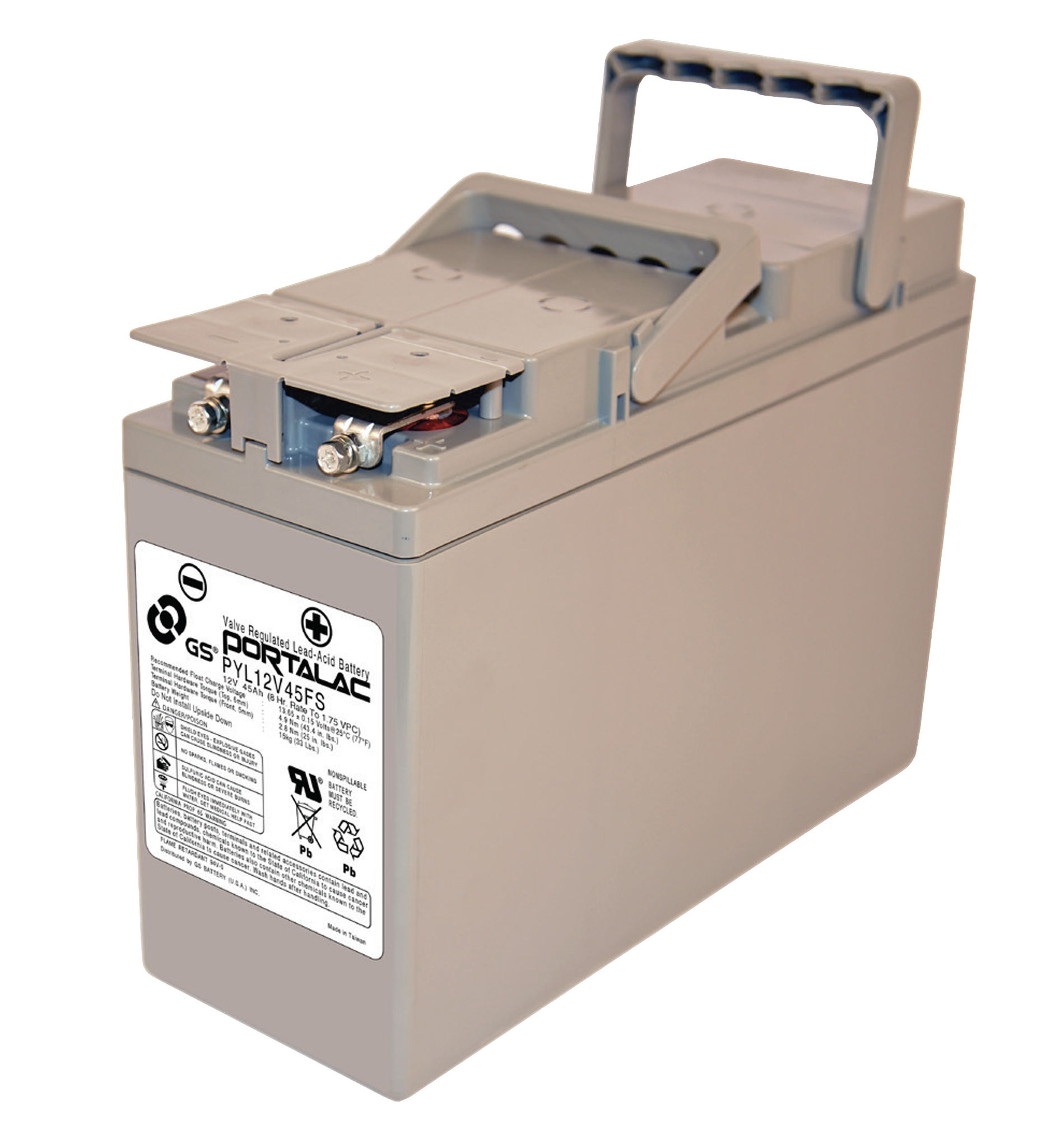

GS Yuasa PYL12V45FS SLA (AGM) Battery
GS Yuasa PYL Series PYL12V45FS 12 Volt / 45 Ah @8 Hr with Nut & Bolt (M5) Terminals
Loading...
Description
GS Yuasa PYL Series PYL12V45FS 12 Volt / 45 Ah @8 Hr with Nut & Bolt (M5) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | GS-PYL12V45FSNBFR |
| Dimensions | 10.94″ (L) x 4.06″ (W) x 7.76″ (H) |
| Dimensions (mm) | 278 mm (L) x 103 mm (W) x 197 mm (H) |
| Weight | 33.0 lbs (15 kgs) |
Additional information
| Weight | 33 lbs |
|---|---|
| Manufacturer | GS Yuasa |
| price-discounts | |
| Product Line | |
| Product Series | PYL Series |
| Model | PYL12V45FS |
| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | PYL12V45FS |
| Manufacturers SKU | PYL12V45FS |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 45 Ah @8 Hr |
| Capacity @20 Hr | |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | 10 Years |
| Shelf Life | 6 Months |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | |
| Cycle Charge Voltage | |
| Maximum Charge Current | |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 10.94 |
| Width (In) | 4.06 |
| Height - Case (In) | 7.76 |
| Height - Overall (In) | 7.76 |
| Length (mm) | 278 |
| Width (mm) | 103 |
| Height - Case (mm) | 197 |
| Height - Overall (mm) | 197 |
| Weight (lb) | 33.0 |
| Weight (kg) | 15 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
