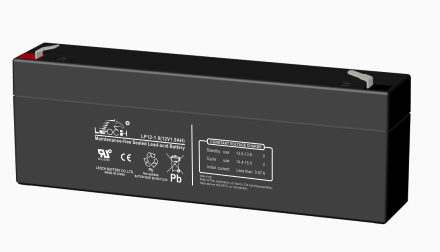

Leoch LP12-1.9 SLA (AGM) Battery

Leoch LP12-1.9 SLA (AGM) Battery

SKU: LE-LP12-1.9F1 Categories: AGM-Lead Calcium, Brands, Chemistry, Lead Acid, Leoch, LP Series, LP12-1.9 Tags: AGM-Lead Calcium, Lead Acid, Leoch, LP Series, LP12-1.9

Leoch LP Series LP12-1.9 12 Volt / 1.9 Ah @20 Hr Battery with F1 (0.187″) Terminals

The BSI Pricing Advantage

Add To Wishlist

Description

Leoch LP Series LP12-1.9 12 Volt / 1.9 Ah @20 Hr Battery with F1 (0.187″) Terminals

Specifications
Battery Store SKU	LE-LP12-1.9F1
Dimensions	7.01″ (L) x 1.38″ (W) x 2.36″ (H)
Dimensions (mm)	178 mm (L) x 35 mm (W) x 60 mm (H)
Weight	1.9 lbs (0.85 kgs)

Additional information

Weight	1.9 lbs
Manufacturer	Leoch
price-discounts
Product Line
Product Series	LP Series
Model	LP12-1.9
Terminal	F1 (0.187")
Terminal Layout
Case Material	ABS Plastic
UPC Code
Manufacturers Model #	LP12-1.9
Manufacturers SKU	LP12-1.9
Deprecated Model #
Applications
Voltage	12
Capacity (Nominal)	1.9 Ah @20 Hr
Capacity @20 Hr	1.9
Capacity @10 Hr	1.8
Capacity @1 Hr	1.22
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry	Lead Acid
Technology	AGM-Lead Calcium
Design Life	5 Years
Service Life	3-5 Years
Shelf Life	6 Months
Internal Resistance	85 mOhms
Maximum Current	29 Amps
Cycles @ 80% Discharge
Standby Charge Voltage	13.5-13.8 V @ 25C
Cycle Charge Voltage	14.4-15.0 V @ 25C
Maximum Charge Current	C/3
Operating Temp Low (°F)	5
Operating Temp High (°F)	122
Storage Temp Low (°F)	5
Storage Temp High (°F)	104
Operating Temp Low (°C)	-15
Operating Temp High (°C)	50
Storage Temp Low (°C)	-15
Storage Temp High (°C)	40
Length (In)	7.01
Width (In)	1.38
Height - Case (In)	2.36
Height - Overall (In)	2.6
Length (mm)	178
Width (mm)	35
Height - Case (mm)	60
Height - Overall (mm)	66
Weight (lb)	1.9
Weight (kg)	0.85
BCI Group
Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
